Lower part junction box, with fastening element | 10 | IP30 | Light grey; RAL 7035

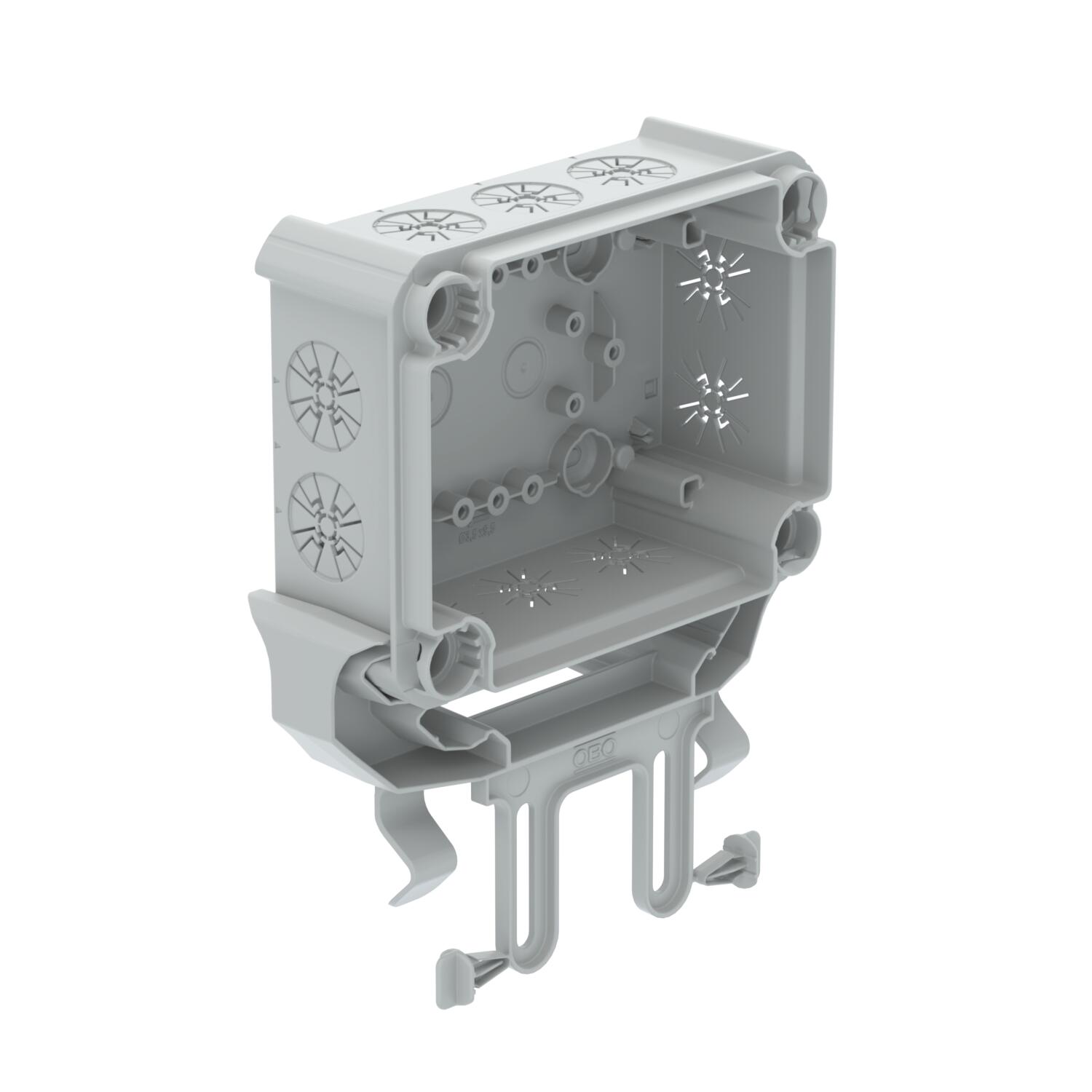

Lower part junction box, with fastening element

Item no. 2006010 | EAN 4012197420895

Item no. / Types

No. of entries

Protection rating	IP30

Colour

Product description

Product description

Pluggable lower part of junction box with universal fastening element for mounting on cable trays Unequipped, without cover. Halogen-free material and UV-resistant. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,5595 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
Cover	Without
Cover fastening	Not applicable

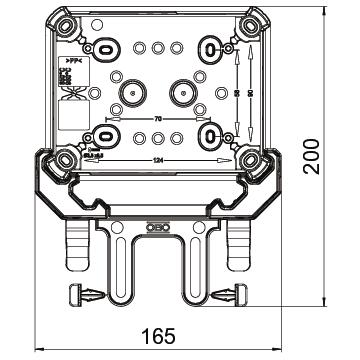

Dimension	201x165x67
Entry from rear	yes
Equipment	Without
Explosion-tested version	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	67 mm
Junction box cover version	Without
Length	201 mm
Maintain electrical functions	Without
Material	Polypropylene, fibreglass reinforced

Measured insulation voltage Vi	500 V
Mounting type	Wall/ceiling mounting
No. of entries	10
Nominal cross-section, min.	10 mm²
Nominal voltage	500 V
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Sealable	no
Shape	Rectangular
Transparent lid	no
Type of entry	Cable
Type of housing penetration	Pre-marking
Weatherproof	no
Width	165 mm
with lid	no
With screening	yes

All types

All types

Types	No. of entries	Protection rating	Colour	Item no.	Quantity	SSU
UT01+SB BE	10	IP30	Light grey; RAL 7035	2006010	piece	1 piece
UT01	10	IP30	Light grey; RAL 7035	2006024	piece	40 piece
UT01 SW	-	IP30	Graphite black; RAL 9011	2006216	piece	40 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Separating element juncion box	SB TR	2006156	piece	5 piece
Pluggable cover, unequipped	D01 L	2006040	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060	piece	1 piece
Pluggable cover, unequipped	D02 L	2006080	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094	piece	1 piece
Pluggable cover, equipped, OBO WINSTA MIDI	D02 2x5p DALI WG	2006096	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098	piece	1 piece
Pluggable cover, equipped, Modul 45	D03 2MSD WS	2006116	piece	1 piece
Junction box T100, 2 Modul 45 sockets in cover, 1-pin	T 100 2MSD WS	2007821	piece	1 piece
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825	piece	1 piece
Pluggable cover, unequipped	D04 L	2006130	piece	1 piece
DATA module, pluggable cover	SB DT1	2006180	piece	1 piece
DATA module, pluggable cover	SB DT2	2006182	piece	1 piece
DATA module, pluggable cover	SB DT3	2006184	piece	1 piece
DATA module, pluggable cover	SB DT4	2006186	piece	1 piece
DATA module, pluggable cover	SB DT5	2006188	piece	1 piece
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805	piece	1 piece
Fastening element for junction boxes	SB BE	2006150	piece	10 piece
