Perforated strip for PV free-standing system 50 | | 13 | zinc

Delivery lead time upon request

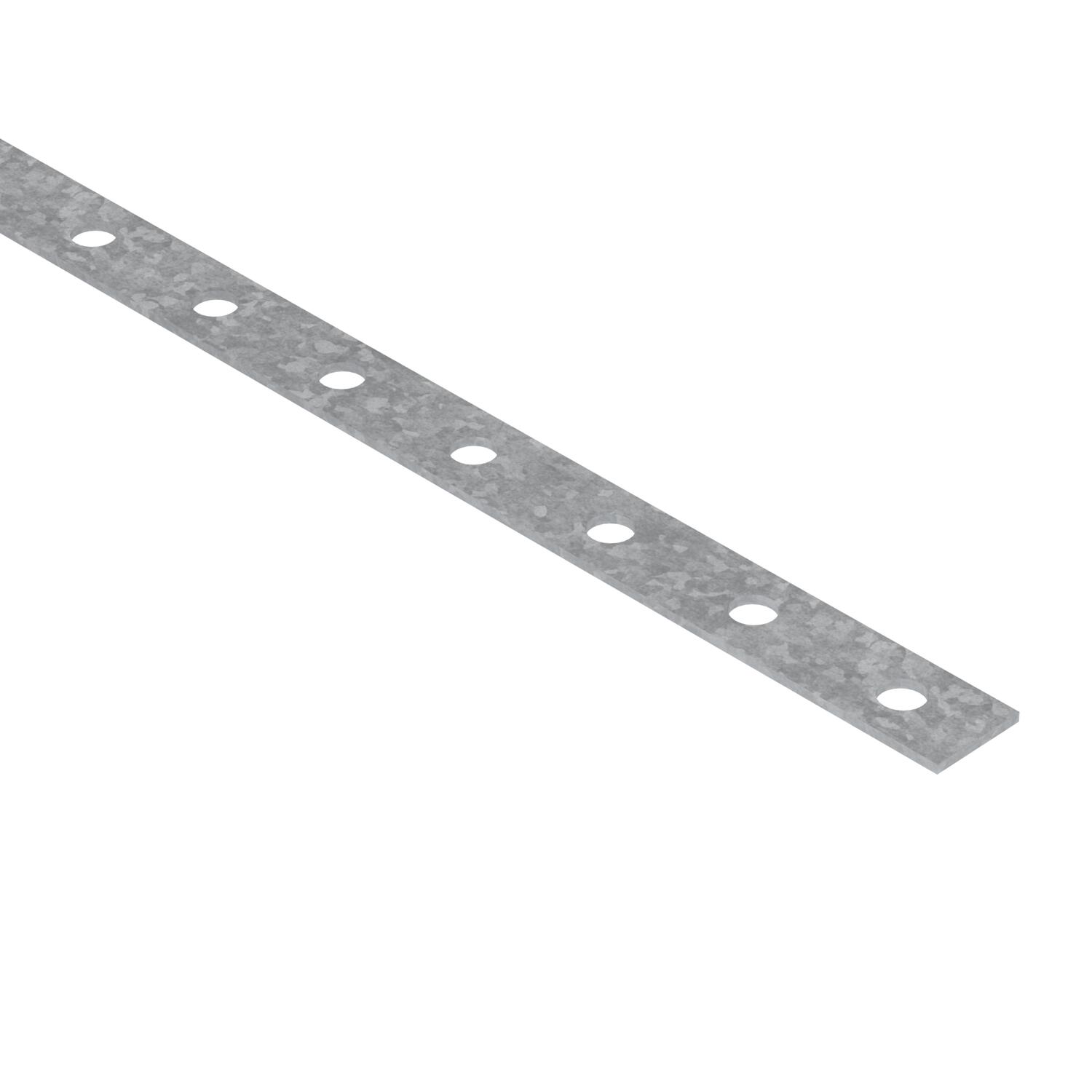

Perforated strip for PV free-standing system

Item no. 5901950 | EAN 4012197435684

Item no. / Types	5901950 / LB FT

Dimension A	50 mm

Hole diameter	13 mm

Colour	zinc

Product description

Product description

Perforated strip for cross-connecting the rear supports of pre-mounted supports type VT 10/25/30. For stiffening PV mounting systems free-standing. Fastening with screw set for perforated strip type SVLB. Fastening material not included in scope of delivery.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	2,9946 kg CO2e / 1 Piece
Colour	zinc

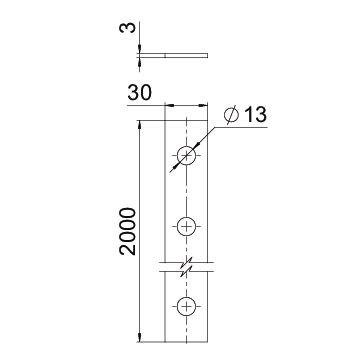

Dimension	30x2000x3
Dimension A	50 mm
Height	3 mm
Hole diameter	13 mm
In the holder	no
Length	2000 mm

Material	Steel
Perforation	Round
Surface	Hot-dip galvanised
Thickness	3 mm
Type of band	Straight
Version for	Perforated
Width	30 mm
With perforation	yes

All types

All types

Types	Dimension A	Hole diameter	Colour	Item no.	Quantity	SSU
LB FT	50 mm	13 mm	zinc	5901950	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Pre-mounted supports for PV module mounting, free-standing system	VT 10S FT	5901550	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 10M FT	5901552	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 10L FT	5901554	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 25S FT	5901556	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 25M FT	5901558	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 25L FT	5901560	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 30S FT	5901562	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 30M FT	5901564	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 30L FT	5901566	piece	1 piece
