Delivery lead time upon request

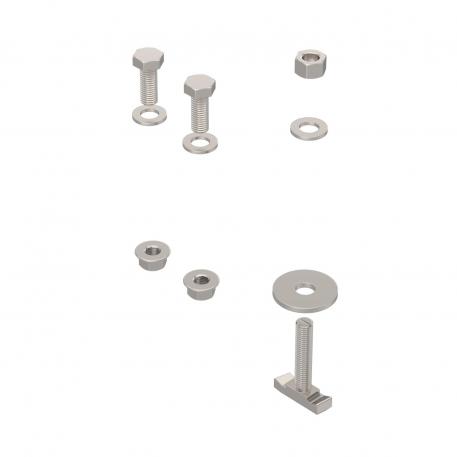

Screw set for perforated strip
Item no. 5901960 | EAN 4012197436391
- Product description
-

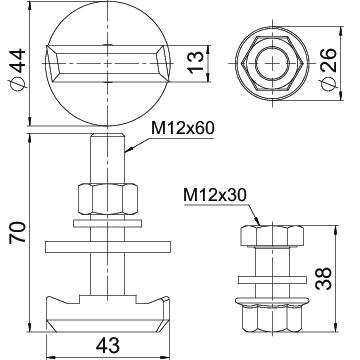

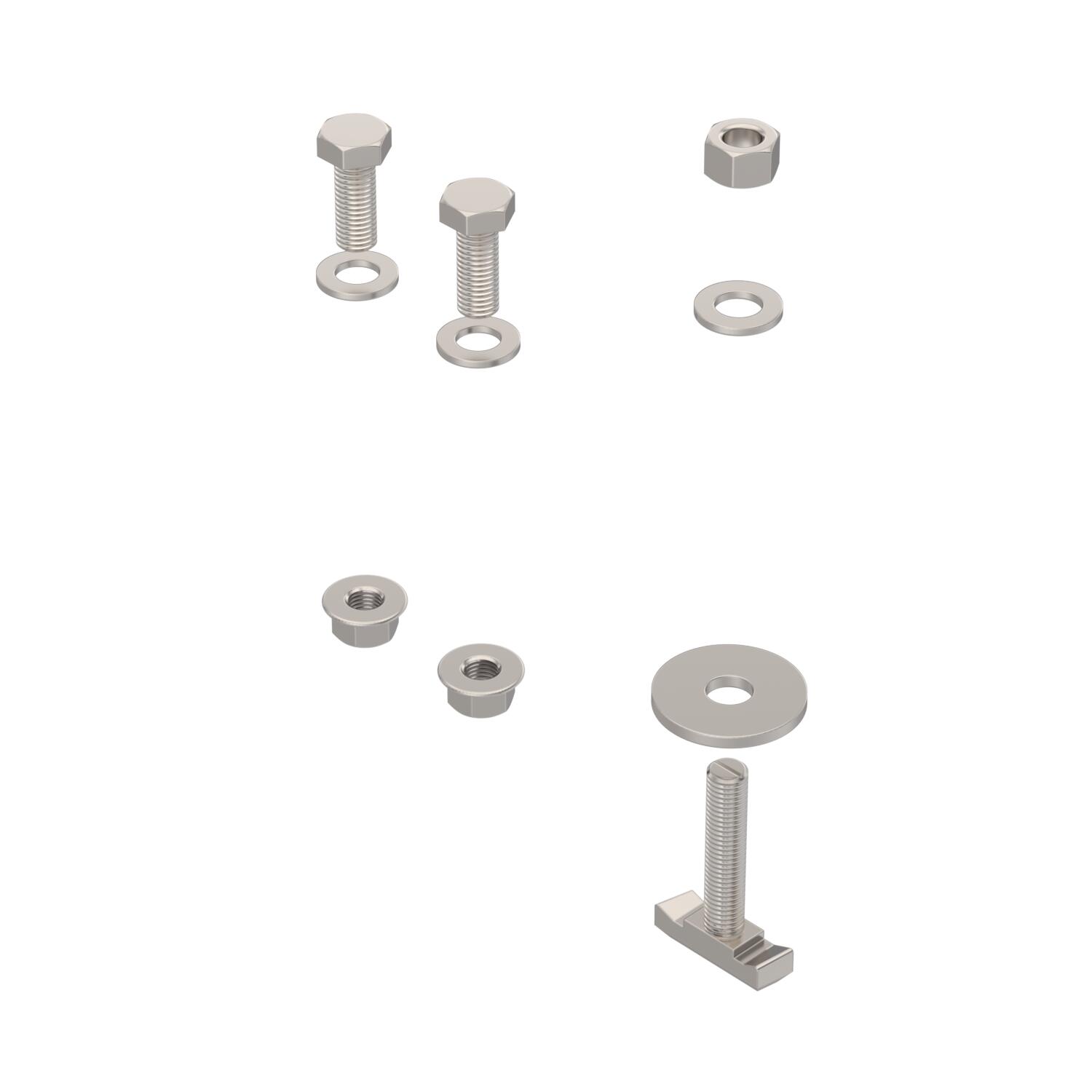

Product descriptionScrew set including hexagonal screws M12, hexagonal nuts with flange M12, hook-head bolt and washers. For the fastening of perforated straps, type LB FT, on rear supports on pre-assembled beams of PV open-field mounting systems.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 1,1789 kg CO2e / 1 Piece Colour stainless steel Full thread yes Left thread no Material Stainless steel Screw system Hexagonal Self-locking no Thread metric 12 Thread type Metric With nut yes With washer yes - All types
-
System accessories
Products Types Item no. Quantity SSU
Pre-mounted supports for PV module mounting, free-standing system
VT 10S FT 5901550 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 10M FT 5901552 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 10L FT 5901554 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 25S FT 5901556 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 25M FT 5901558 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 25L FT 5901560 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 30S FT 5901562 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 30M FT 5901564 1 piece
Pre-mounted supports for PV module mounting, free-standing system
VT 30L FT 5901566 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Perforated strip for PV free-standing system
LB FT 5901950 1 piece - Downloads
-
Data sheet SVLB / 5901960 , 0.14MB , pdfMounting instructions PV-Montagesysteme Magic PV Field , 3.72MB , pdfNo invitation to tender text is available for this product.
