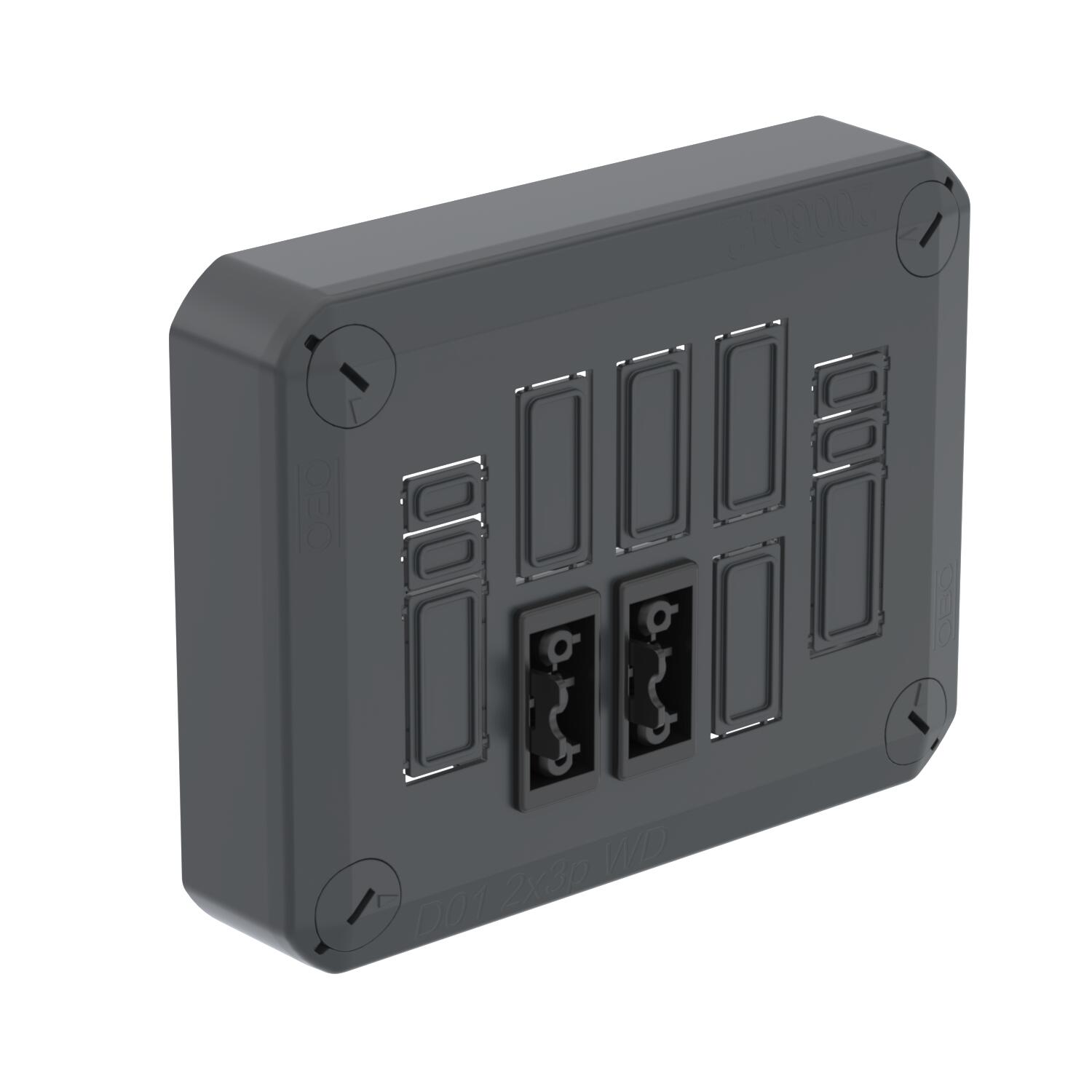

Pluggable cover, equipped, OBO GST18

Item no. 2006234 | EAN 4012197464103

Product description
Product description
Pluggable cover to close junction boxes, equipped with 2 to 6 Wieland GST18 connector systems, prewired with lever plug-in connector With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Protection rating IP 30
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Colour Graphite black; RAL 9011

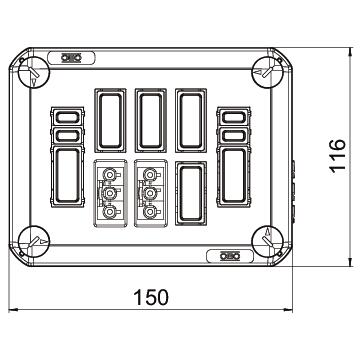

Dimension 150x116x60
Fastening type Screw fastening
Height 60 mm
Length 150 mm
Material Polypropylene
Protection rating IP30
Shape Rectangular
Version, concealed and cavity wall cover Suitable for snap-in connector (manufacturer specific)
Width 116 mm
All types

All types

Types Number of 3-pole sockets Number of 4-pole sockets Number of 5-pole sockets Item no. Quantity SSU
D01 2x3p WD 2 - - 2006042
1 piece
D01 2x3p WD SW - - - 2006234
1 piece
D01 2x3p WD(1+1) 2 - - 2006044
1 piece
D01 3x3p WD 3 - - 2006046
1 piece
D01 3x3p WD SW - - - 2006238
1 piece
D01 4x3p WD 4 - - 2006048
1 piece
D01 4x3p WD SW - - - 2006242
1 piece
D01 4x3p WD(2+2) 4 - - 2006050
1 piece
D01 4x3p WD2 SW - - - 2006246
1 piece
D01 6x3p WD 6 - - 2006058
1 piece
D01 6x3p WD(4+2) 6 - - 2006060
1 piece
D02 3x3p+1x4p WD 3 1 - 2006082
1 piece
D02 2x4p WD - 2 - 2006084
1 piece
D02 2x5p WD - - 2 2006086
1 piece
D02 2x5p DALI SW - - - 2006258
1 piece
D02 4x5p WD - - 4 2006088
1 piece
