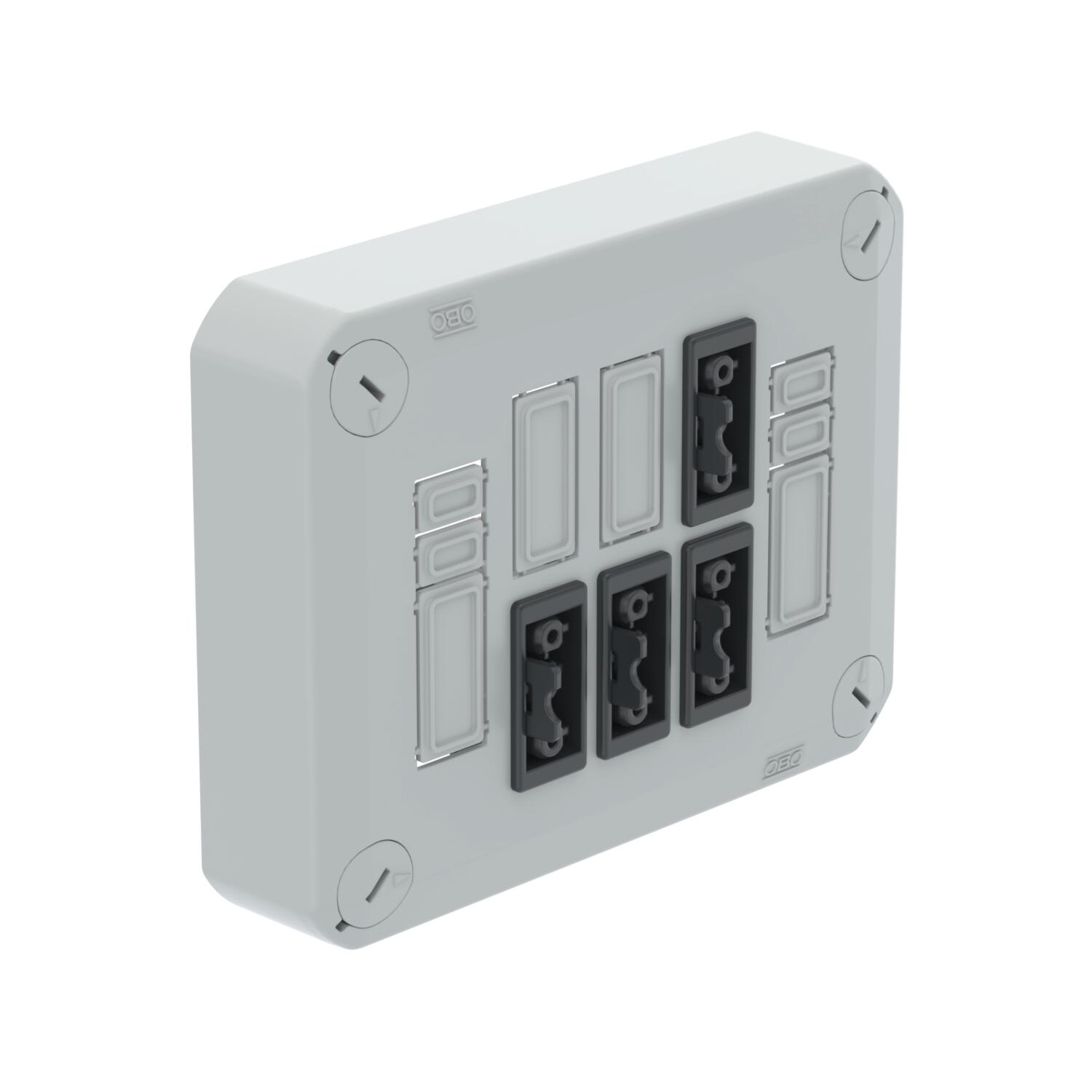

Pluggable cover, equipped, OBO GST18

Item no. 2006048 | EAN 4012197419608

Product description
Product description
Pluggable cover for the closing of junction boxes, equipped with 4 Wieland GST18 plug systems, prewired with lever plug-in connector With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Protection rating IP 30
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,3127 kg CO2e / 1 Piece
Colour Light grey; RAL 7035

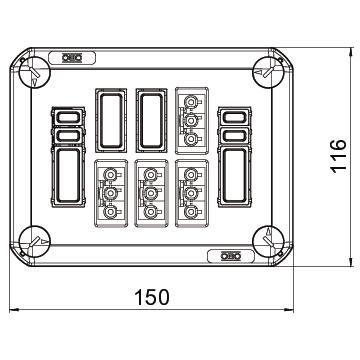

Dimension 150x116x60
Fastening type Screw fastening
Halogen-free yes
Height 60 mm
Length 150 mm
Material Polypropylene
Number of 3-pole sockets 4
Protection rating IP30
Shape Rectangular
Version, concealed and cavity wall cover Suitable for snap-in connector (manufacturer specific)
Width 116 mm
All types

All types

Types Number of 3-pole sockets Number of 4-pole sockets Number of 5-pole sockets Item no. Quantity SSU
D01 2x3p WD 2 - - 2006042
1 piece
D01 2x3p WD(1+1) 2 - - 2006044
1 piece
D01 3x3p WD 3 - - 2006046
1 piece
D01 4x3p WD 4 - - 2006048
1 piece
D01 4x3p WD(2+2) 4 - - 2006050
1 piece
D01 6x3p WD 6 - - 2006058
1 piece
D01 6x3p WD(4+2) 6 - - 2006060
1 piece
D02 3x3p+1x4p WD 3 1 - 2006082
1 piece
D02 2x4p WD - 2 - 2006084
1 piece
D02 2x5p WD - - 2 2006086
1 piece
D02 4x5p WD - - 4 2006088
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Lower part junction box, with fastening element Lower part junction box, with fastening element UT01+SB BE 2006010
1 piece
T 100 junction box, with strain relief entries IP 31 T 100 junction box, with strain relief entries IP 31 T 100 ZE IP30 2007805
1 piece
Fastening element for junction boxes Fastening element for junction boxes SB BE 2006150
10 piece
Separating element juncion box Separating element juncion box SB TR 2006156
5 piece
Pluggable cover, unequipped Pluggable cover, unequipped D01 L 2006040
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 2x3p WD 2006042
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 2x3p WD(1+1) 2006044
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 3x3p WD 2006046
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 4x3p WD(2+2) 2006050
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 6x3p WD 2006058
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 6x3p WD(4+2) 2006060
1 piece
Pluggable cover, unequipped Pluggable cover, unequipped D02 L 2006080
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 3x3p+1x4p WD 2006082
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 2x4p WD 2006084
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 2x5p WD 2006086
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 4x5p WD 2006088
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 4x5p DALI WD 2006094
1 piece
Pluggable cover, equipped, OBO WINSTA MIDI Pluggable cover, equipped, OBO WINSTA MIDI D02 2x5p DALI WG 2006096
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 3x5p DALI WD 2006098
1 piece
Pluggable cover, equipped, Modul 45 Pluggable cover, equipped, Modul 45 D03 2MSD WS 2006116
1 piece
Junction box T100, 2 Modul 45 sockets in cover, 1-pin Junction box T100, 2 Modul 45 sockets in cover, 1-pin T 100 2MSD WS 2007821
1 piece
Junction box T100, 4 Modul 45 sockets in cover, 2-pin Junction box T100, 4 Modul 45 sockets in cover, 2-pin T 100 4MSD WS 2007825
1 piece
Pluggable cover, unequipped Pluggable cover, unequipped D04 L 2006130
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT1 2006180
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT2 2006182
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT3 2006184
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT4 2006186
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT5 2006188
1 piece
