Pluggable cover, unequipped | | |
morepic-1 morepic-2

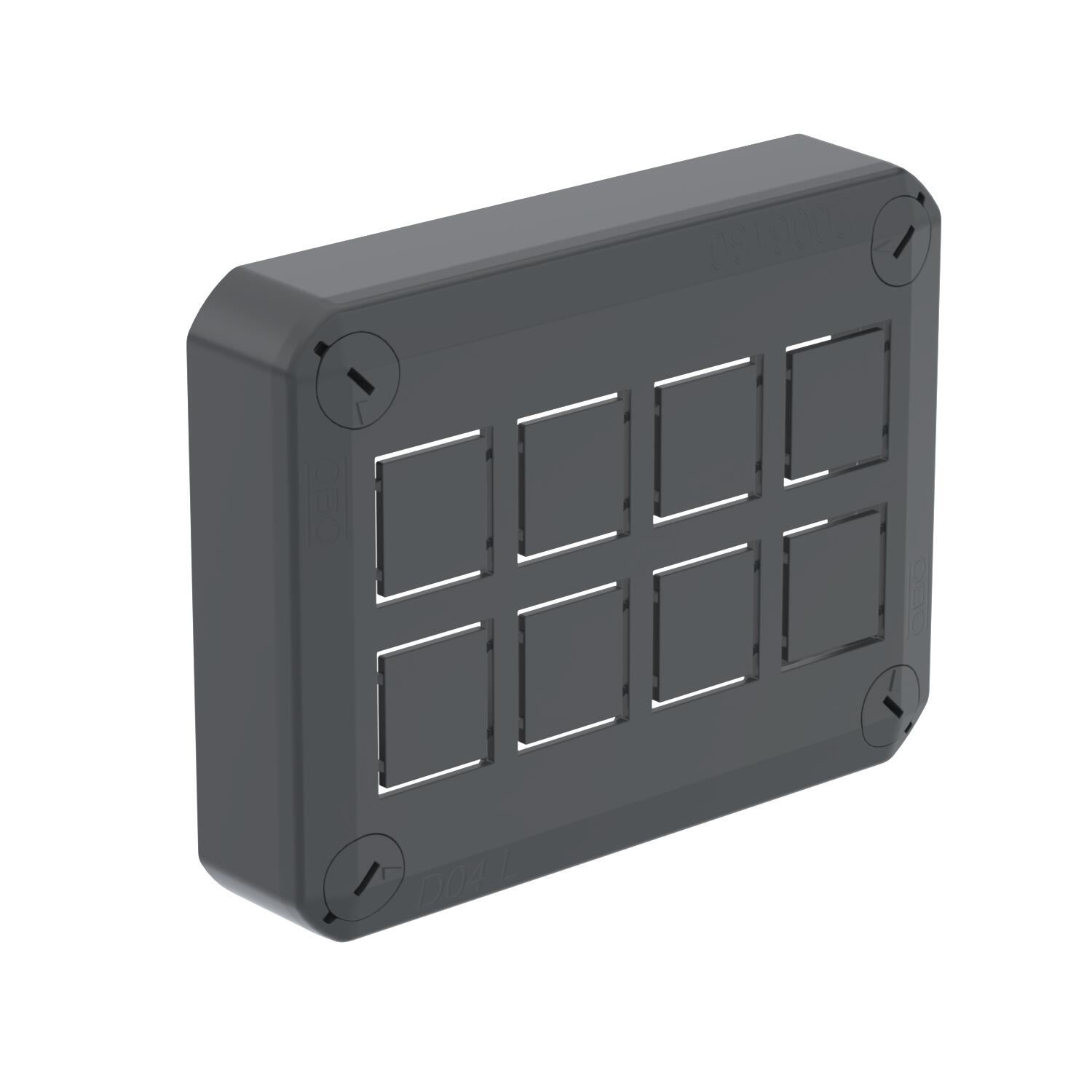

Pluggable cover, unequipped

Item no. 2006274 | EAN 4012197464387

Product description
Product description
Pluggable cover for the closing of junction boxes, equipped with break-out openings for multiple-pole systems or DATA systems based on Keystone. With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Colour Graphite black; RAL 9011

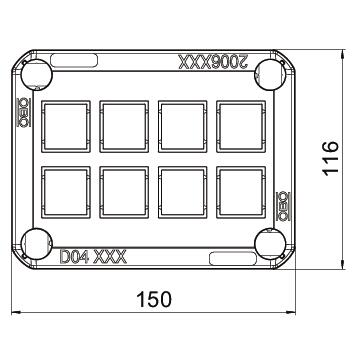

Dimension 150x116x39
Fastening type Screw fastening
Height 39 mm
Length 150 mm
Material Polypropylene
Protection rating IP30
Shape Rectangular
Version, concealed and cavity wall cover Mounting lid
Width 116 mm
All types

All types

Types Number of sockets Number of 3-pole sockets Number of 4-pole sockets Number of 5-pole sockets Item no. Quantity SSU
D01 L 2006040
1 piece
D02 L 2006080
1 piece
D04 L 2006130
1 piece
D01 L SW 2006230
1 piece
D02 L SW 2006254
1 piece
D04 L SW 2006274
1 piece
