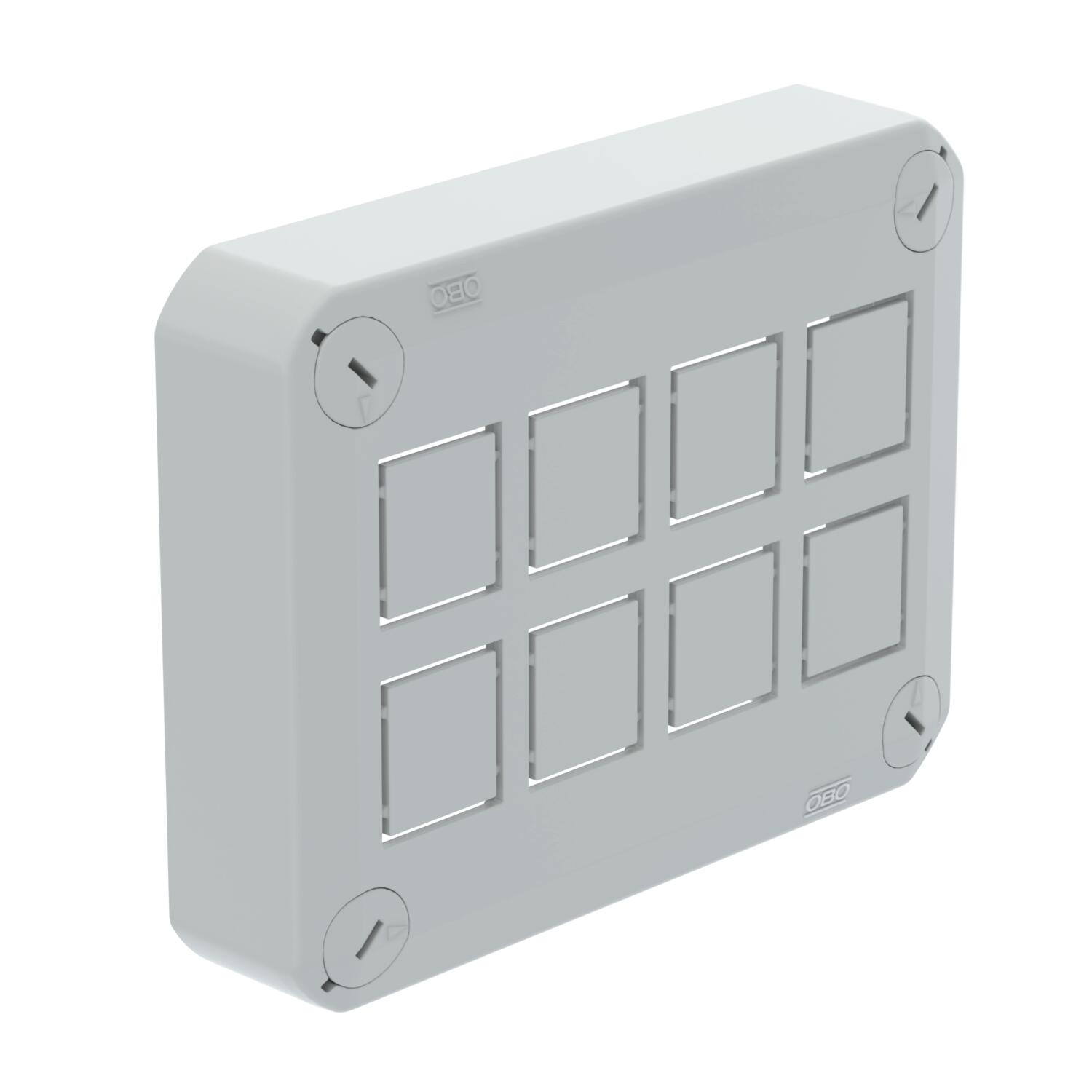

Pluggable cover, unequipped

Item no. 2006130 | EAN 4012197419868

Product description
Product description
Pluggable cover for the clsoing of junction boxes, equipped with 8 break-out openings for DATA systems based on Keystone. With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,3171 kg CO2e / 1 Piece
Colour Light grey; RAL 7035

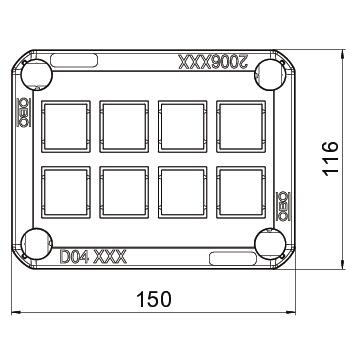

Dimension 150x116x39
Fastening type Screw fastening
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Height 39 mm
Length 150 mm
Material Polypropylene
Protection rating IP30
Shape Rectangular
Version, concealed and cavity wall cover Suitable for data link
Width 116 mm
All types

All types

Types Number of sockets Number of 3-pole sockets Number of 4-pole sockets Number of 5-pole sockets Item no. Quantity SSU
D01 L 2006040
1 piece
D02 L 2006080
1 piece
D04 L 2006130
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
DATA module, pluggable cover DATA module, pluggable cover SB DT1 2006180
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT2 2006182
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT3 2006184
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT4 2006186
1 piece
DATA module, pluggable cover DATA module, pluggable cover SB DT5 2006188
1 piece
Lower part junction box, with fastening element Lower part junction box, with fastening element UT01+SB BE 2006010
1 piece
T 100 junction box, with strain relief entries IP 31 T 100 junction box, with strain relief entries IP 31 T 100 ZE IP30 2007805
1 piece
Fastening element for junction boxes Fastening element for junction boxes SB BE 2006150
10 piece
Separating element juncion box Separating element juncion box SB TR 2006156
5 piece
Pluggable cover, unequipped Pluggable cover, unequipped D01 L 2006040
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 2x3p WD 2006042
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 2x3p WD(1+1) 2006044
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 3x3p WD 2006046
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 4x3p WD 2006048
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 4x3p WD(2+2) 2006050
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 6x3p WD 2006058
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 6x3p WD(4+2) 2006060
1 piece
Pluggable cover, unequipped Pluggable cover, unequipped D02 L 2006080
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 3x3p+1x4p WD 2006082
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 2x4p WD 2006084
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 2x5p WD 2006086
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 4x5p WD 2006088
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 4x5p DALI WD 2006094
1 piece
Pluggable cover, equipped, OBO WINSTA MIDI Pluggable cover, equipped, OBO WINSTA MIDI D02 2x5p DALI WG 2006096
1 piece
Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 3x5p DALI WD 2006098
1 piece
Pluggable cover, equipped, Modul 45 Pluggable cover, equipped, Modul 45 D03 2MSD WS 2006116
1 piece
Junction box T100, 2 Modul 45 sockets in cover, 1-pin Junction box T100, 2 Modul 45 sockets in cover, 1-pin T 100 2MSD WS 2007821
1 piece
Junction box T100, 4 Modul 45 sockets in cover, 2-pin Junction box T100, 4 Modul 45 sockets in cover, 2-pin T 100 4MSD WS 2007825
1 piece
