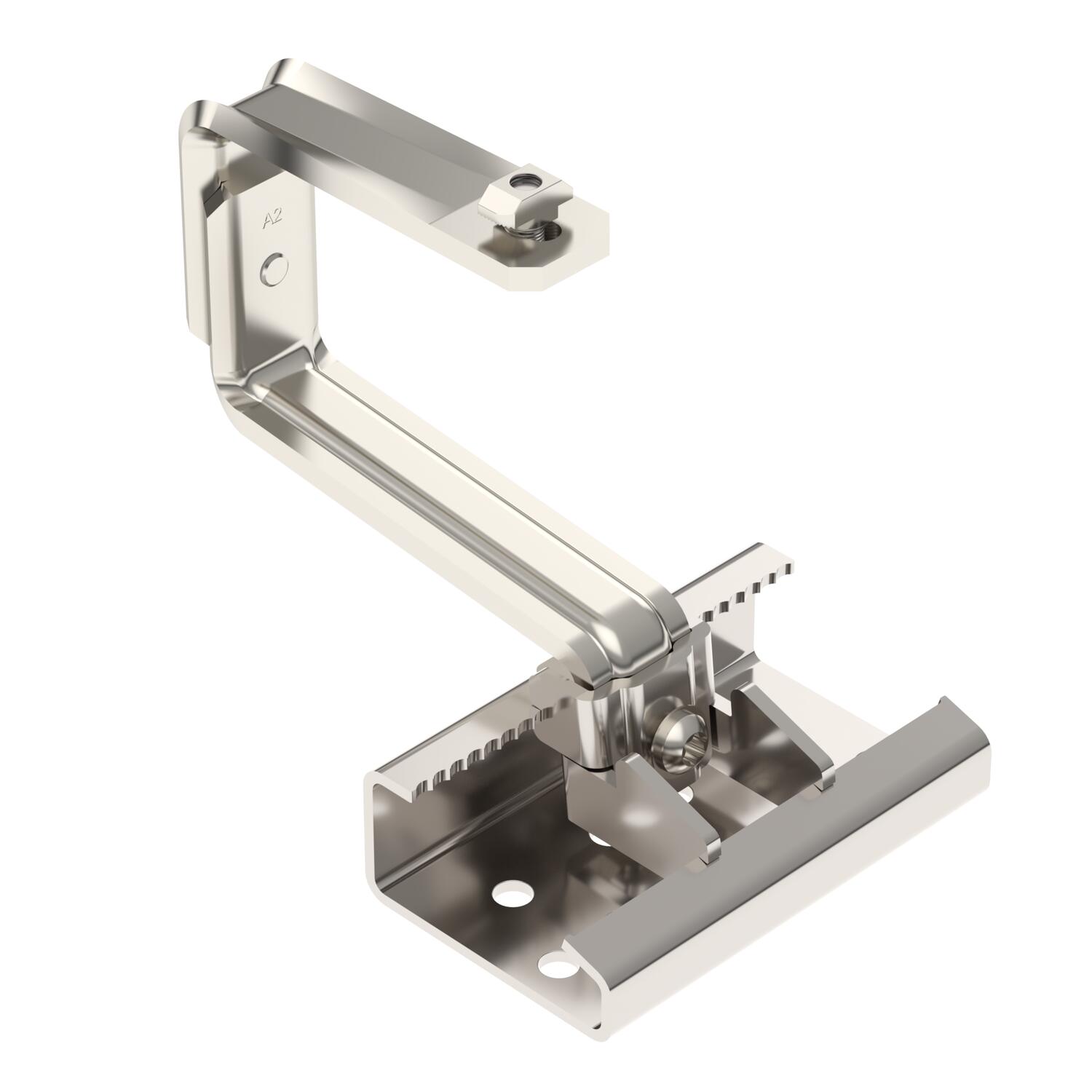

Roof hook for PV module mounting, screwable profile, tiled roof

Item no. 5901404 | EAN 4012197453565

Product description
Product description
Roof hook to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for tiled roofs. Screwable fastening on the support profile. Mounting on rafters with TKS wafer-head screws. The roof hook can be adjusted horizontally as well as vertically continuously via glands, correctTorx 40 key. Height adjustment in the range of the roof slat between 40–54 mm, side adjustment option up to 76 mm, height adjustment of the support profile up to 18 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Adjustable yes
Alignment Horizontal
Anchoring Bolts
Angle of inclination, min. 90 °
CO2 Footprint (GWP) Cradle-to-Gate 6,4247 kg CO2e / 1 Piece
Colour stainless steel

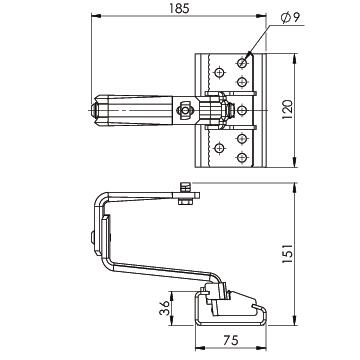

Dimension 120x186x150
Fastening plate, length 120 mm
Height-fastening plate 36 mm
Material Stainless steel 1.4301
Material thickness 8 mm
Penetration of roof necessary yes
Suitable for fastening photovoltaic roof/facade fastening Pitched roof fastening
Suitable for roof material Roof tile
Surface Bright, treated
Wide fastening plate 75 mm
Width 120 mm
With mounting plate yes
All types

All types

Types Item no. Quantity SSU
DHU A2 5901410
1 piece
DHU T A2 5901404
1 piece
DHU T A2K S 5901406
10 piece
