Universal roof hook for PV module mounting, tiled roof
Item no. 5901410 | EAN 4012197368685
- Product description
-

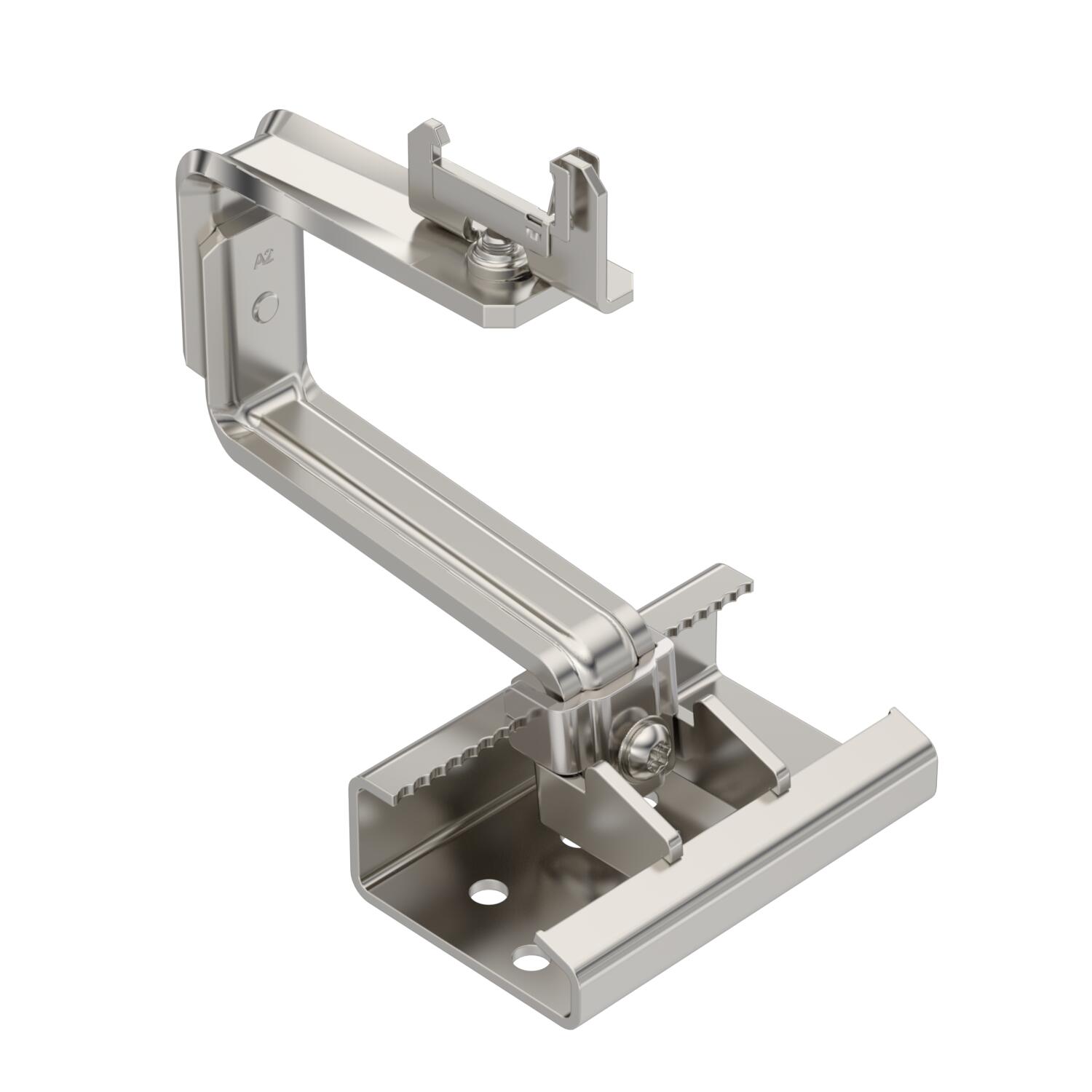

Product descriptionRoof hook to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for tiled roofs. Lockable fastening on support profile. Mounting on rafters with TKS wafer-head screws. Roof hook can be infinitely adjusted horizontally and vertically using glands, correct spanner Torx 40. Height adjustment in the range of the roof slat between 40–54 mm, side adjustment option up to 76 mm, height adjustment of the support profile up to 18 mm.
-
- Technical data
-
Technical data

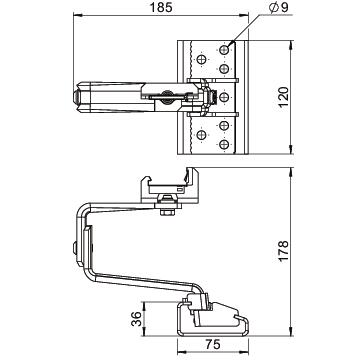

Adjustable yes Alignment Horizontal/vertical Anchoring Bolts Angle of inclination, min. 90 ° CO2 Footprint (GWP) Cradle-to-Gate 6,9457 kg CO2e / 1 Piece Colour stainless steel Dimension 140x197x144 Fastening plate, length 120 mm Height-fastening plate 36 mm Material Stainless steel 1.4301 Material thickness 6 mm Penetration of roof necessary yes Suitable for fastening photovoltaic roof/facade fastening Pitched roof fastening Suitable for roof material Roof tile Surface Bright, treated Wide fastening plate 75 mm Width 120 mm With mounting plate yes - All types
-
System accessories
Products Types Item no. Quantity SSU
Support profile for PV module mounting

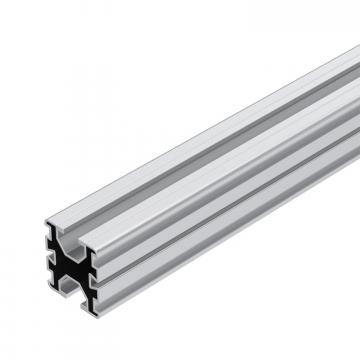

TP 45 2350 ALU 5900405 1 piece
Support profile for PV module mounting
TP 45 4700 ALU 5900410 1 piece
Support profile for PV module mounting

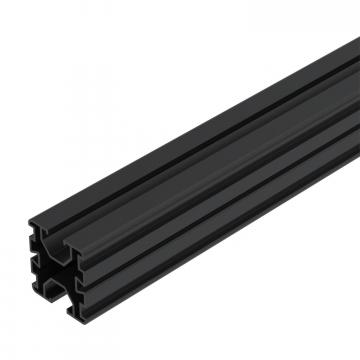

TP 45 4700 ALU S 5900412 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Wafer-head screw for roof hooks

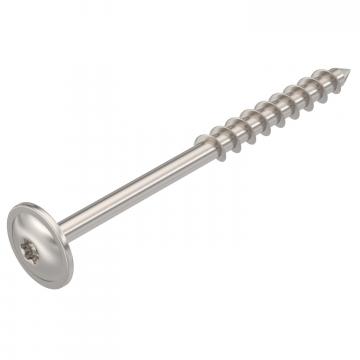

TKS 8x100 A2 5901800 1 piece
Wafer-head screw for roof hooks

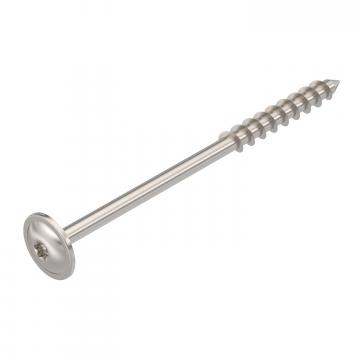

TKS 8x120 A2 5901802 1 piece
Wafer-head screw for roof hooks

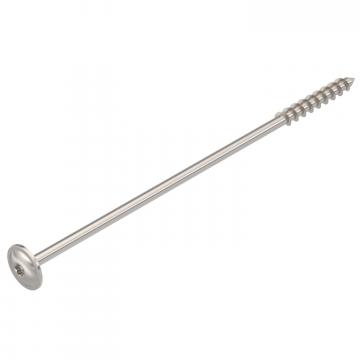

TKS 8x200 A2 5901804 1 piece - Downloads
-
Data sheet DHU A2 / 5901410 , 0.17MB , pdfREACH Declaration of conformity DHU A2 / 5901410 , 0.12MB , pdfRoHS Declaration of conformity DHU A2 / 5901410 , 0.13MB , pdfMounting instructions PV mounting systems for pitched roofs , 4.03MB , pdfNo invitation to tender text is available for this product.
