Rung WSK 40 354
morepic-1 morepic-2 video-1 video-2

Rung WSK 40

Item no. 6008046 | EAN 4012196007097

Product description

Product description

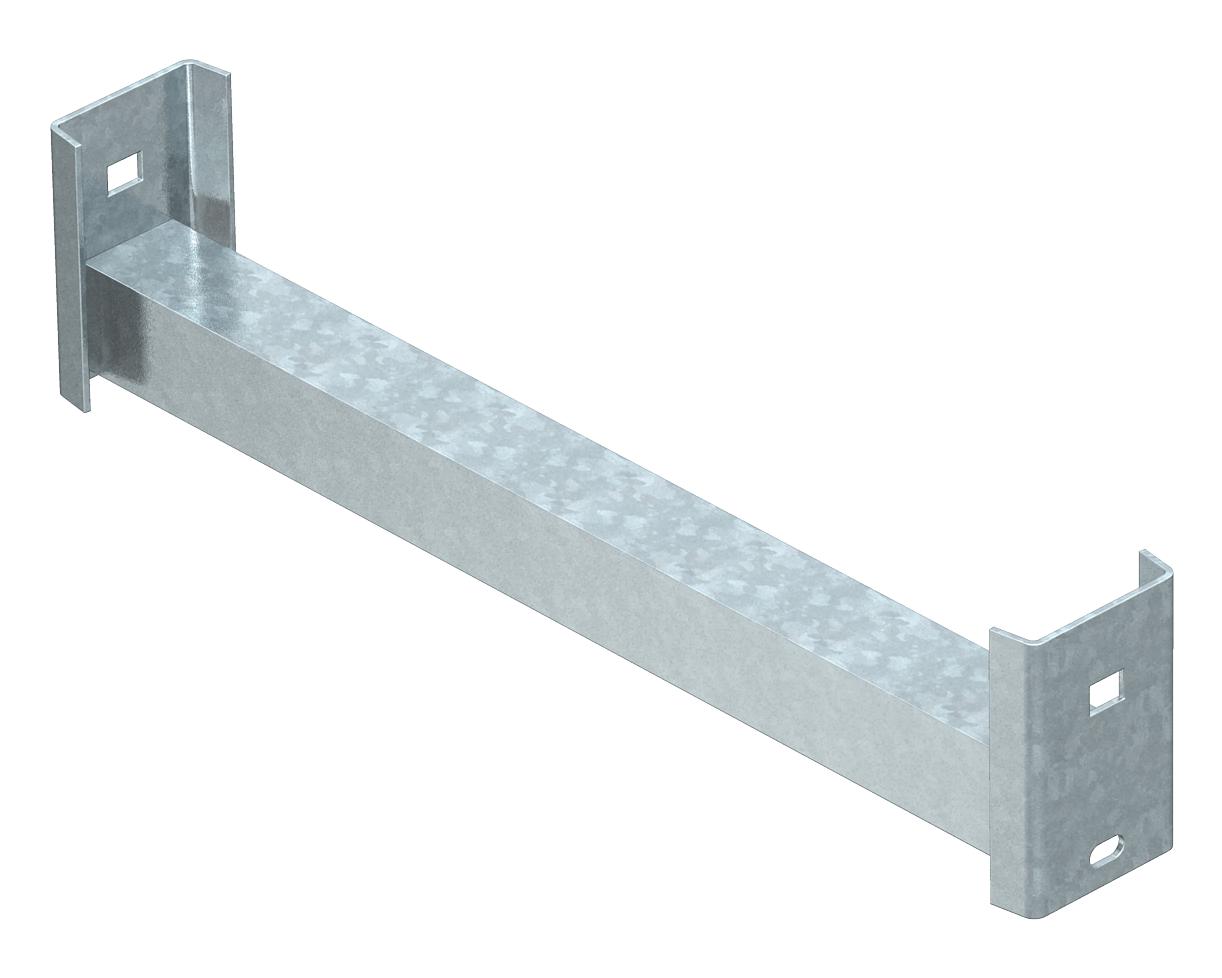

Angle profile rungs for use in heavy-duty vertical ladders and in IS 8 supports.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • I support
Technical data

Technical data

Dimension B354mm
lampDimension WxH 40 x 40 mm
Material Steel
Material thickness 4 mm
Surface Hot-dip galvanised

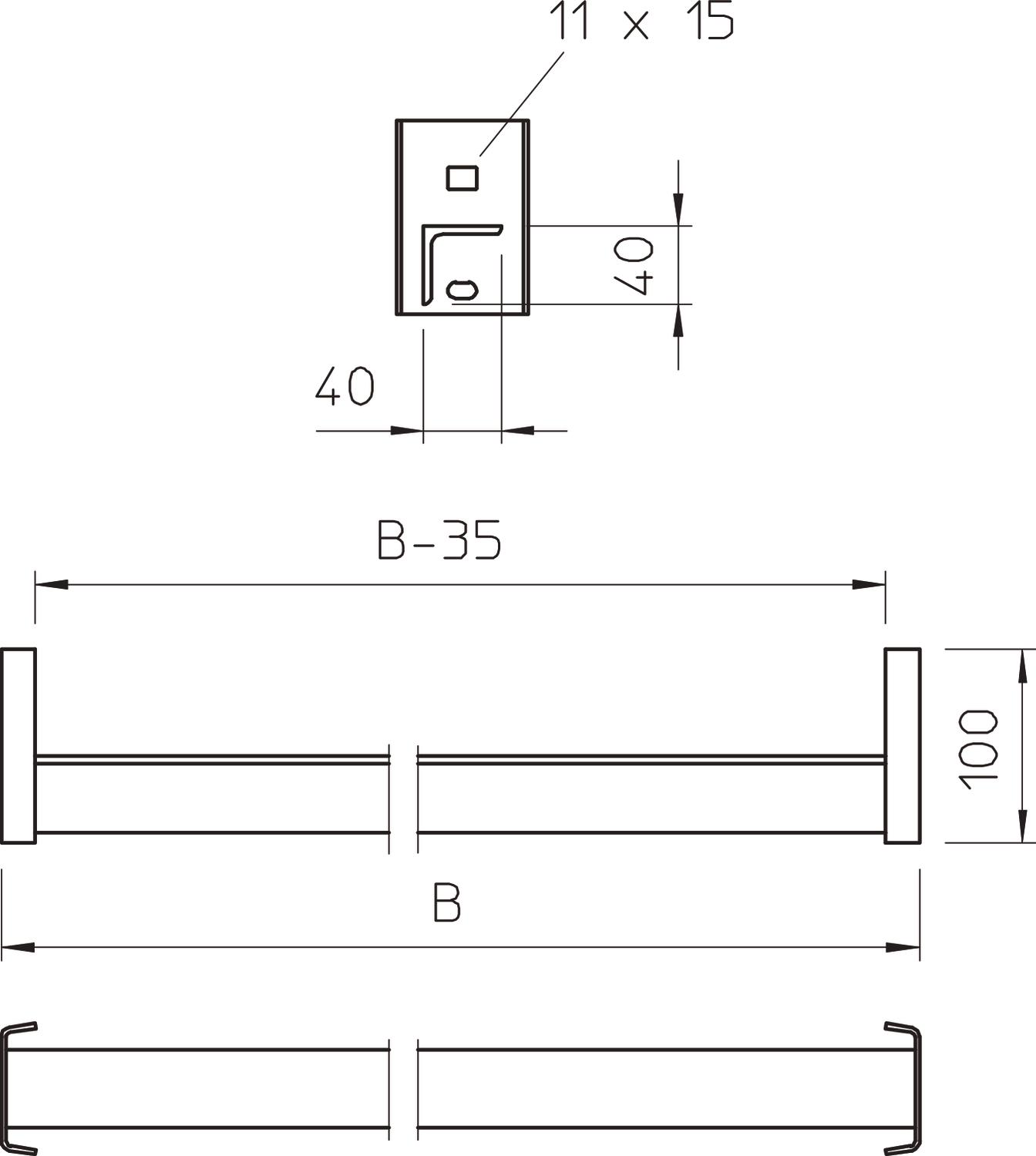

Dimensions

Height 100 mm
Length 354 mm
Width 354 mm
All types

All types

Types Width Item no. Quantity SSU
WSK 40 40 FT 354 mm 6008046
1 piece
WSK 40 50 FT 454 mm 6008054
1 piece
WSK 40 60 FT 554 mm 6008062
1 piece
WSK 40 70 FT 654 mm 6008070
1 piece
WSK 40 80 FT 754 mm 6008089
1 piece
WSK 40 90 FT 854 mm 6008097
1 piece
WSK 40 100 FT 954 mm 6008100
1 piece
