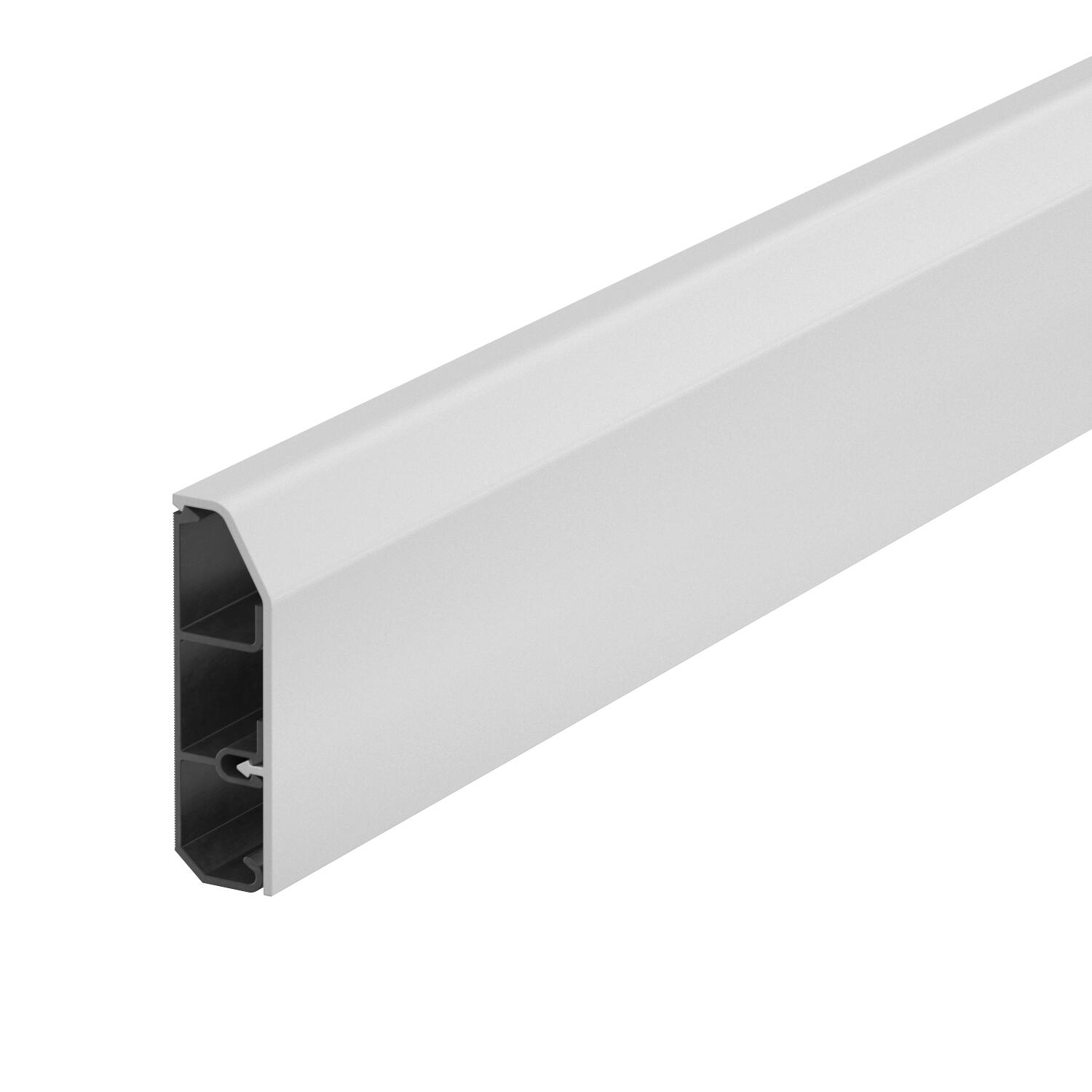

Skirting trunking SL 2070 2000 | Light grey; RAL 7035

Skirting trunking SL 2070

Item no. 6132269 | EAN 4012196720842

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

SL skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.

With snap-on cover and base, with base perforation for direct wall mounting. Change the direction with the fittings and close the trunking ends with end pieces. Service outlet for installing power and data technology.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,1082 kg CO2e / 1 Meter
Colour	Light grey; RAL 7035
Cover sealing lip	Without
Decoration	Without
Halogen-free	no

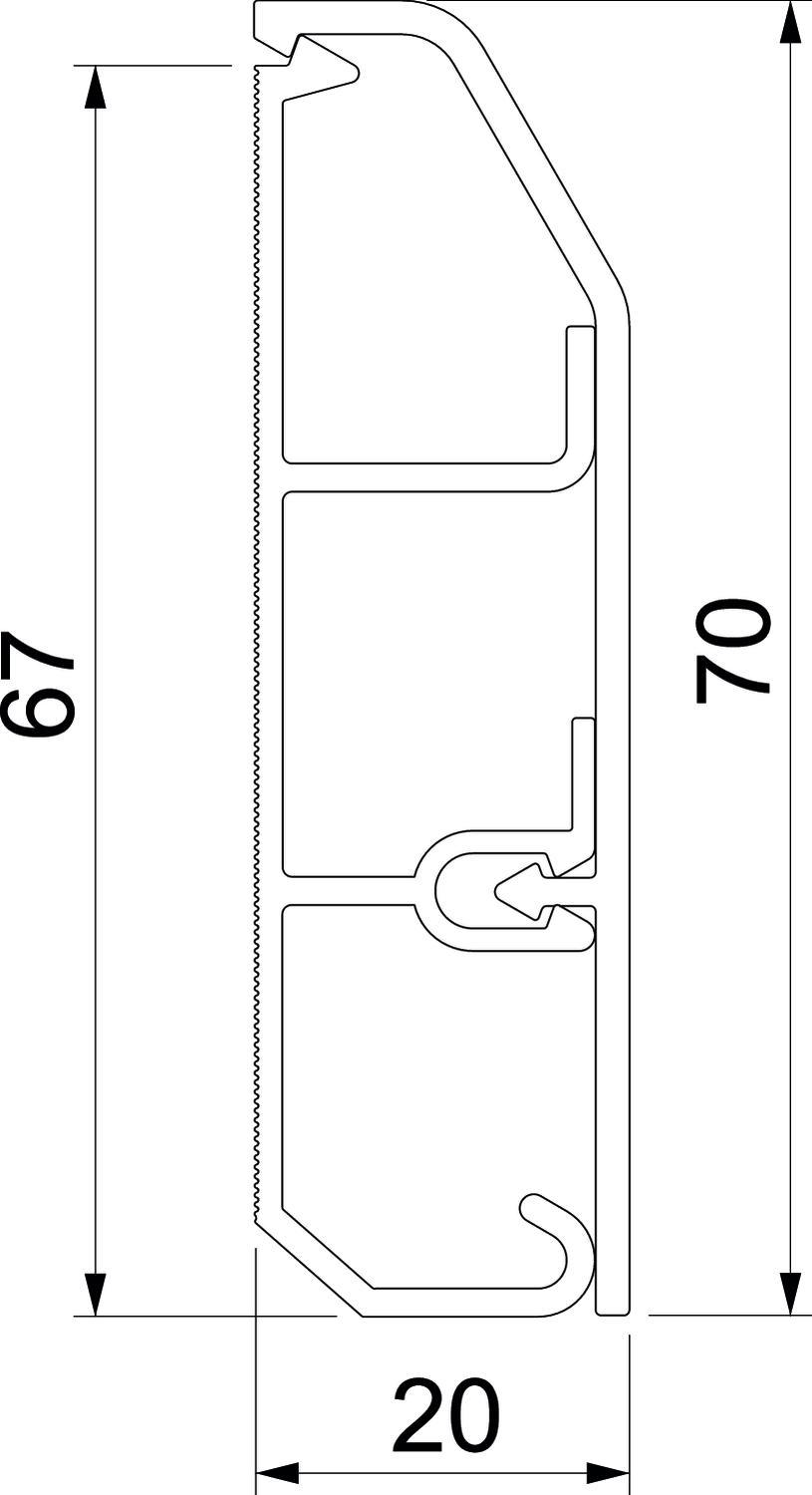

Height	20 mm
Length	2000 mm
Material	Polyvinylchloride
Mounting perforation in base	yes

Number of fixed partitions	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Protective film	no
Usable cross-section	820 mm²
Width	70 mm
With carpet strip	no

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
SL 2070 cws	2000 mm	Cream; RAL 9001	6132208	m	2 m
SL 2070 rws	2000 mm	Pure white; RAL 9010	6132267	m	2 m
SL 2070 lgr	2000 mm	Light grey; RAL 7035	6132269	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

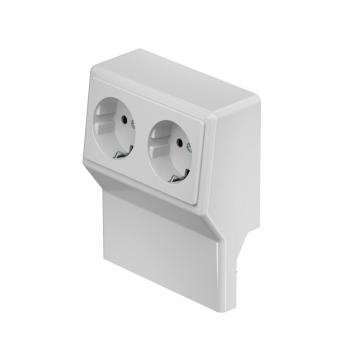

Device support SL2GT5070	SL2GT5070 lgr	6132247	piece	1 piece

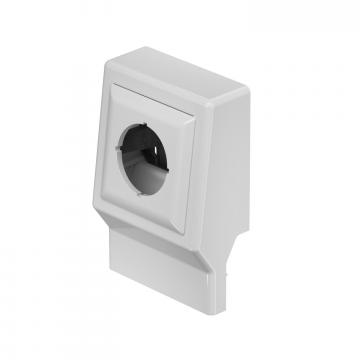

Device support SL ETler5070	SL ETler5070 lgr	6132237	piece	1 piece

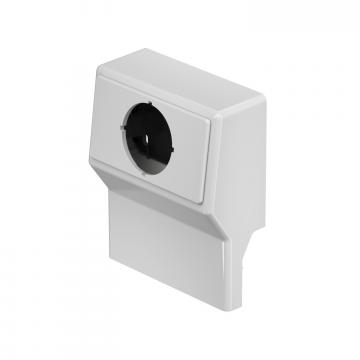

Device support SL GTO 50-70	SL GTO 50-70 lgr	6132223	piece	1 piece

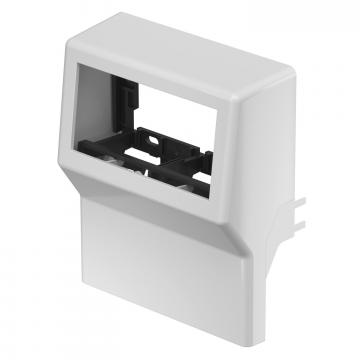

Device support SL GT5070M45	SL GT5070M45 lgr	6134501	piece	1 piece

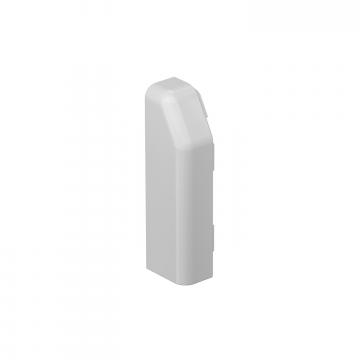

End piece SL ESli2070	SL ESli2070 lgr	6132298	piece	10 piece

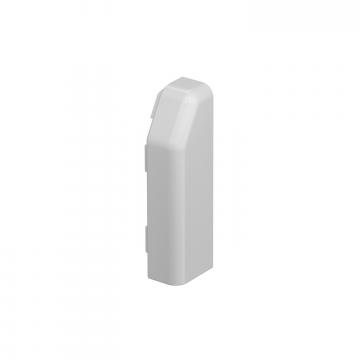

End piece SL ESre2070	SL ESre2070 lgr	6132283	piece	10 piece

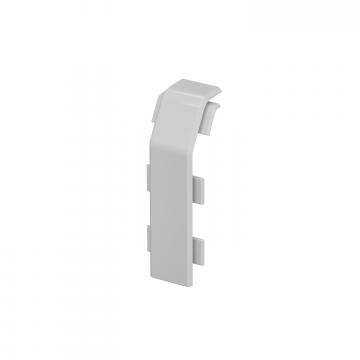

Coupling SL KUP2070	SL KUP2070 lgr	6132232	piece	10 piece

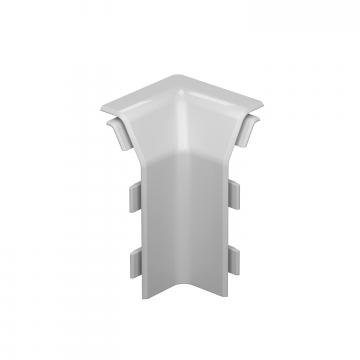

Internal corner SL IE2070	SL IE2070 lgr	6132255	piece	10 piece

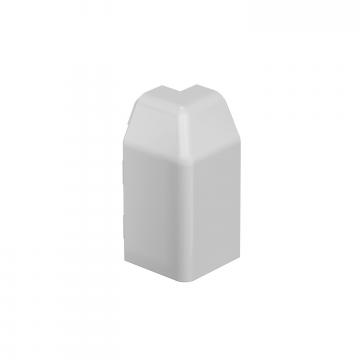

External corner SL AE2070	SL AE2070 lgr	6132272	piece	10 piece
