Skirting trunking SLT 2050 2000 | Pure white; RAL 9010

Skirting trunking SLT 2050

Item no. 6132218 | EAN 4012196720040

Item no. / Types	6132218 / SLT 2050 rws

Length	2000 mm

Colour	Pure white; RAL 9010

Product description

Product description

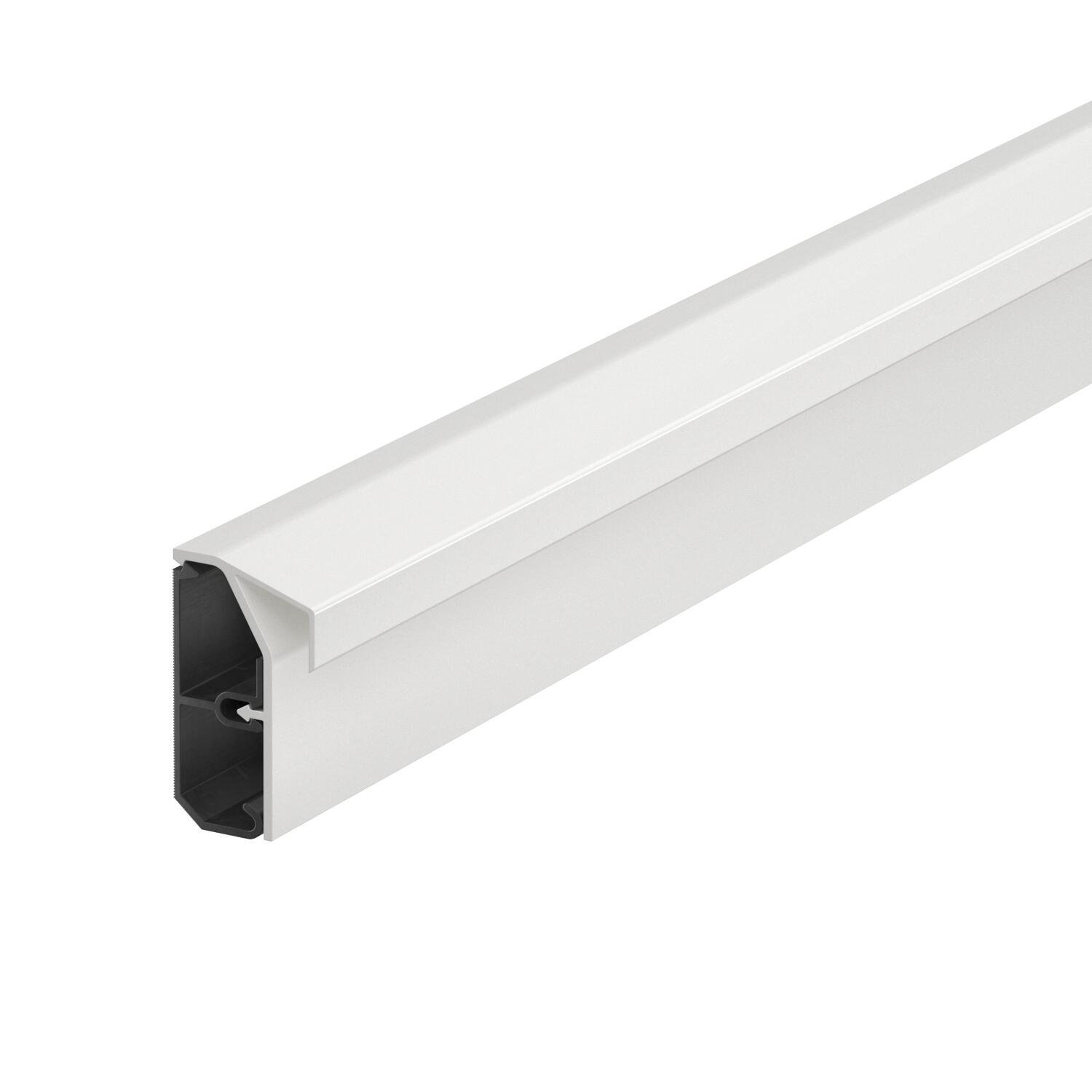

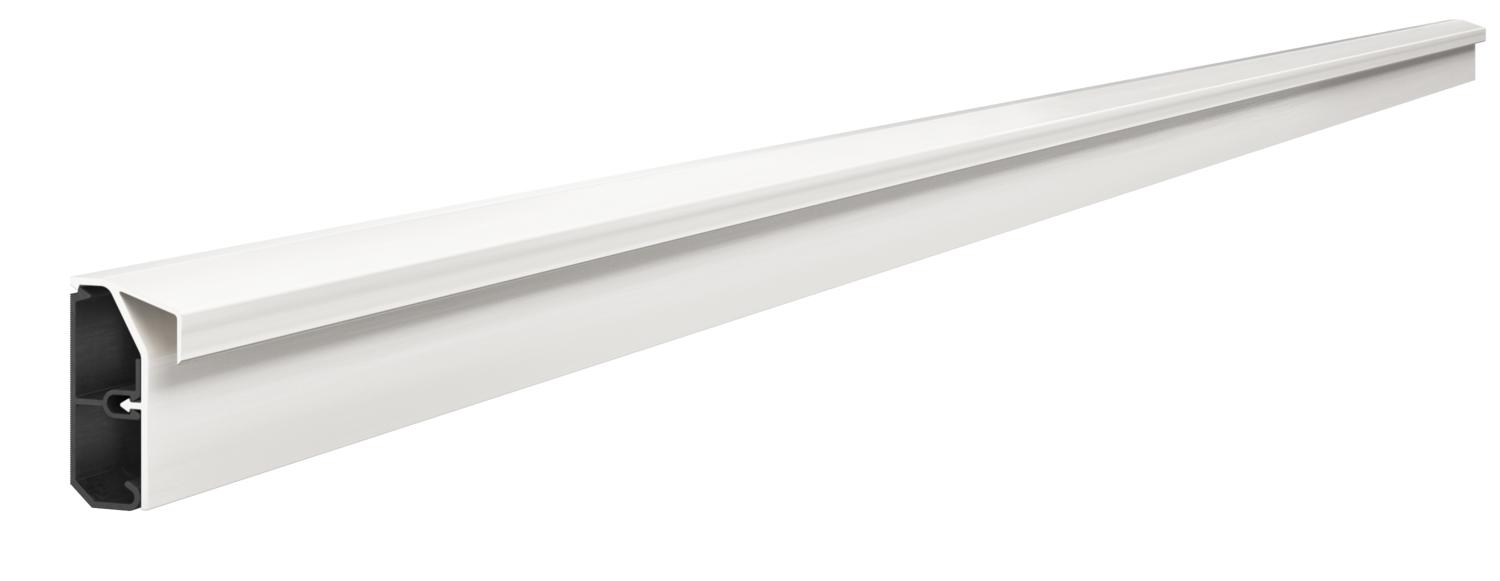

SL-T skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.

With snap-on cover and base, with base perforation for direct wall mounting. Carry out a change of direction using a mitre cut and close the trunking ends with end pieces. Service outlet for mounting power and data technology. With carpet strip for a clean finish.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,8559 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Cover sealing lip	Without
Decoration	Without
Halogen-free	no
Height	20 mm
Length	2000 mm
Material	Polyvinylchloride
Mounting perforation in base	yes

Number of fixed partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Protective film	no
Usable cross-section	580 mm²
Width	50 mm
With carpet strip	yes

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
SLT 2050 rws	2000 mm	Pure white; RAL 9010	6132218	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Device support SL2GT5070	SL2GT5070 rws	6132245	piece	1 piece
Device support SL ETler5070	SL ETler5070 rws	6132238	piece	1 piece
Device support SL GTO 50-70	SL GTO 50-70 rws	6132229	piece	1 piece
Device support SL GT5070M45	SL GT5070M45 rws	6134500	piece	1 piece
Coupling SL KUP2050	SL KUP2050 rws	6132225	piece	10 piece
End piece SL ESli2050	SL ESli2050 rws	6132293	piece	10 piece
End piece SL ESre2050	SL ESre2050 rws	6132277	piece	10 piece
Side closure, SL GTSA5070 device support	SL GTSA5070 rws	6132234	piece	10 piece
Blind cover SL BL blind	SL BL blind rws	6132199	piece	1 piece
Antenna socket panel SL BL ANT	SL BL ANT rws	6132258	piece	1 piece
