Straight connector FS 160 | 2.5
morepic-1 morepic-2 video-1

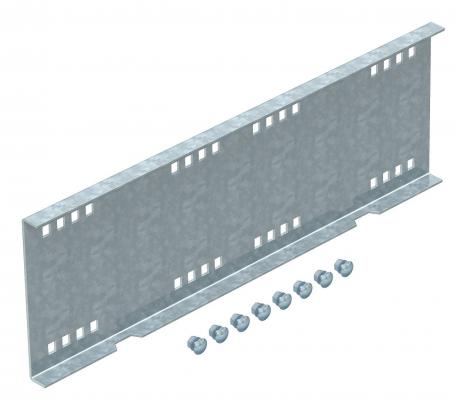

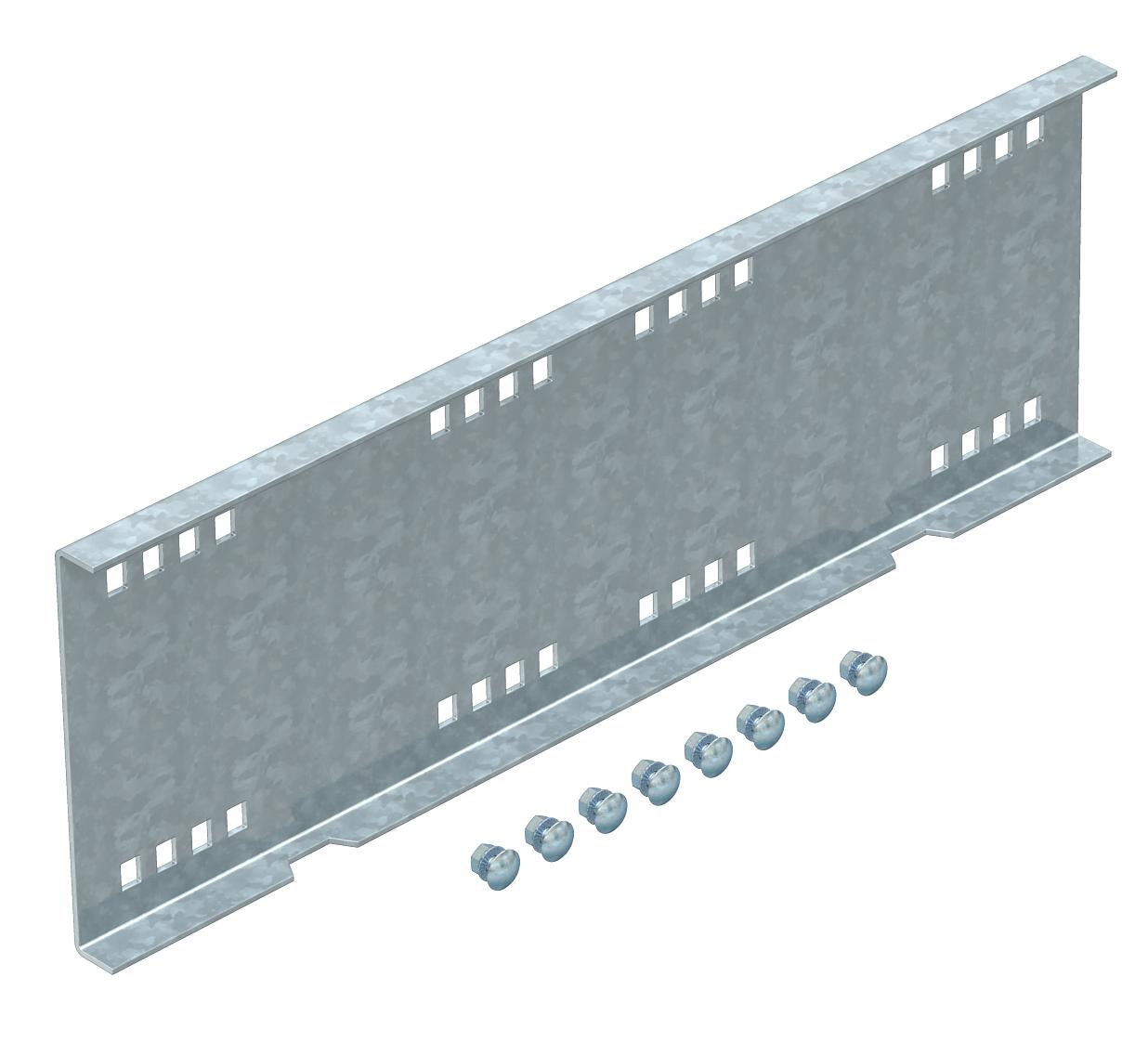

Straight connector FS

Item no. 6227708 | EAN 4012196170470

6227708 / WRVL 160 FS
160 mm
2.5 mm
Product description

Product description

Straight connector for the connection of wide span cable trays and ladders of types WKSG and WKLG with a side height of 160 mm.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wide span cable tray, side height, 160 mm
  • Wide span cable ladder, side height 160 mm
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector
Dimension 160x500
Maintain electrical functions no
Material Steel
Plate thickness 2,5 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for cable tray system height 160 mm
Suitable for mesh cable tray no
Surface Strip galvanized
Version for Straight connector

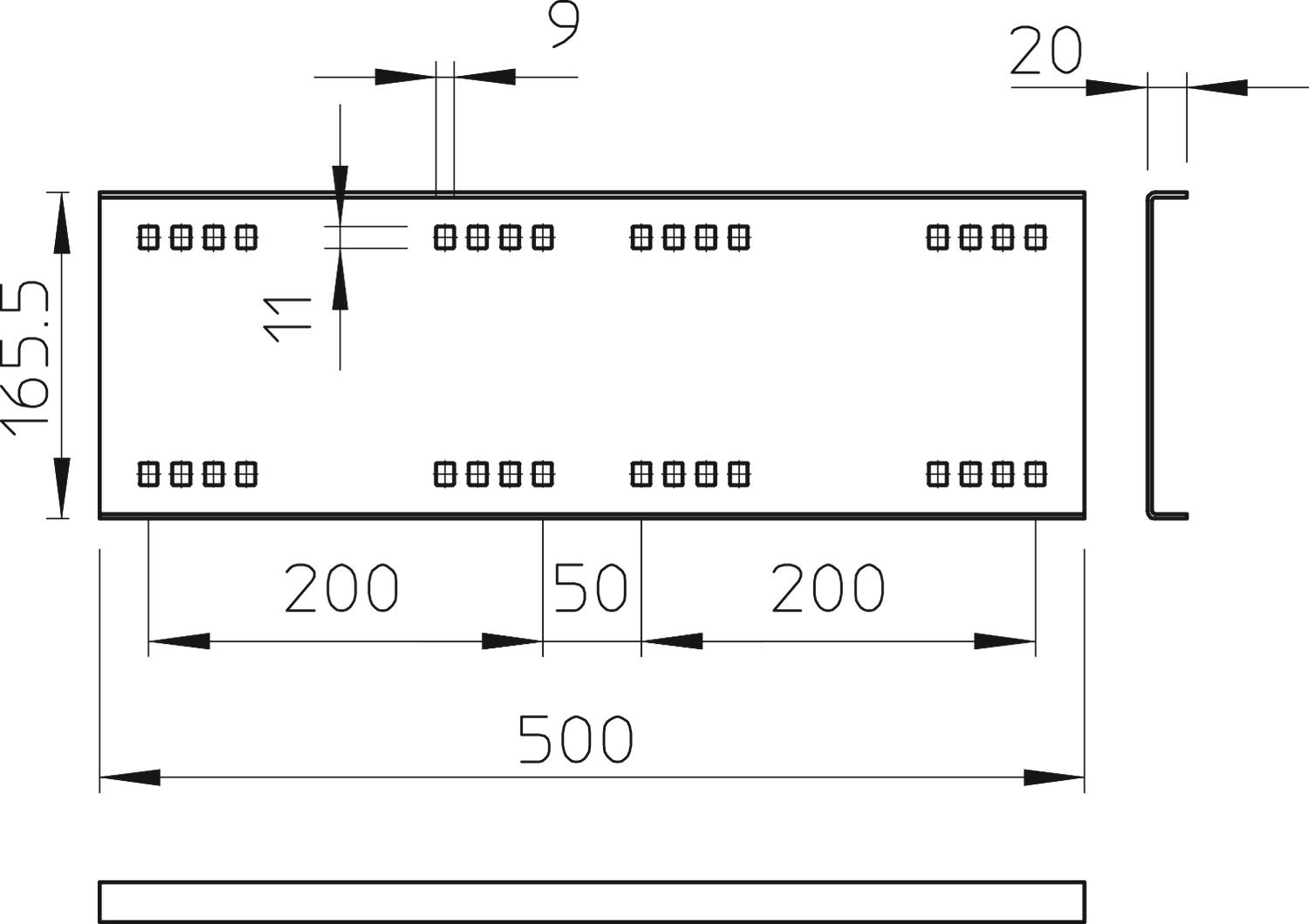

Dimensions

Height 160 mm
Length 500 mm
Width 20 mm
All types

All types

Types Height Plate thickness Item no. Quantity SSU
WRVL 160 FS 160 mm 2.5 mm 6227708
2 piece
