Symmetrical floor support, base 100
Item no. 6044390 | EAN 4012197332426
- Product description
-

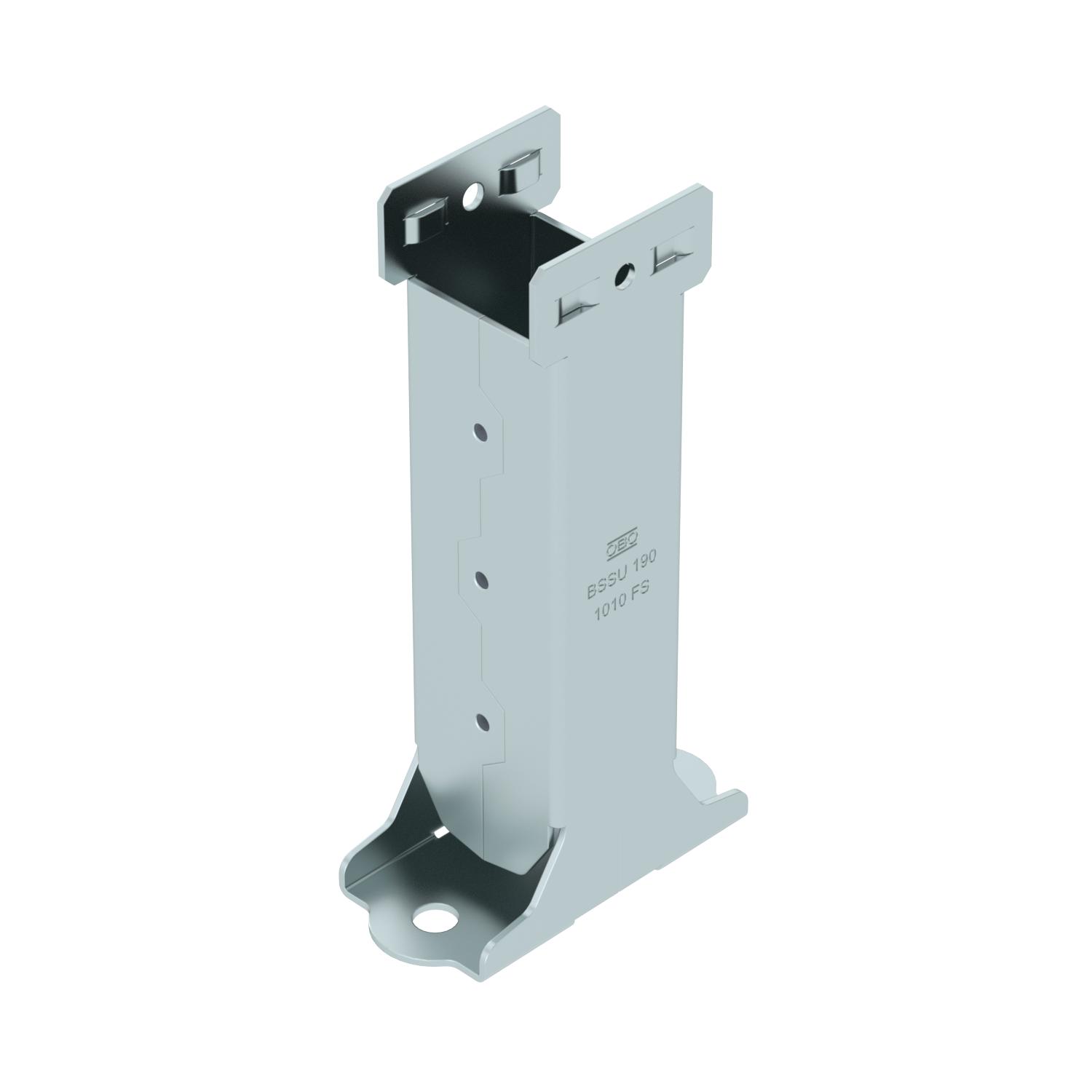

Product descriptionBase of the symmetrical floor support for the BKRS system, suitable for crossbeam type BSST 100. Can be used for walkable cable trays of width 100 mm. With threaded unions for mounting connection components, e.g. pipe clamps, as well as slots for floor mounting up to M10. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

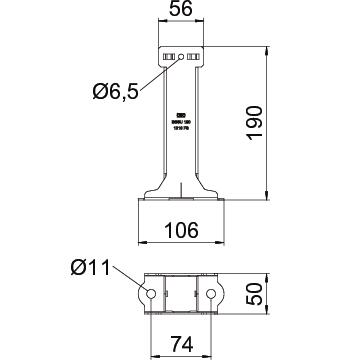

CO2 Footprint (GWP) Cradle-to-Gate 2,0761 kg CO2e / 1 Piece Colour zinc Dimension B100mm Dimension B 56 mm Dimension L 106 mm Height 190 mm Length 50 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable support system width, max. 100 mm Suitable for cable support system width, min. 100 mm Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Tray fastening Screw-on Version for Miscellaneous - All types
- Downloads
-
Data sheet BSSU 190 1010 FS / 6044390 , 0.18MB , pdfEU declaration of conformity BSSU 190 1010 FS / 6044390 , 0.10MB , pdfREACH Declaration of conformity BSSU 190 1010 FS / 6044390 , 0.12MB , pdfRoHS Declaration of conformity BSSU 190 1010 FS / 6044390 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
