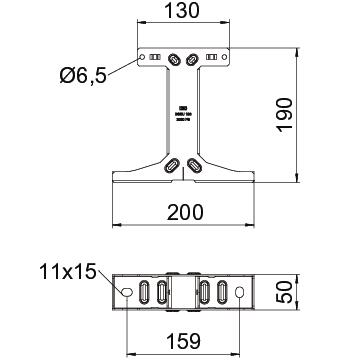

Symmetrical floor support, base 200/300 50 | | 190

Symmetrical floor support, base 200/300

Item no. 6044392 | EAN 4012197332433

Item no. / Types

Length	50 mm

Height	190 mm

Product description

Product description

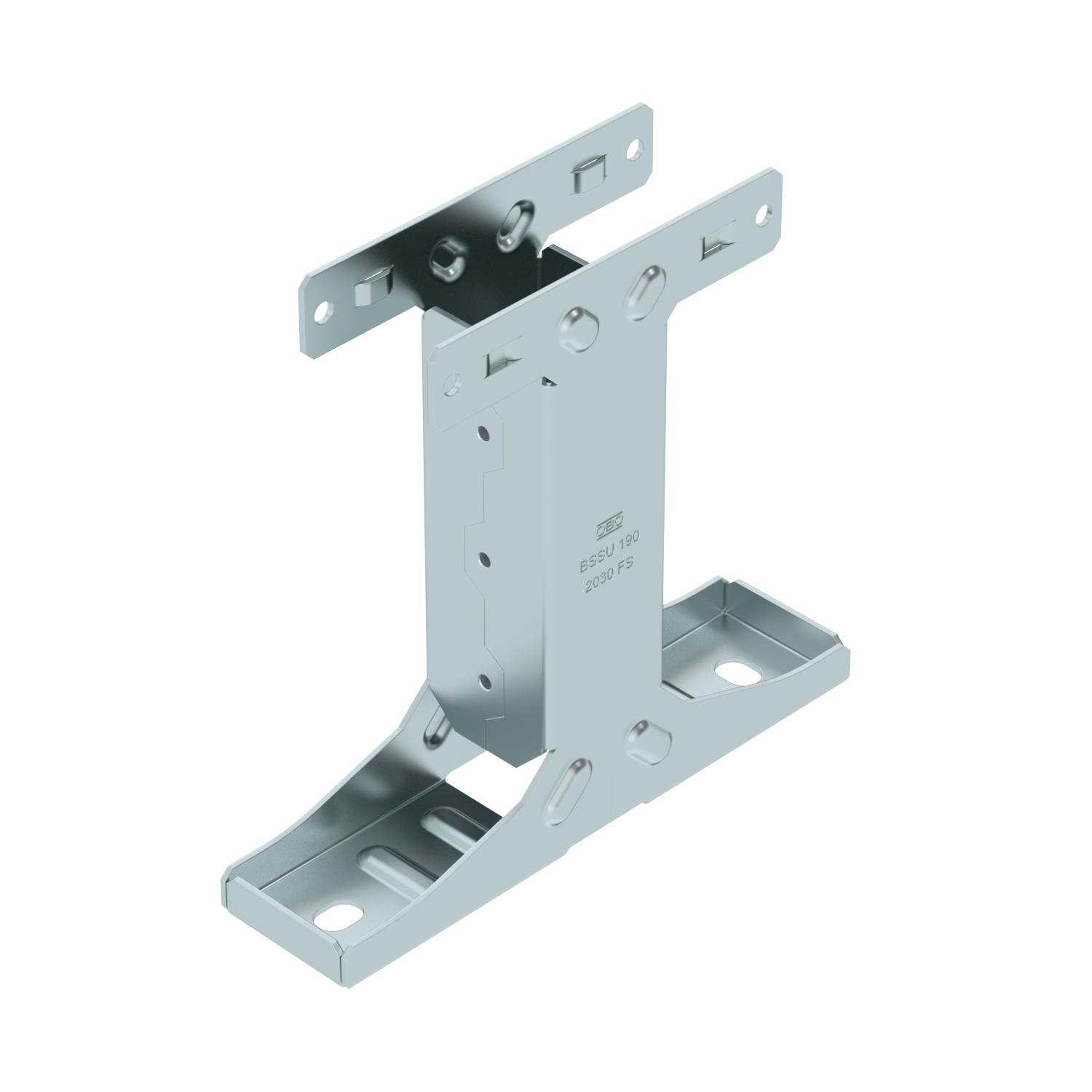

Base of the symmetrical floor support for the BKRS system, suitable for crossbeam type BSST 200/300. Can be used for walkable cable trays of width 200 or 300 mm. With threaded unions for mounting connection components, e.g. pipe clamps, as well as slots for floor mounting up to M10. Fastening material must be ordered separately.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	3,5844 kg CO2e / 1 Piece
Colour	zinc
Dimension	B300mm
Dimension B	130 mm
Dimension L	200 mm
Height	190 mm
Length	50 mm
Material	Steel
Rustproof steel, pickled	no

Suitable for cable ladder	no
Suitable for cable support system width, max.	300 mm
Suitable for cable support system width, min.	200 mm
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Tray fastening	Screw-on
Version for	Miscellaneous
