Symmetrical floor support, base 400–600
Item no. 6044394 | EAN 4012197332440
- Product description
-

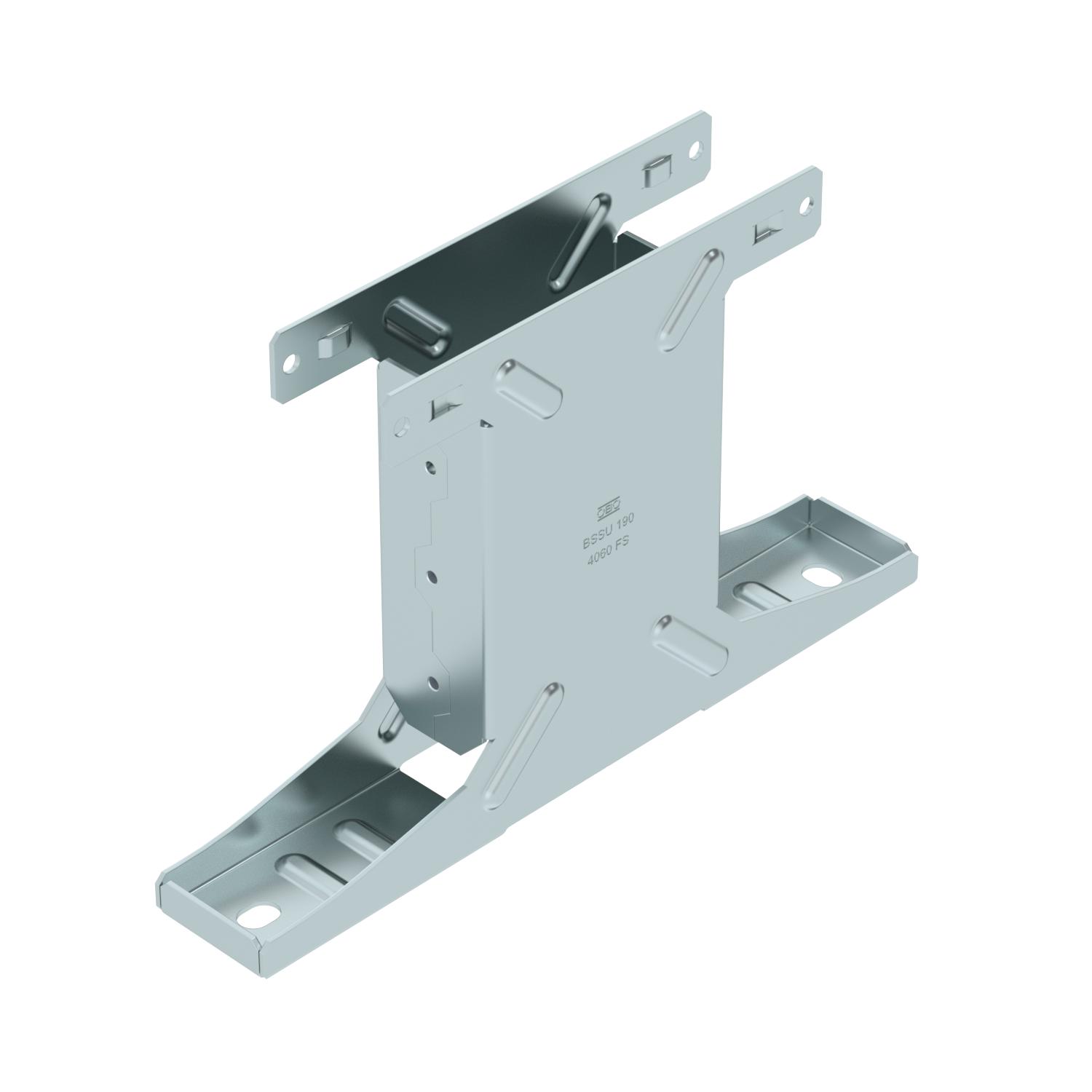

Product descriptionBase of the symmetrical floor support for the BKRS system, suitable for crossbeam type BSST 400/500/600. Can be used for walkable cable trays of width 400-600 mm. With threaded unions for mounting connection components, e.g. pipe clamps, as well as slots for floor mounting up to M10. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

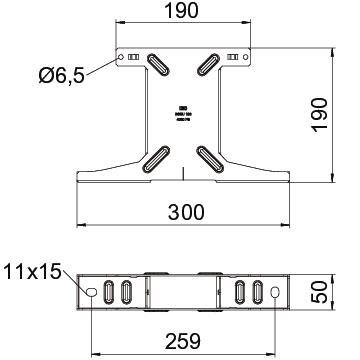

CO2 Footprint (GWP) Cradle-to-Gate 4,8712 kg CO2e / 1 Piece Colour zinc Dimension B600mm Dimension B 190 mm Dimension L 300 mm Height 190 mm Length 50 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable support system width, max. 600 mm Suitable for cable support system width, min. 400 mm Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Tray fastening Screw-on Version for Miscellaneous - All types
- Downloads
-
Data sheet BSSU 190 4060 FS / 6044394 , 0.21MB , pdfEU declaration of conformity BSSU 190 4060 FS / 6044394 , 0.10MB , pdfREACH Declaration of conformity BSSU 190 4060 FS / 6044394 , 0.12MB , pdfRoHS Declaration of conformity BSSU 190 4060 FS / 6044394 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
