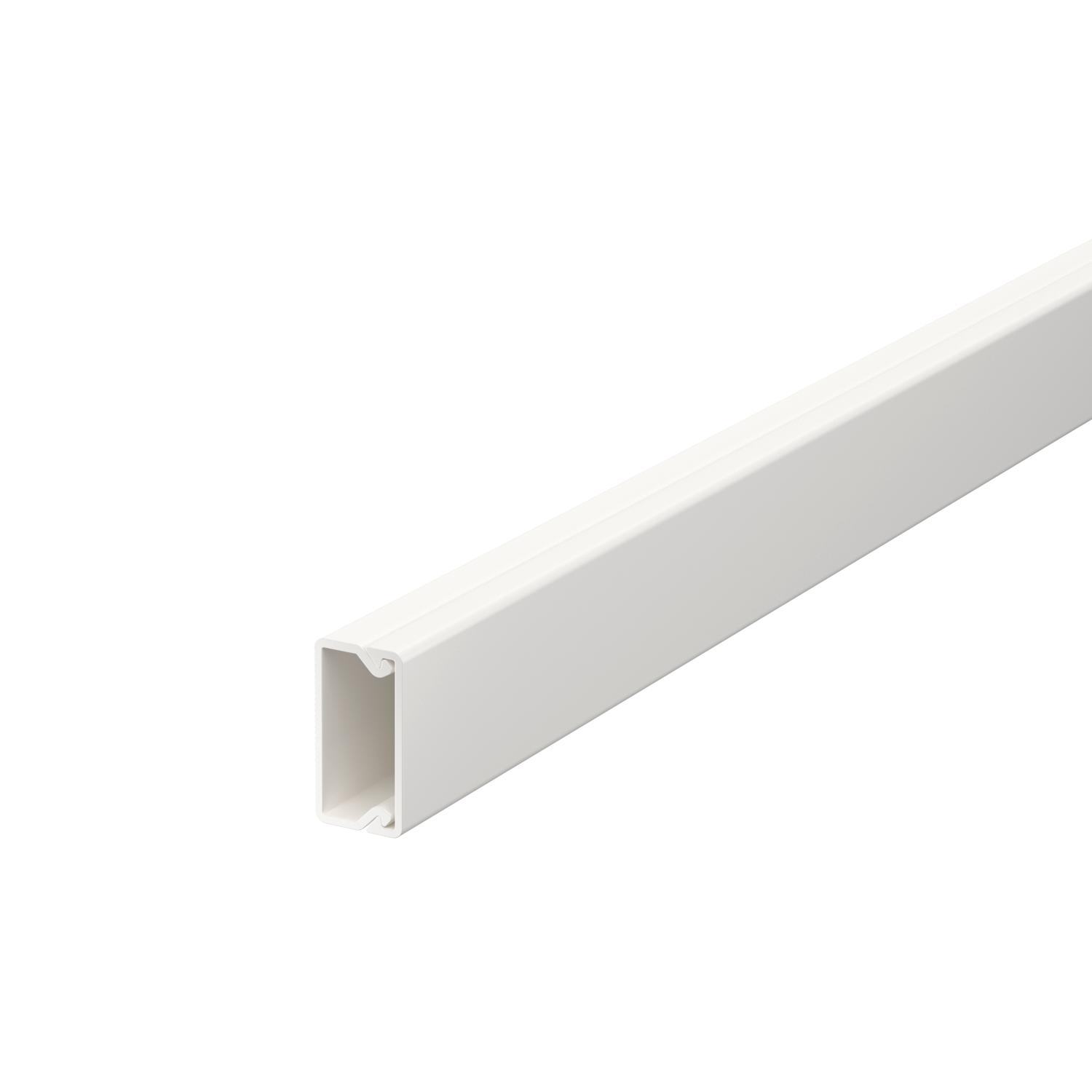

Trunking, type WDK 10020
Item no. 6150764 | EAN 4012196492251
- Product description
-
Product descriptionTrunking cover and base with base perforation.
-
- Technical data
-
Technical data

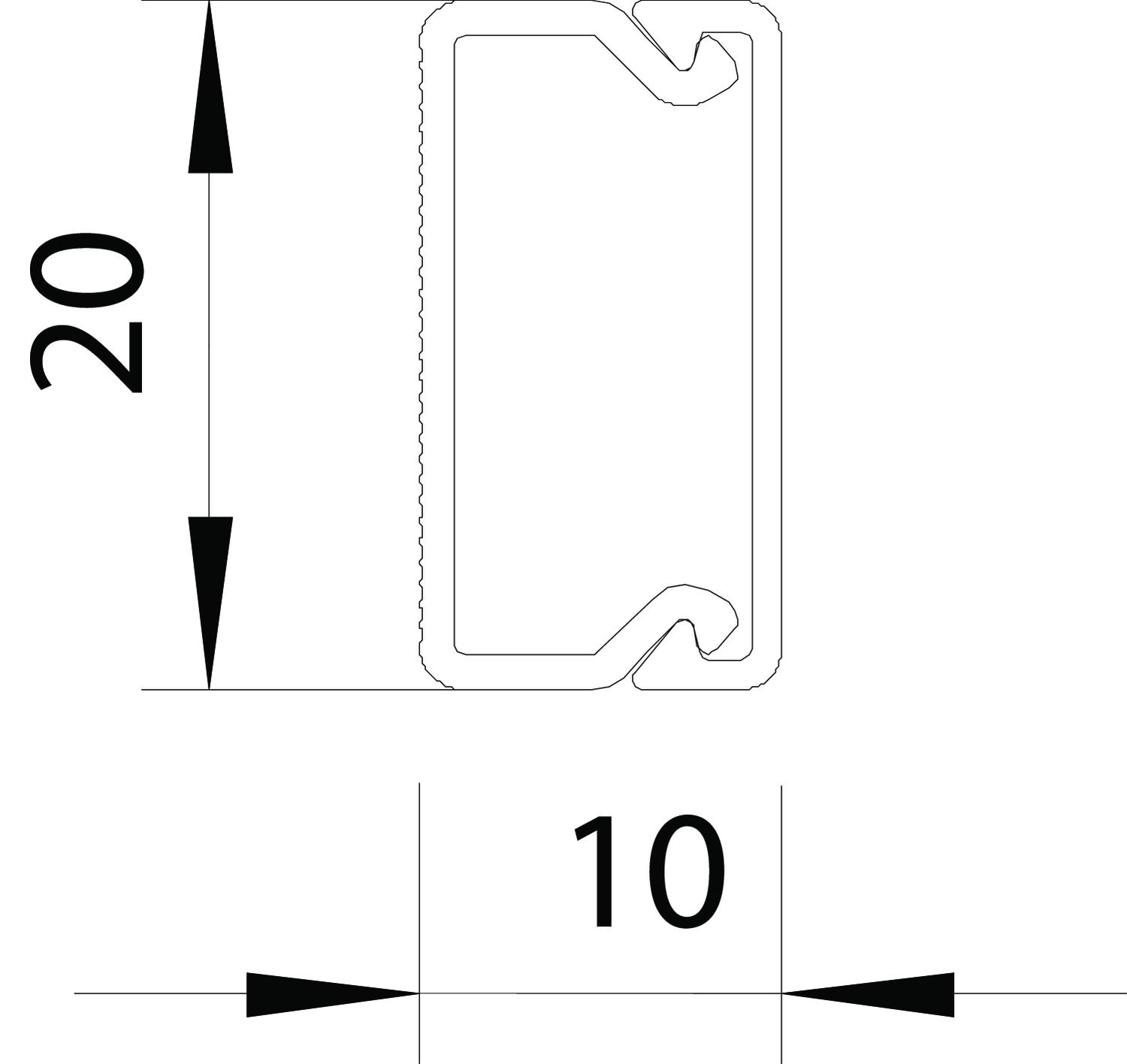

Antibacterial treatment no Cable retaining clip yes CO2 Footprint (GWP) Cradle-to-Gate 0,1925 kg CO2e / 1 Meter Colour Pure white; RAL 9010 Delivery on a roll no Dimension 10x20x2000 Duct connector no Fastening type Base perforation Halogen-free no Height 10 mm Length 2000 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Usable cross-section 135 mm² Version, cable trunking cover Loose Width 20 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

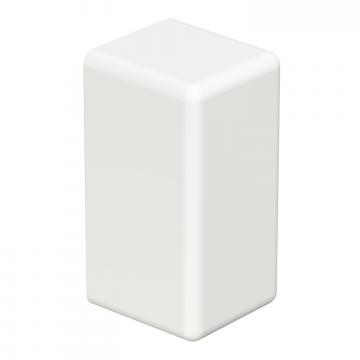

End piece, trunking type WDK 10020
WDK HE10020RW 6154514 10 piece

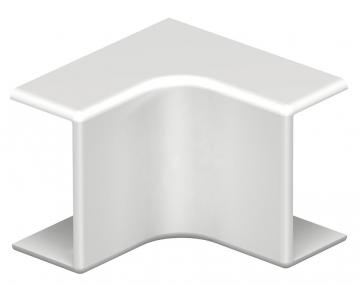

Internal corner cover, trunking type WDK 10020
WDK HI10020RW 6154328 4 piece

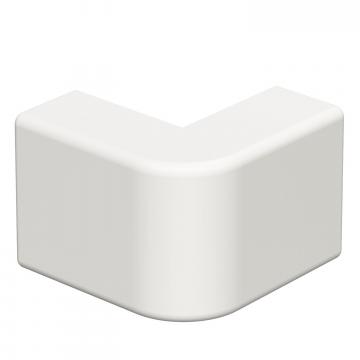

External corner cover, trunking type WDK 10020
WDK HA10020RW 6154417 4 piece

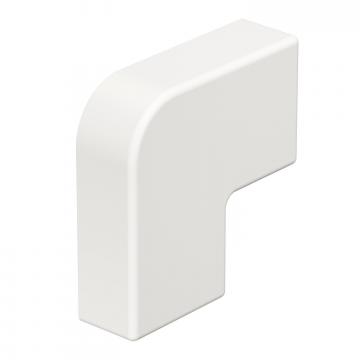

Flat angle cover, trunking type WDK 10020
WDK HF10020RW 6154212 4 piece Mounting accessories
Products Types Item no. Quantity SSU
Push-fit plug Delta-Push® for pushing in
DP D 30 2351670 100 piece - Downloads
-
Data sheet WDK10020RW / 6150764 , 0.19MB , pdfSafety data sheet WDK10020RW / 6150764 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK10020RW / 6150764 , 0.10MB , pdfUK Declaration of Conformity WDK10020RW / 6150764 , 0.09MB , pdfREACH Declaration of conformity WDK10020RW / 6150764 , 0.12MB , pdfRoHS Declaration of conformity WDK10020RW / 6150764 , 0.13MB , pdfLabel approval VDE symbol approval, WDK , 0.11MB , pdfMounting instructions Cable trunking WDK , 6.19MB , pdfNo invitation to tender text is available for this product.
