Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,353 kg CO2e / 1 Meter
Colour	Cream; RAL 9001
Delivery on a roll	no

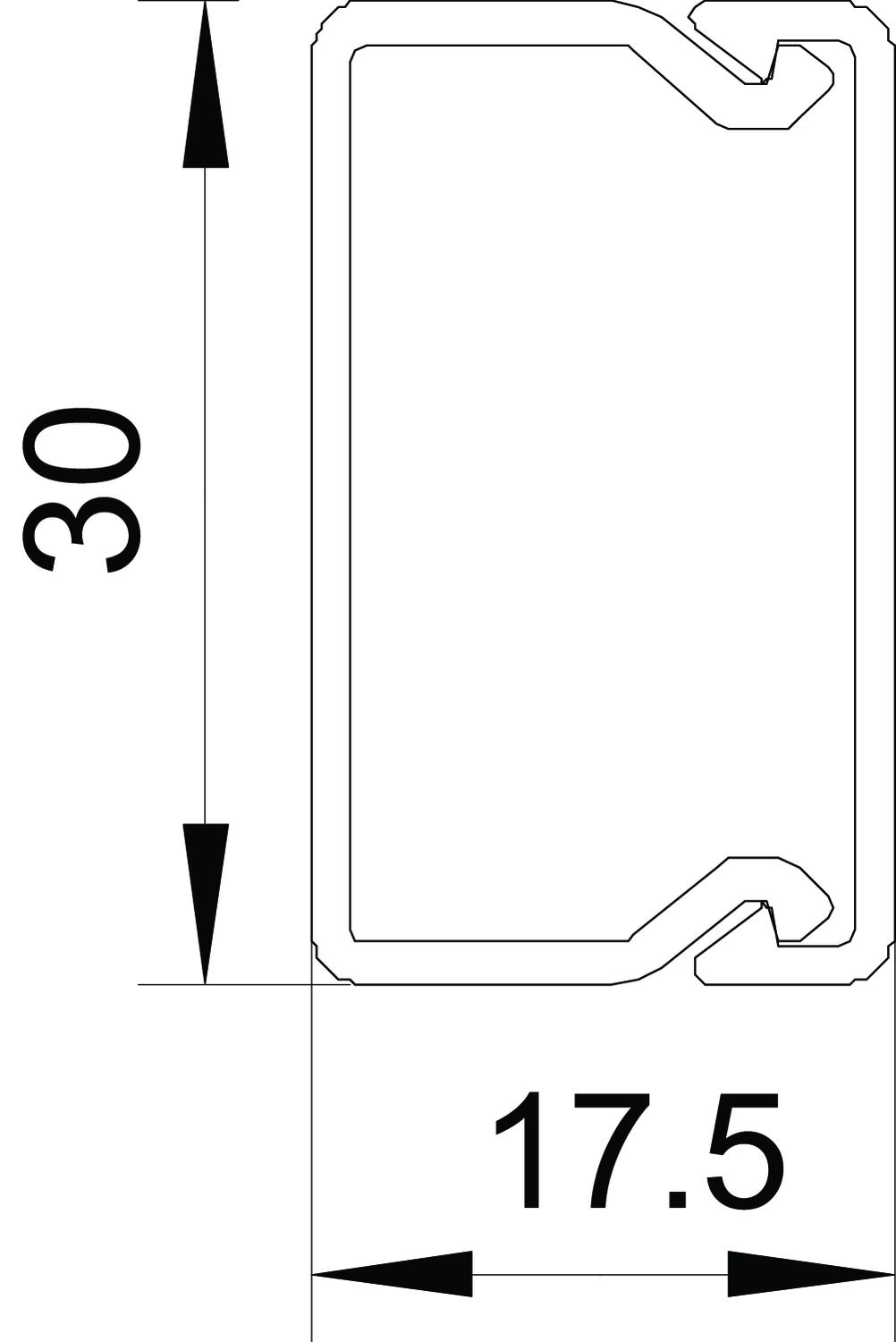

Dimension	15x30x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	17,5 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	2
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	2
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	375 mm²
Version, cable trunking cover	Loose
Width	30 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK15030RW	2000 mm	30 mm	17.5 mm	Pure white; RAL 9010	6191010	m	32 m
WDK15030GR	2000 mm	30 mm	17.5 mm	Stone grey; RAL 7030	6025005	m	32 m
WDK15030CW	2000 mm	30 mm	17.5 mm	Cream; RAL 9001	6025013	m	32 m
WDK15030BR	2000 mm	30 mm	17.5 mm	Sepia brown; RAL 8014	6025021	m	32 m
WDK15030LGR	2000 mm	30 mm	17.5 mm	Light grey; RAL 7035	6025048	m	32 m
WDK15030SRW	2000 mm	30 mm	17.5 mm	Pure white; RAL 9010	6027325	m	32 m
WDK15030RW2500	2000 mm	30 mm	17.5 mm	Pure white; RAL 9010	6191013	piece	798 piece

Products	Types	Item no.	Quantity	SSU

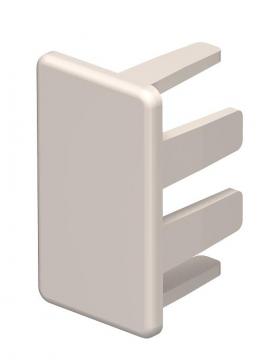

End piece, trunking type WDK 15030	WDK HE15030CW	6162517	piece	10 piece

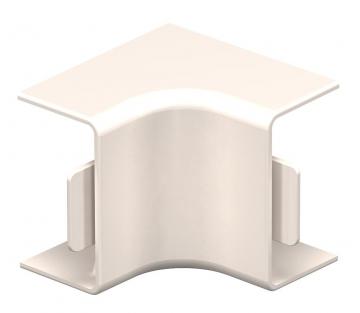

Internal corner cover, trunking type WDK 15030	WDK HI15030CW	6160026	piece	4 piece

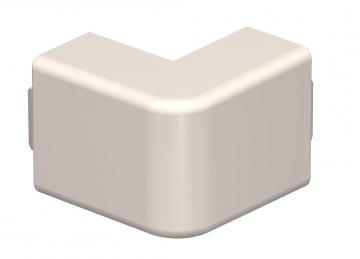

External corner cover, trunking type WDK 15030	WDK HA15030CW	6160611	piece	4 piece

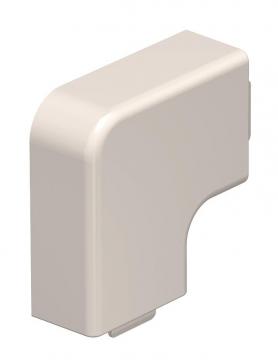

Flat angle cover, trunking type WDK 15030	WDK HF15030CW	6161219	piece	4 piece

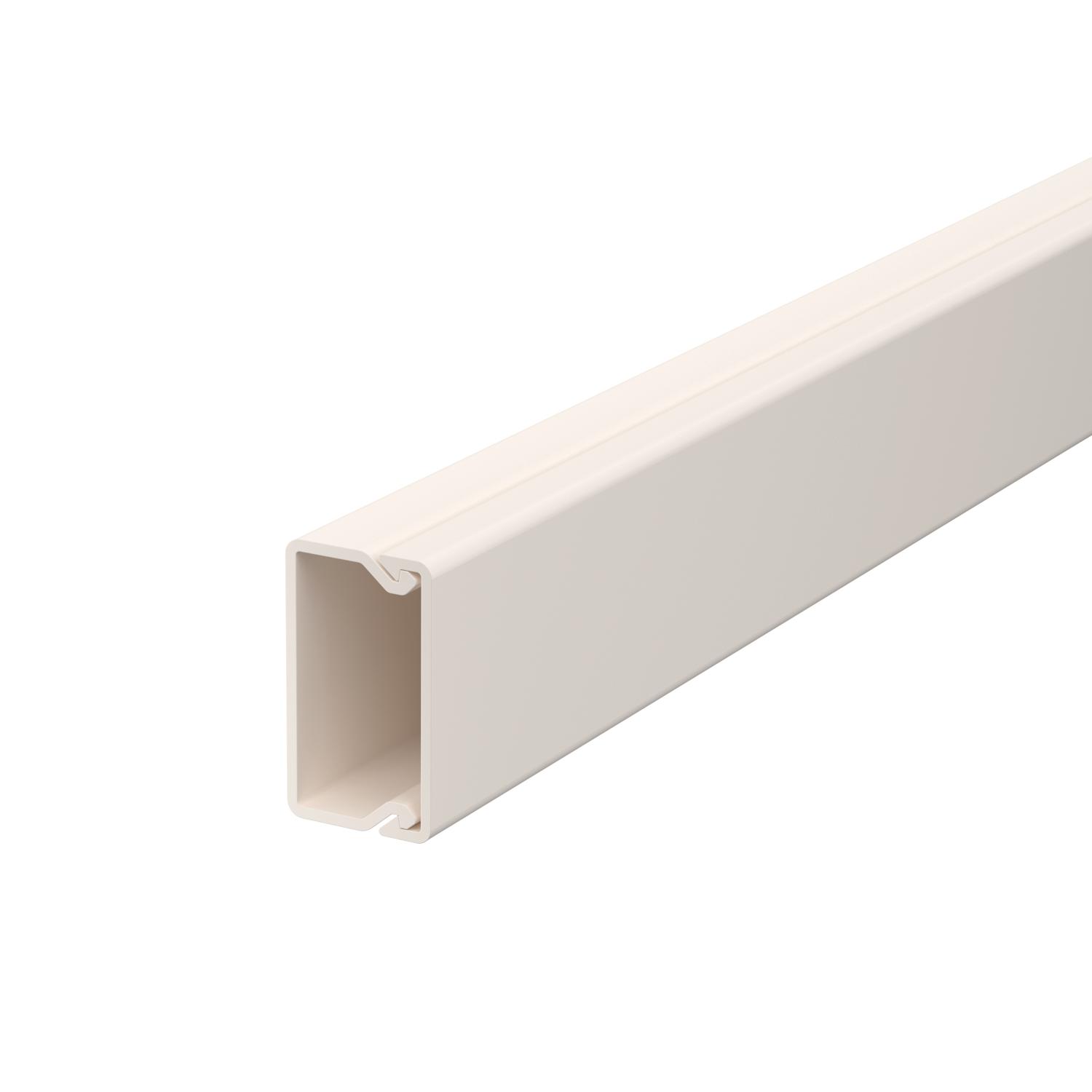

Trunking, type WDK 15030

All types
