Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,8829 kg CO2e / 1 Piece
Colour	Pure white; RAL 9010
Delivery on a roll	no
Dimension	15x30x2500
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	17,5 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	2
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	2
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	375 mm²
Version, cable trunking cover	Loose
Width	30 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK15030RW	2000 mm	30 mm	17.5 mm	Pure white; RAL 9010	6191010	m	32 m
WDK15030GR	2000 mm	30 mm	17.5 mm	Stone grey; RAL 7030	6025005	m	32 m
WDK15030CW	2000 mm	30 mm	17.5 mm	Cream; RAL 9001	6025013	m	32 m
WDK15030BR	2000 mm	30 mm	17.5 mm	Sepia brown; RAL 8014	6025021	m	32 m
WDK15030LGR	2000 mm	30 mm	17.5 mm	Light grey; RAL 7035	6025048	m	32 m
WDK15030SRW	2000 mm	30 mm	17.5 mm	Pure white; RAL 9010	6027325	m	32 m
WDK15030RW2500	2000 mm	30 mm	17.5 mm	Pure white; RAL 9010	6191013	piece	798 piece

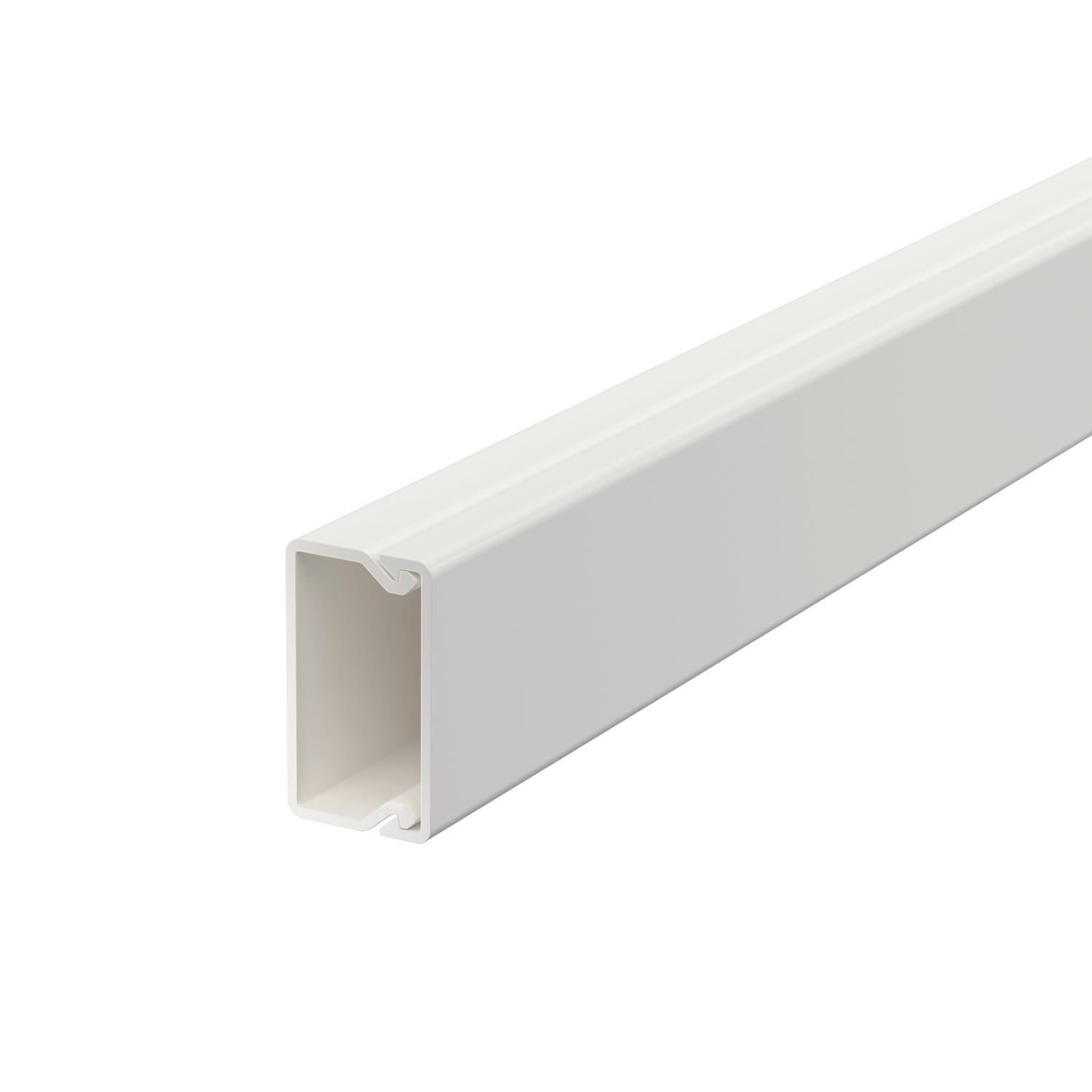

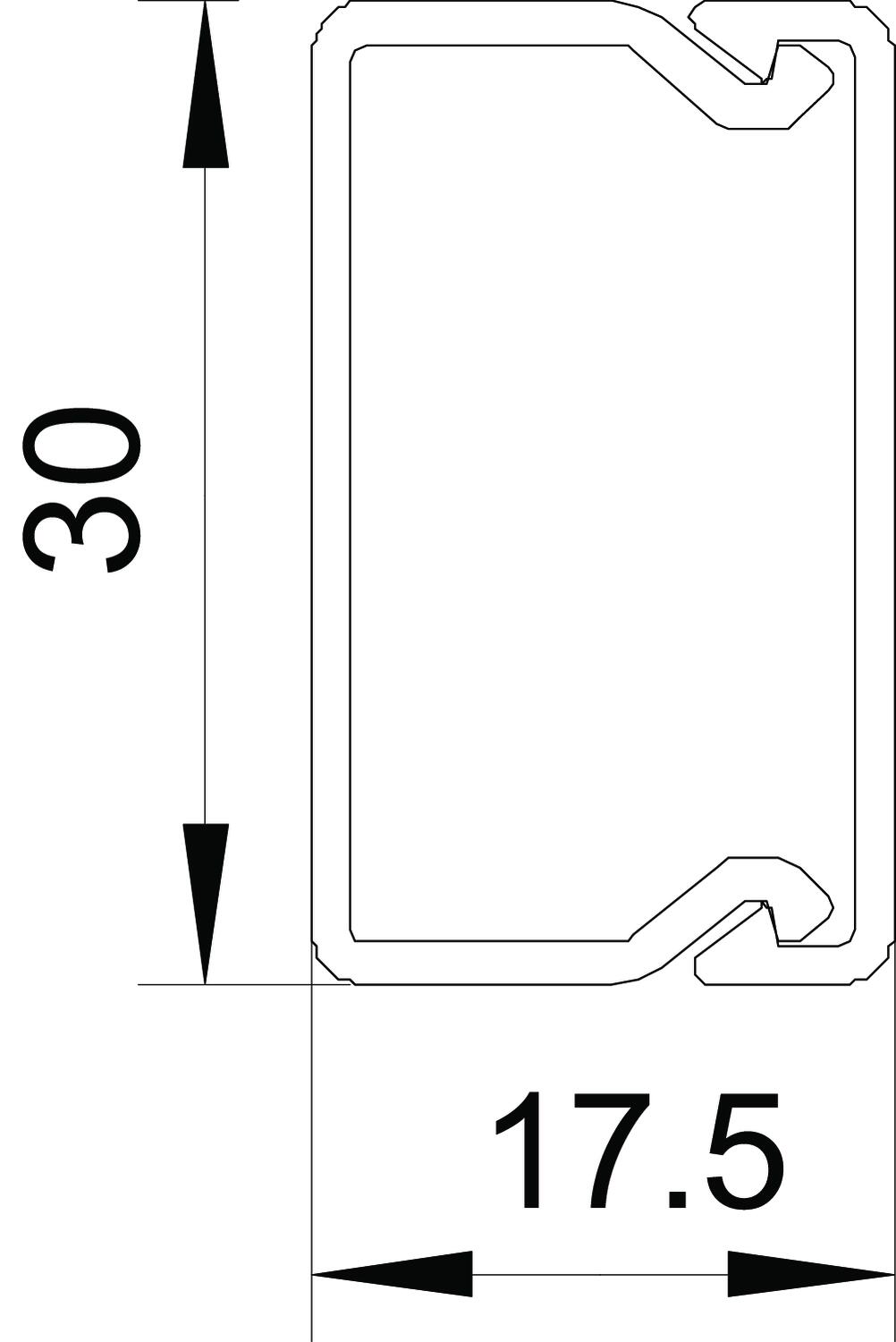

Trunking, type WDK 15030

All types
