Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,5717 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

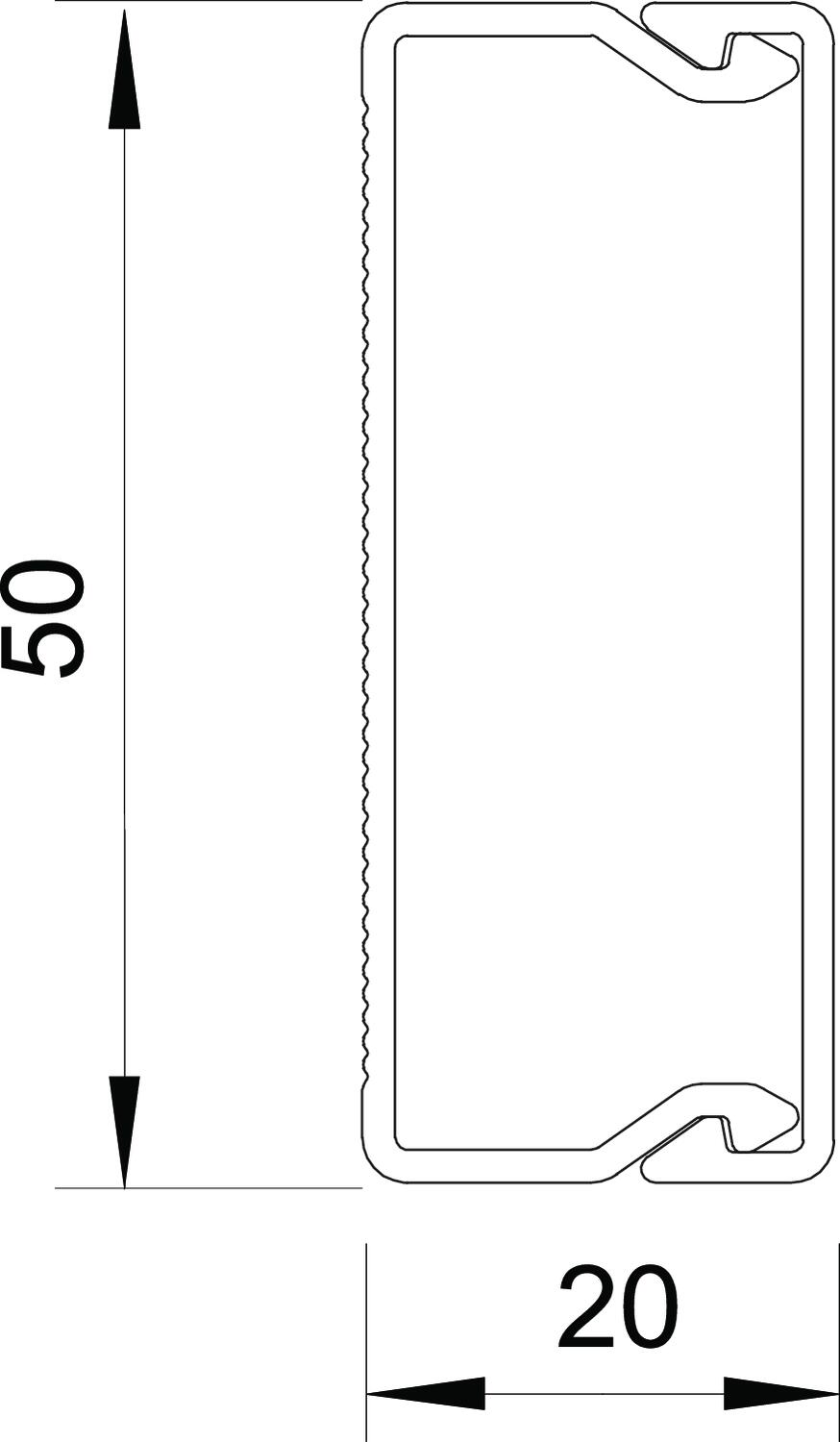

Dimension	20x50x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	20 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	5
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	4
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	4
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	785 mm²
Version, cable trunking cover	Loose
Width	50 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU

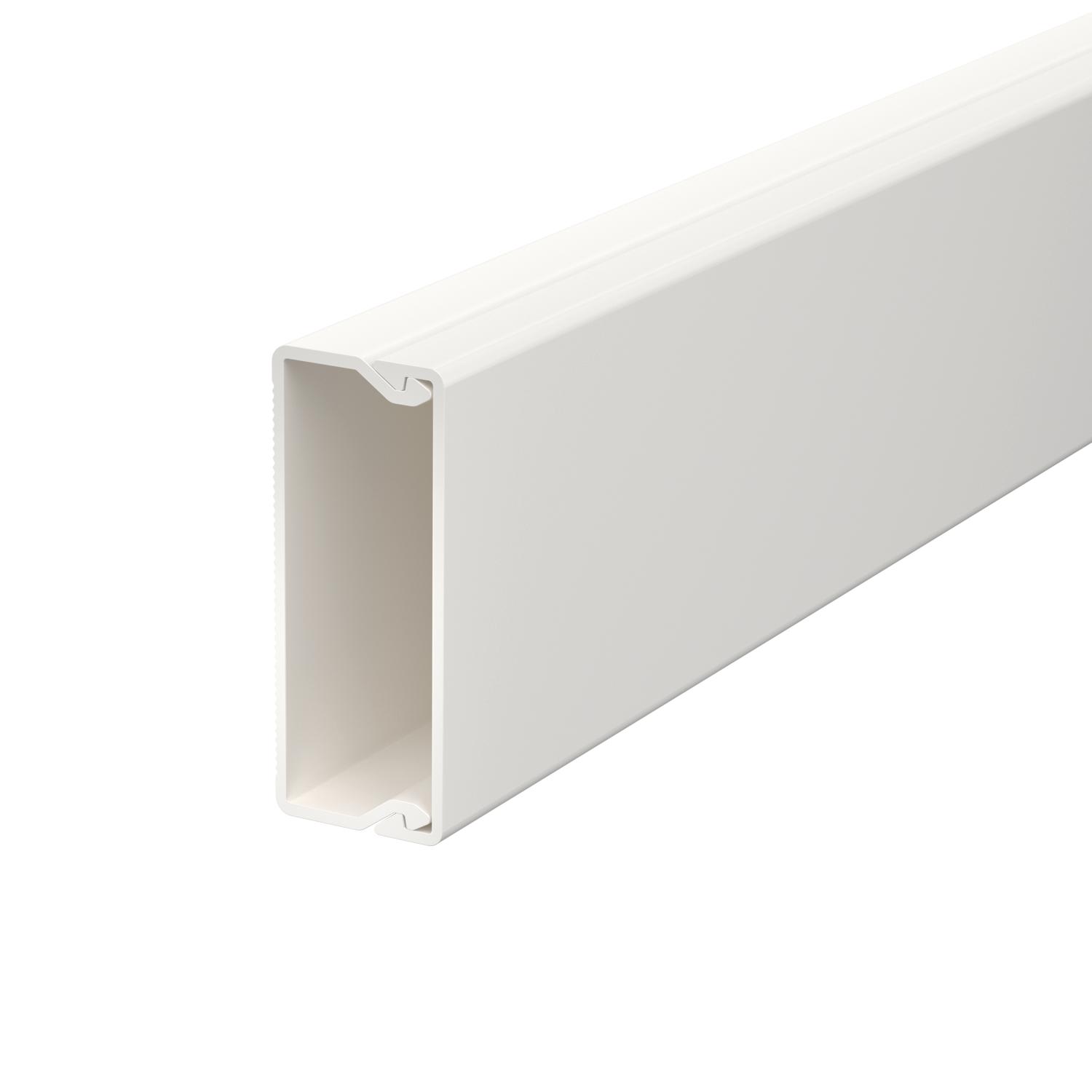

WDK20050RW	2000 mm	50 mm	20 mm	Pure white; RAL 9010	6168736	m	42 m
WDK20050CW	2000 mm	50 mm	20 mm	Cream; RAL 9001	6168701	m	42 m

Products	Types	Item no.	Quantity	SSU

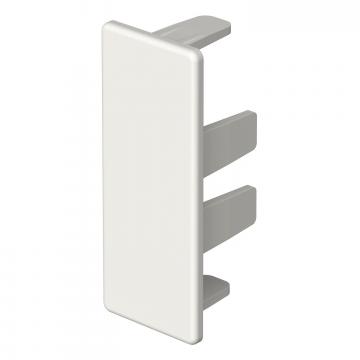

End piece, trunking type WDK 20050	WDK HE20050RW	6154557	piece	10 piece

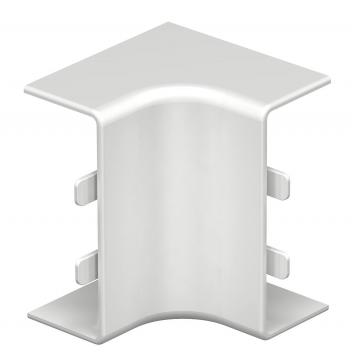

Internal corner cover, trunking type WDK 20050	WDK HI20050RW	6154360	piece	4 piece

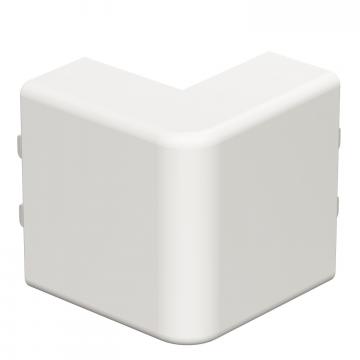

External corner cover, trunking type WDK 20050	WDK HA20050RW	6154468	piece	4 piece
Flat angle cover, trunking type WDK 20050	WDK HF20050RW	6154255	piece	4 piece

Trunking, type WDK 20050

All types
