Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,3756 kg CO2e / 1 Meter
Colour	Light grey; RAL 7035
Delivery on a roll	no

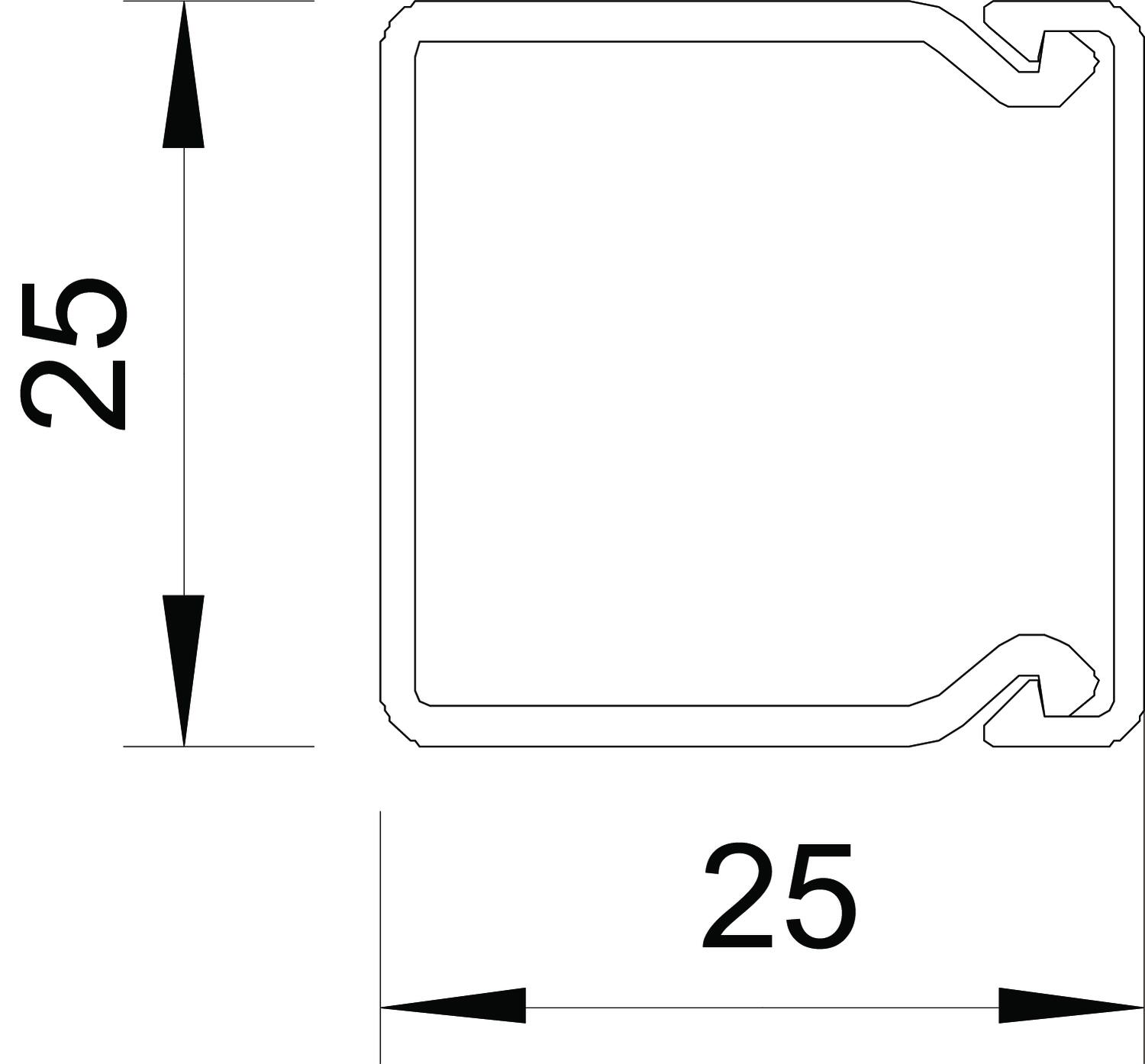

Dimension	25x25x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	25 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	2
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	2
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	460 mm²
Version, cable trunking cover	Loose
Width	25 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK25025RW	2000 mm	25 mm	25 mm	Pure white; RAL 9010	6191053	m	30 m
WDK25025LGR	2000 mm	25 mm	25 mm	Light grey; RAL 7035	6026400	m	30 m
WDK25025GR	2000 mm	25 mm	25 mm	Stone grey; RAL 7030	6026419	m	30 m
WDK25025CW	2000 mm	25 mm	25 mm	Cream; RAL 9001	6026427	m	30 m
WDK25025SRW	2000 mm	25 mm	25 mm	Pure white; RAL 9010	6027372	m	30 m

Products	Types	Item no.	Quantity	SSU

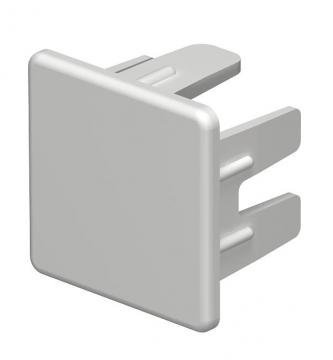

End piece, trunking type WDK 25025	WDK HE25025LGR	6183662	piece	10 piece

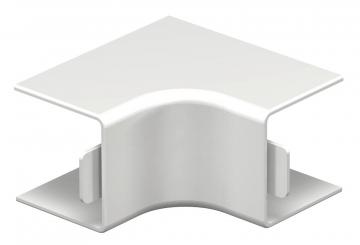

Internal corner cover, trunking type WDK 25025	WDK HI25025LGR	6182062	piece	4 piece

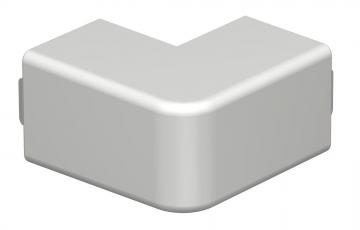

External corner cover, for trunking type WDK 25025	WDK HA25025LGR	6182445	piece	4 piece

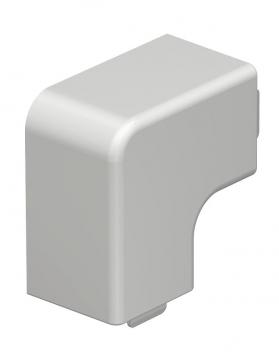

Flat angle cover, trunking type WDK 25025	WDK HF25025LGR	6183255	piece	4 piece

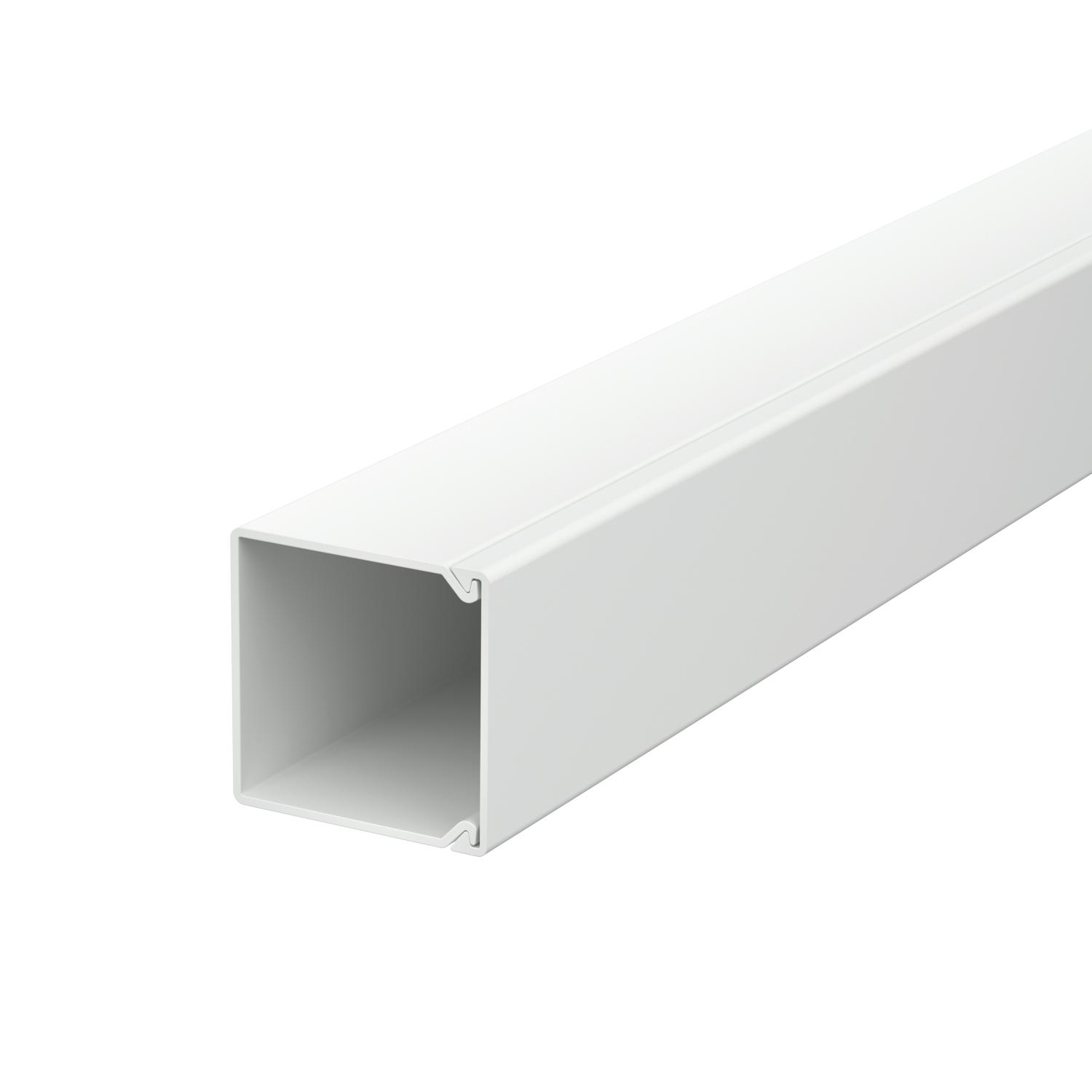

Trunking, type WDK 25025

All types
