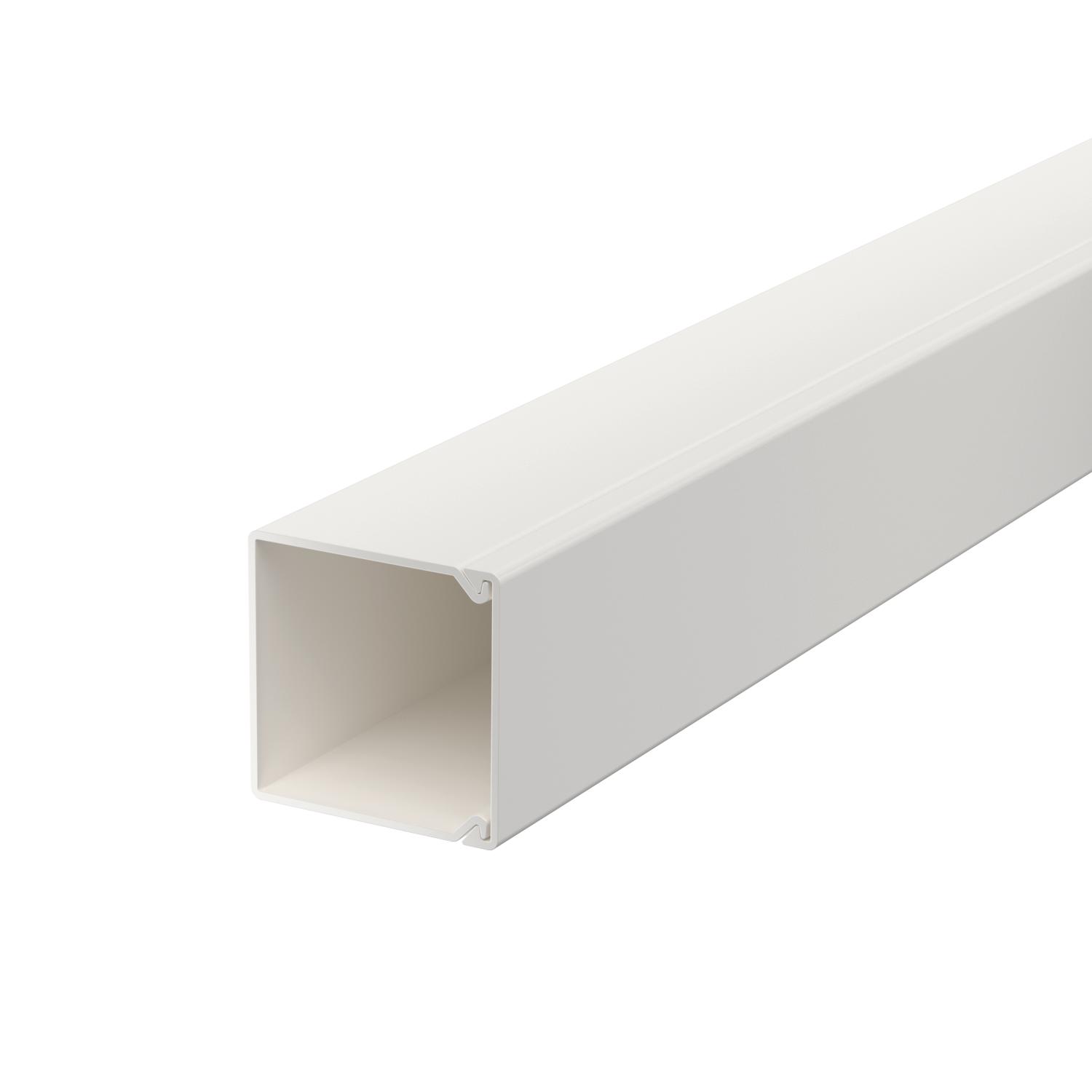

Trunking, type WDK 25025S with adhesive film

Item no. / Types

Length	2000 mm

Width	25 mm

Height	25 mm

Colour

Product description

Product description

Wall and ceiling trunking with base perforation and adhesive film consisting of cover and base for mounting directly on the wall.

Technical data

Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,8304 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

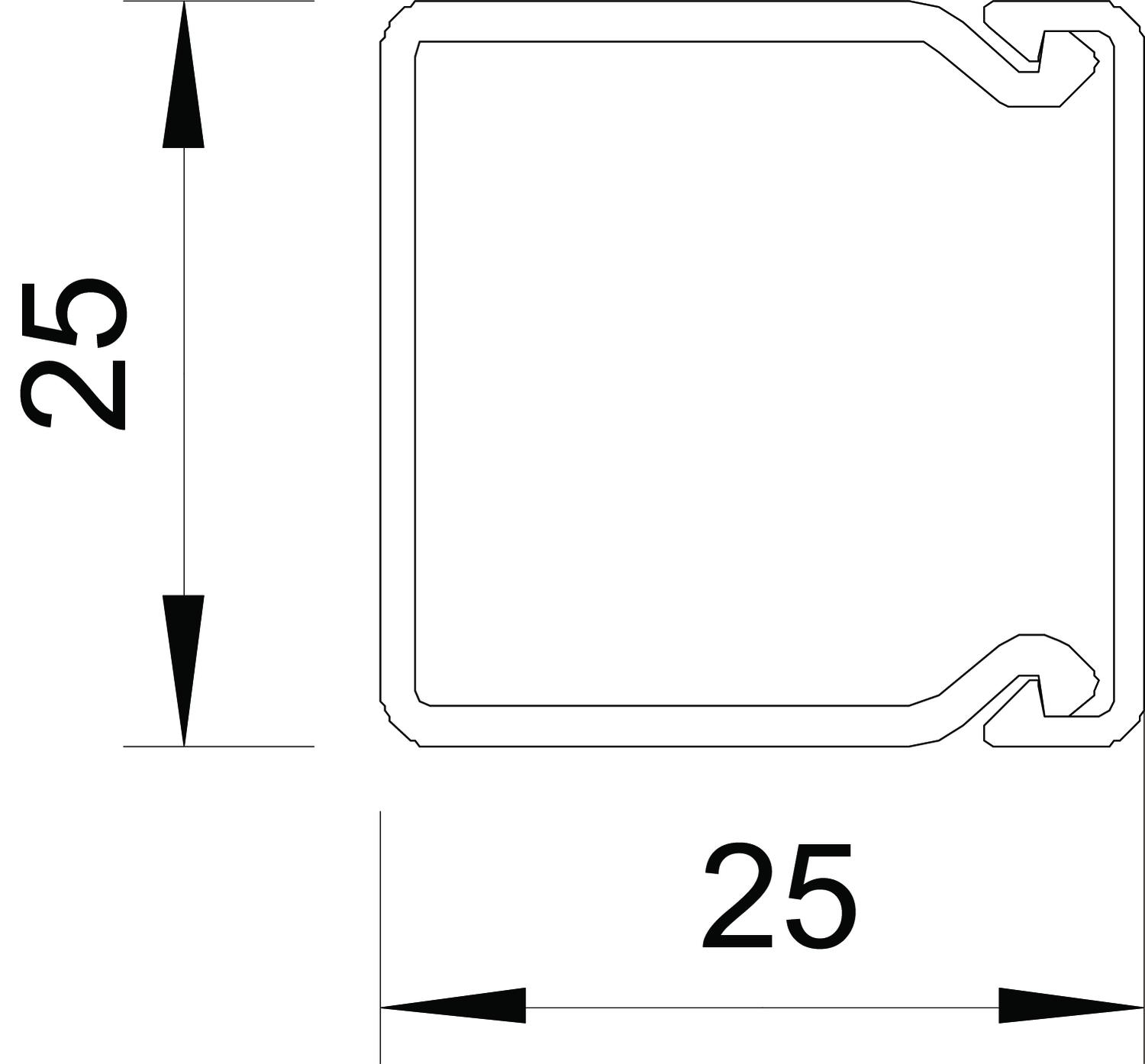

Dimension	25x25x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	25 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	2
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	2
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	460 mm²
Version, cable trunking cover	Loose
Width	25 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK25025RW	2000 mm	25 mm	25 mm	Pure white; RAL 9010	6191053	m	30 m
WDK25025LGR	2000 mm	25 mm	25 mm	Light grey; RAL 7035	6026400	m	30 m
WDK25025GR	2000 mm	25 mm	25 mm	Stone grey; RAL 7030	6026419	m	30 m
WDK25025CW	2000 mm	25 mm	25 mm	Cream; RAL 9001	6026427	m	30 m
WDK25025SRW	2000 mm	25 mm	25 mm	Pure white; RAL 9010	6027372	m	30 m
