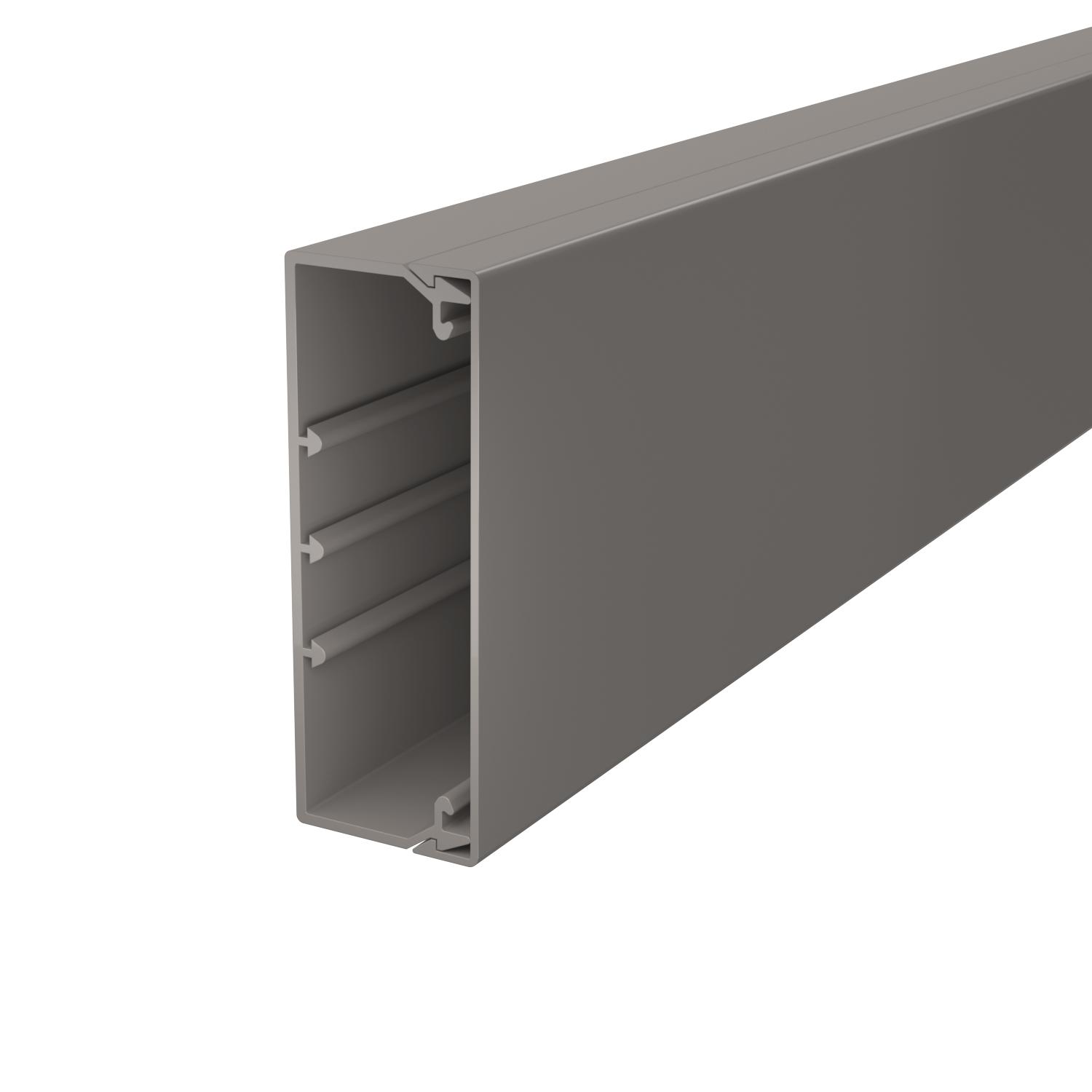

Trunking, type WDK 40110

Item no. / Types

Length	2000 mm

Width	110 mm

Height	40 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover clips included
Lid clamp can be moved along the entire length of the trunking.

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	2,084 kg CO2e / 1 Meter
Colour	Stone grey; RAL 7030
Delivery on a roll	no

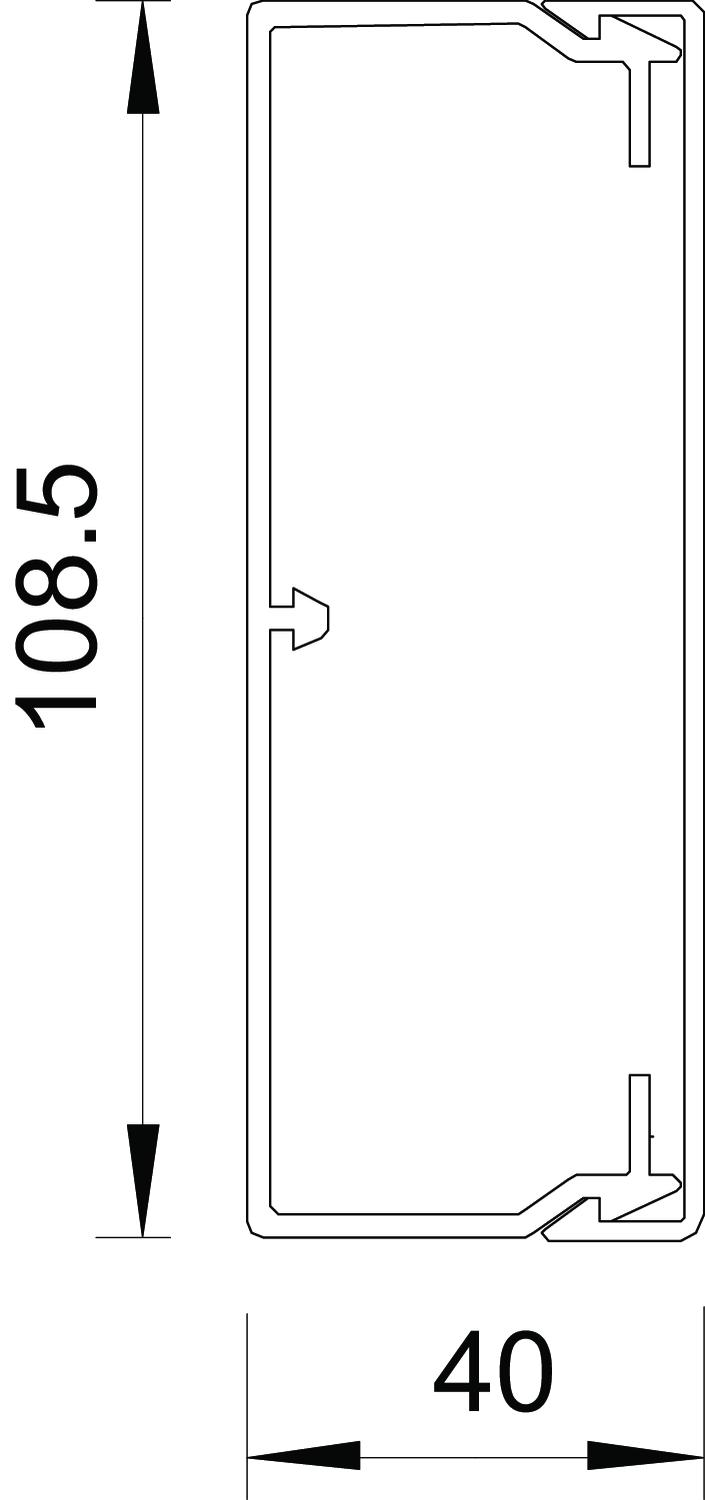

Dimension	40x110x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	40 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	18
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	15
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	14
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	3236 mm²
Version, cable trunking cover	Loose
Width	110 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK40110RW	2000 mm	110 mm	40 mm	Pure white; RAL 9010	6191150	m	24 m
WDK40110CW	2000 mm	110 mm	40 mm	Cream; RAL 9001	6020909	m	24 m
WDK40110GR	2000 mm	110 mm	40 mm	Stone grey; RAL 7030	6021034	m	24 m
WDK40110LGR	2000 mm	110 mm	40 mm	Light grey; RAL 7035	6027040	m	24 m

Accessories

Products	Types	Item no.	Quantity	SSU

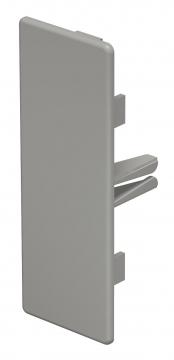

End piece, trunking type WDK 40110	WDK HE40110GR	6021514	piece	10 piece

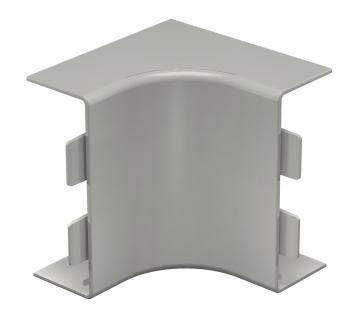

Internal corner cover, trunking type WDK 40110	WDK HI40110GR	6021727	piece	2 piece

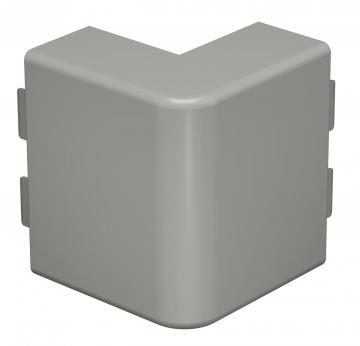

External corner cover, trunking type WDK 40110	WDK HA40110GR	6021700	piece	2 piece

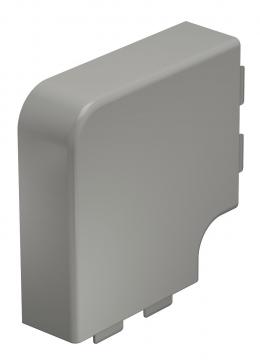

Flat angle cover, trunking type WDK 40110	WDK HF40110GR	6021743	piece	2 piece
Partition for WDK trunking, trunking height 40 mm	2371 40	6023096	m	2 m
Cover clip for WDK trunking, trunking width 110 mm	2370 110	6023517	piece	20 piece
