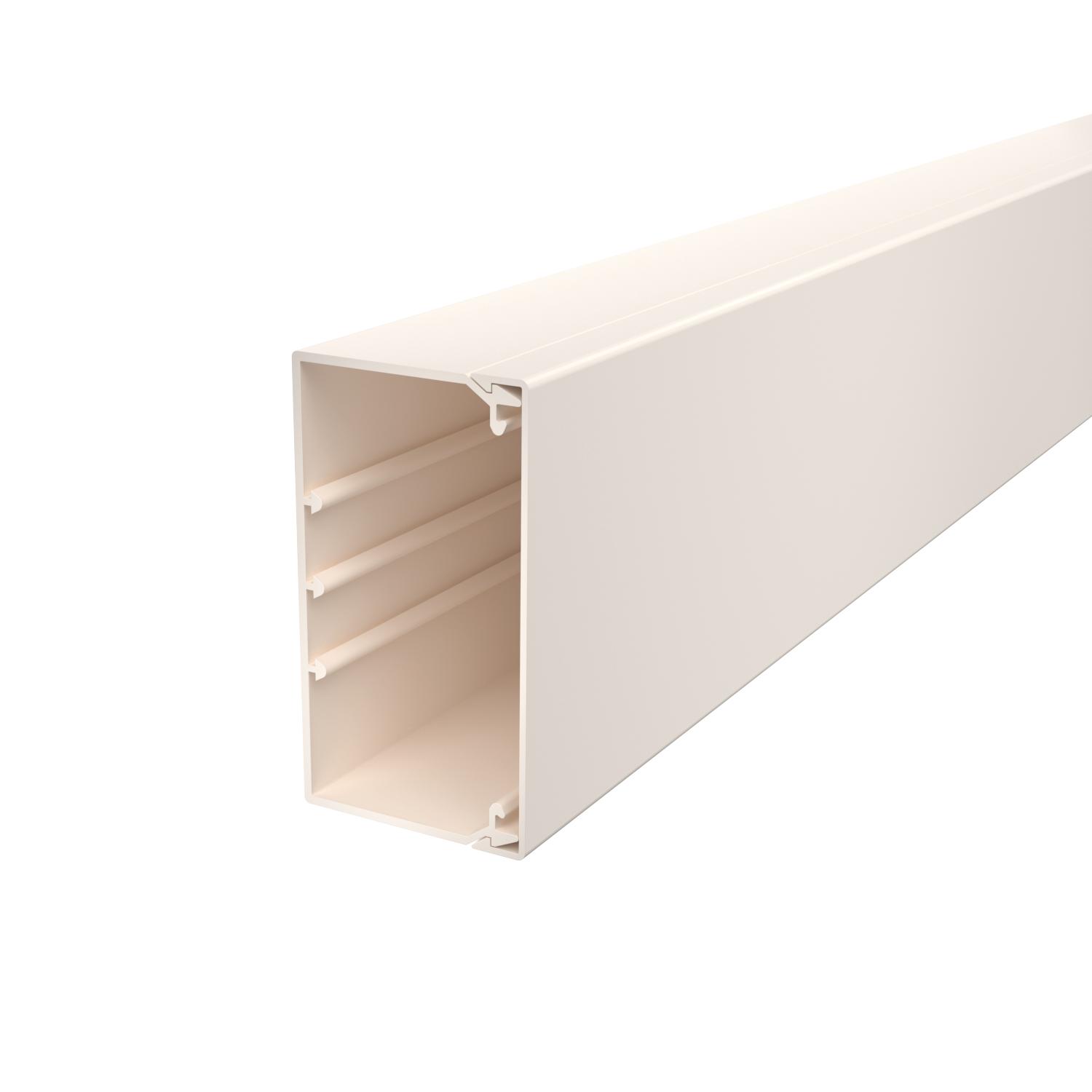

Trunking, type WDK 60110 2000 | 108.5 | 60.3 | Cream; RAL 9001

Trunking, type WDK 60110

Item no. 6021840 | EAN 4012196019816

Item no. / Types

Length	2000 mm

Width	108.5 mm

Height	60.3 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	2,3523 kg CO2e / 1 Meter
Colour	Cream; RAL 9001
Delivery on a roll	no

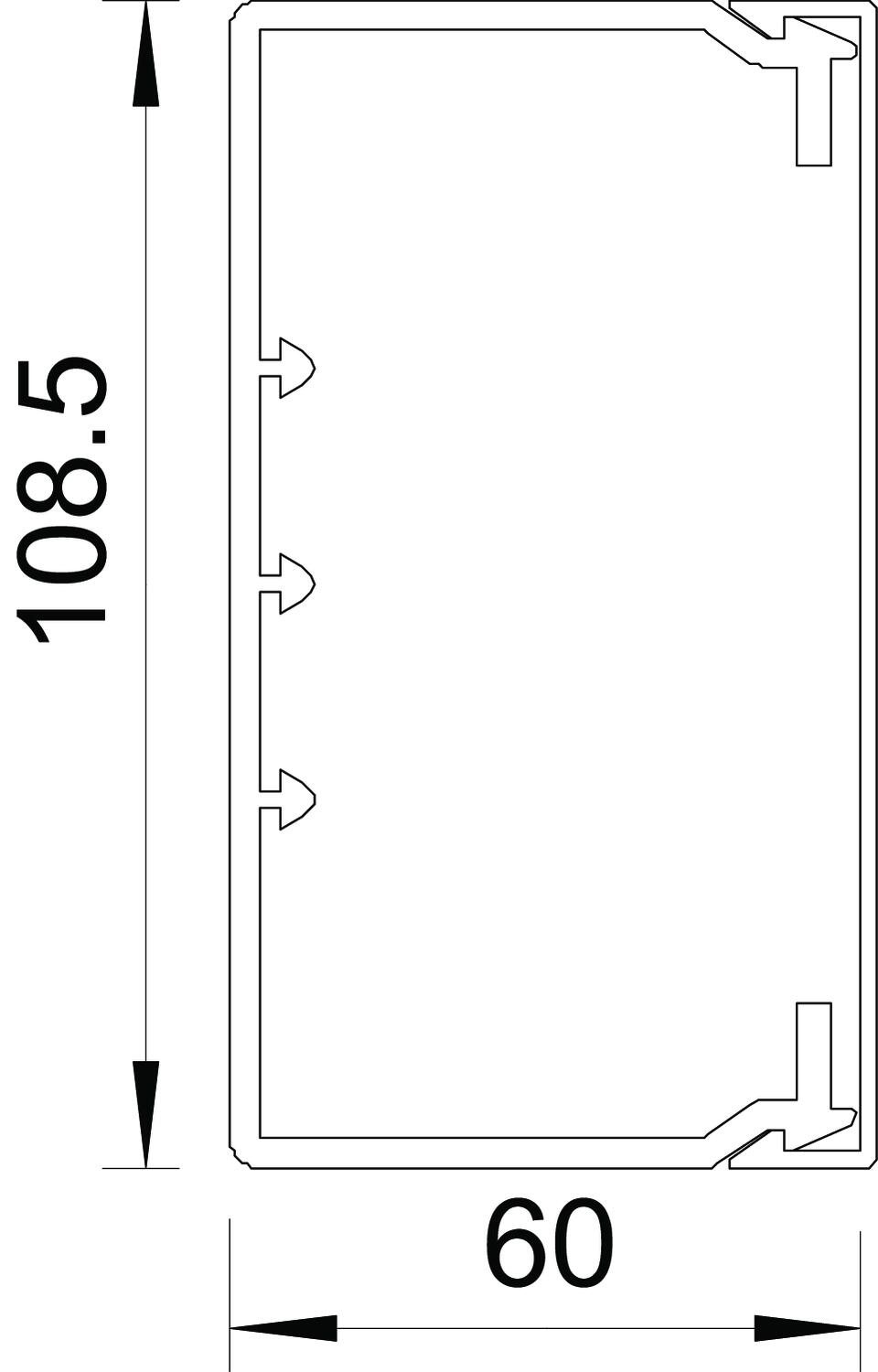

Dimension	60x110x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	60,3 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	29
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	24
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	22
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	5076 mm²
Version, cable trunking cover	Loose
Width	108,5 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60110RW	2000 mm	108.5 mm	60.3 mm	Pure white; RAL 9010	6191215	m	16 m
WDK60110CW	2000 mm	108.5 mm	60.3 mm	Cream; RAL 9001	6021840	m	16 m
WDK60110GR	2000 mm	108.5 mm	60.3 mm	Stone grey; RAL 7030	6022014	m	16 m
WDK60110LGR	2000 mm	108.5 mm	60.3 mm	Light grey; RAL 7035	6027121	m	16 m
WDK60110SW	2000 mm	108.5 mm	60.3 mm	Jet black; RAL 9005	6022018	m	16 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

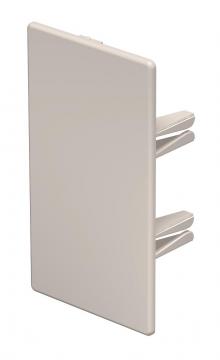

End piece, trunking type WDK 60110	WDK HE60110CW	6162827	piece	10 piece

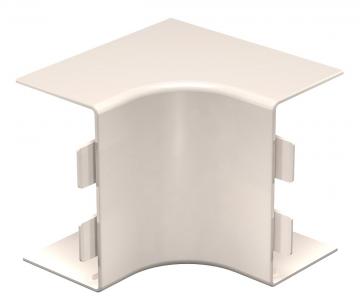

Internal corner cover, trunking type WDK 60110	WDK HI60110CW	6160336	piece	2 piece

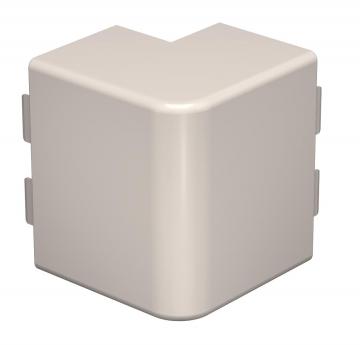

External corner cover, trunking type WDK 60110	WDK HA60110CW	6160921	piece	2 piece

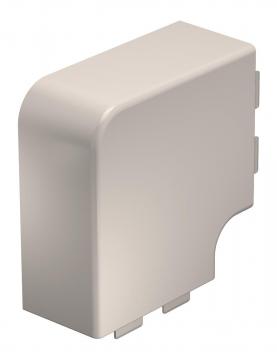

Flat angle cover, trunking type WDK 60110	WDK HF60110CW	6161529	piece	2 piece

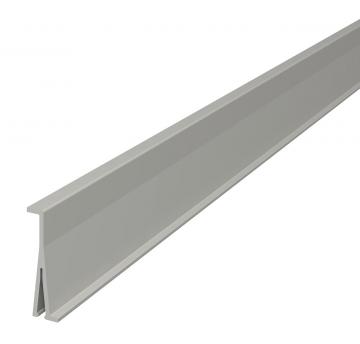

Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m

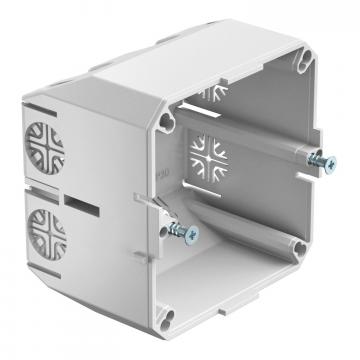

WDK device socket, type 2390	2390	6023207	piece	5 piece

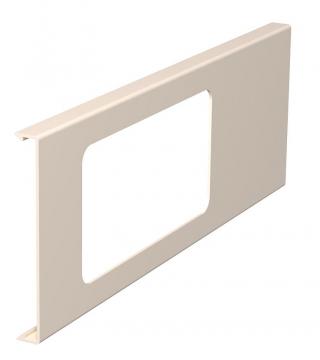

Cover for double accessory mounting box for WDK trunking, trunking height 110 mm	D2-2 110CW	6169376	piece	10 piece

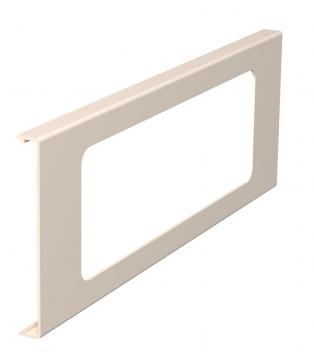

Cover for triple accessory mounting box for WDK trunking, trunking height 110 mm	D2-3 110CW	6169430	piece	10 piece

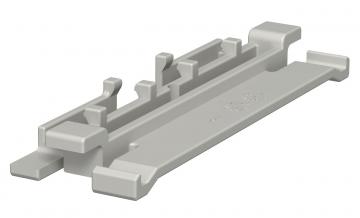

Cover clip for WDK trunking, trunking width 110 mm	2370 110	6023517	piece	20 piece
