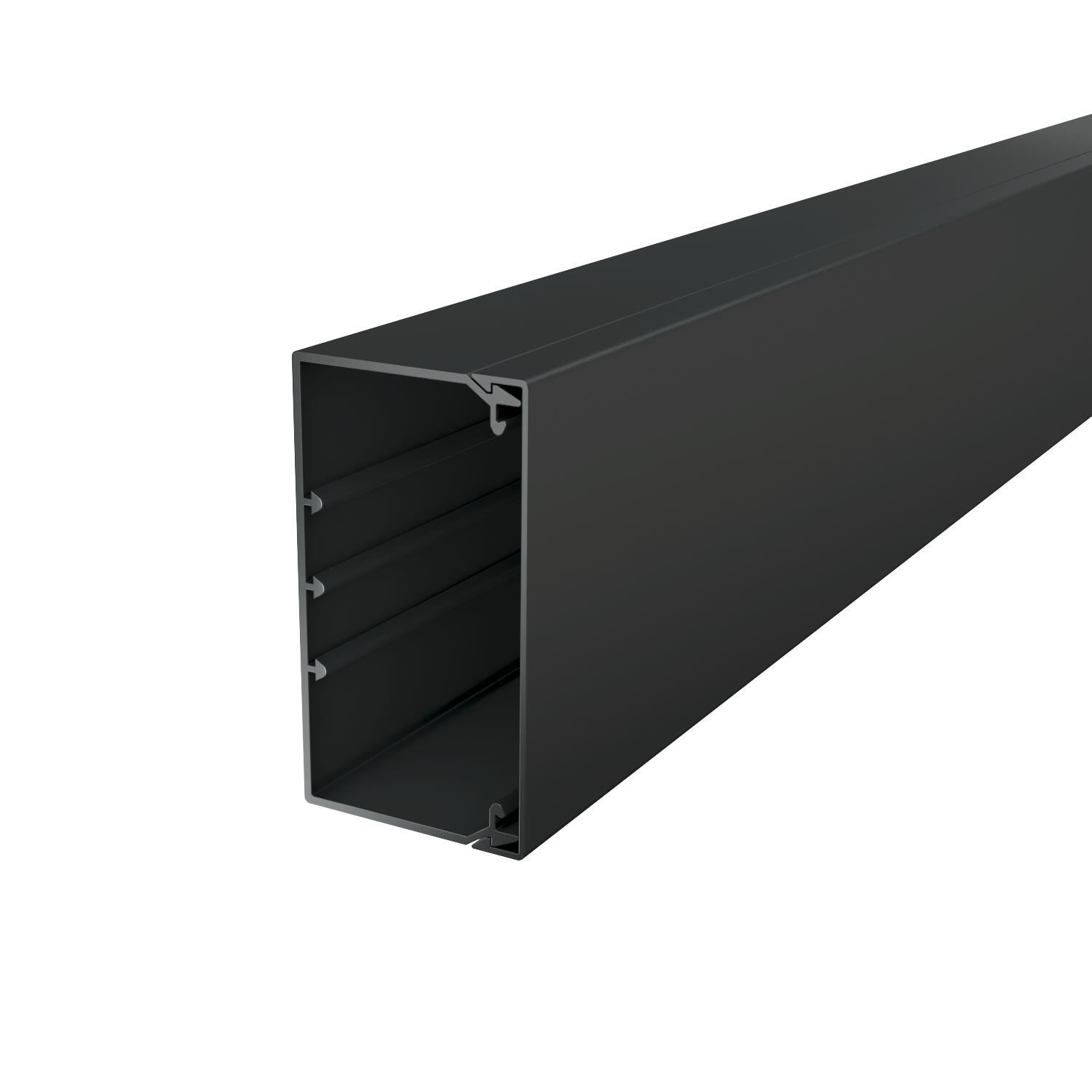

Trunking, type WDK 60110 2000 | 108.5 | 60.3 | Jet black; RAL 9005

Trunking, type WDK 60110

Item no. 6022018 | EAN 4012196998395

Item no. / Types

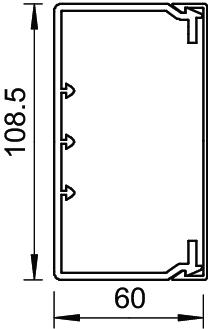

Length	2000 mm

Width	108.5 mm

Height	60.3 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.

Technical data

Technical data

Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	2,374 kg CO2e / 1 Meter
Colour	Jet black; RAL 9005
Delivery on a roll	no
Dimension	2000x110x60
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	60,3 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	29
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	24
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	22
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protective film	no
Usable cross-section	5076 mm²
Version, cable trunking cover	Loose
Width	108,5 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60110RW	2000 mm	108.5 mm	60.3 mm	Pure white; RAL 9010	6191215	m	16 m
WDK60110CW	2000 mm	108.5 mm	60.3 mm	Cream; RAL 9001	6021840	m	16 m
WDK60110GR	2000 mm	108.5 mm	60.3 mm	Stone grey; RAL 7030	6022014	m	16 m
WDK60110LGR	2000 mm	108.5 mm	60.3 mm	Light grey; RAL 7035	6027121	m	16 m
WDK60110SW	2000 mm	108.5 mm	60.3 mm	Jet black; RAL 9005	6022018	m	16 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

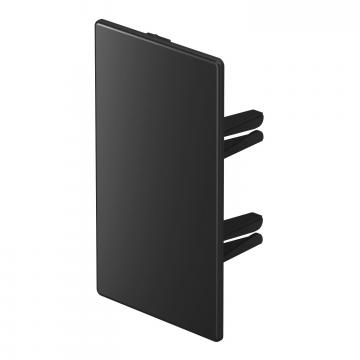

End piece, trunking type WDK 60110	WDK HE60110SW	6191812	piece	10 piece

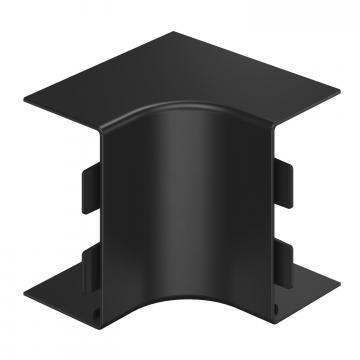

Internal corner cover, trunking type WDK 60110	WDK HI60110SW	6191764	piece	2 piece

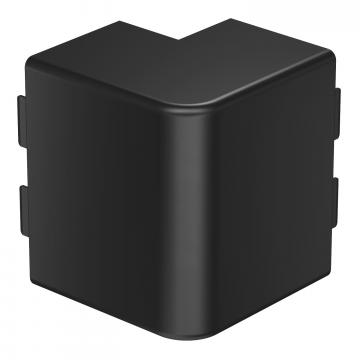

External corner cover, trunking type WDK 60110	WDK HA60110SW	6191778	piece	2 piece

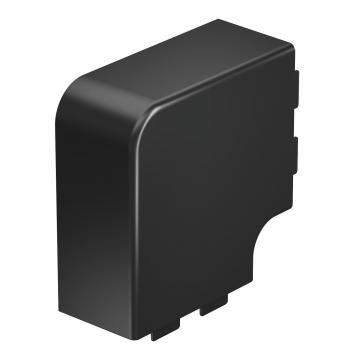

Flat angle cover, trunking type WDK 60110	WDK HF60110SW	6191794	piece	2 piece
Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m
WDK device socket, type 2390	2390	6023207	piece	5 piece
Cover clip for WDK trunking, trunking width 110 mm	2370 110	6023517	piece	20 piece
