Wafer-head screw for roof hooks 100 | 8
morepic-1 morepic-2 video-1 video-2

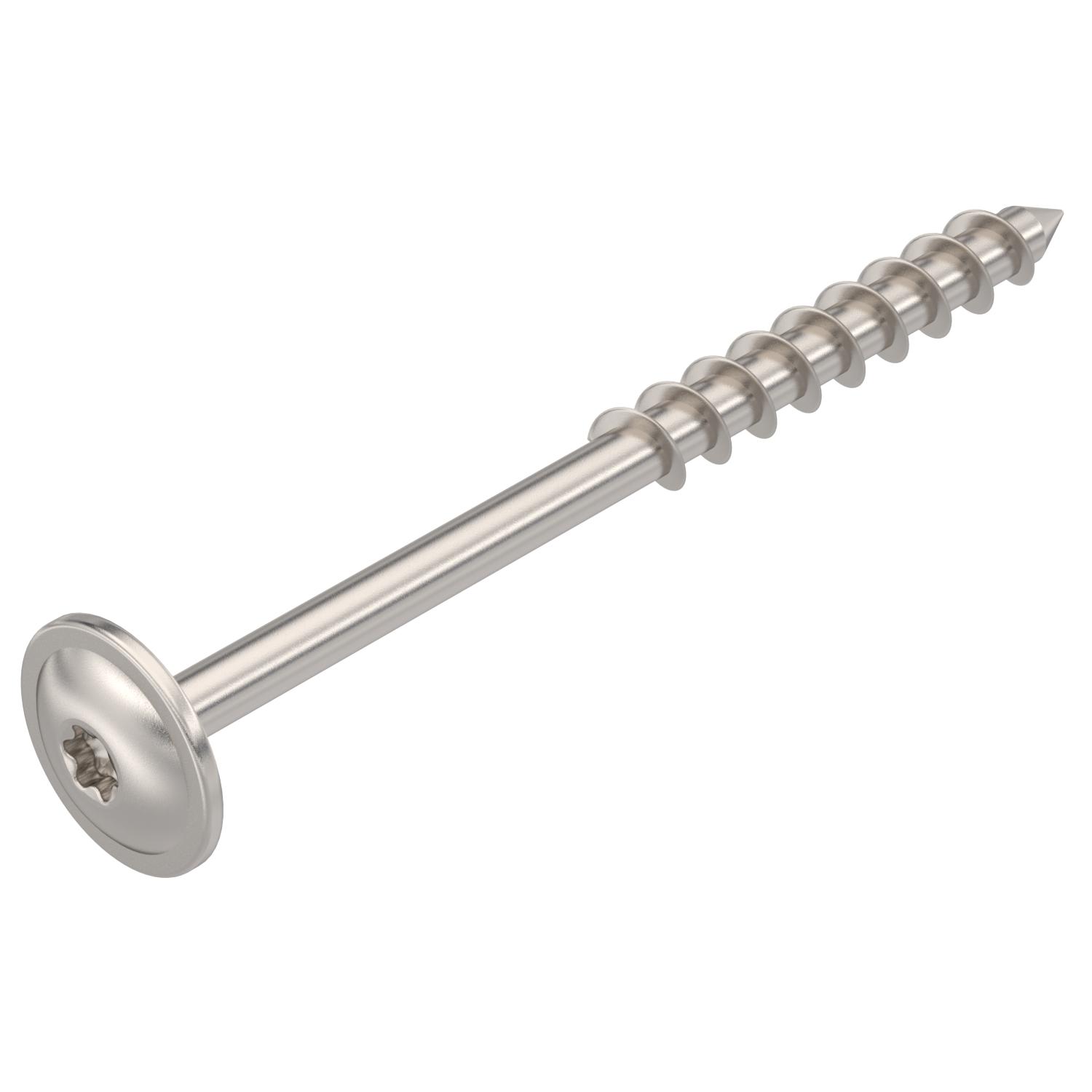

Wafer-head screw for roof hooks

Item no. 5901800 | EAN 4012197371920

8 mm
Product description
Product description
Wafer-head screw for fastening roof hooks to rafters when mounting photovoltaic modules on pitched roofs. Matching Torx 40 key.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

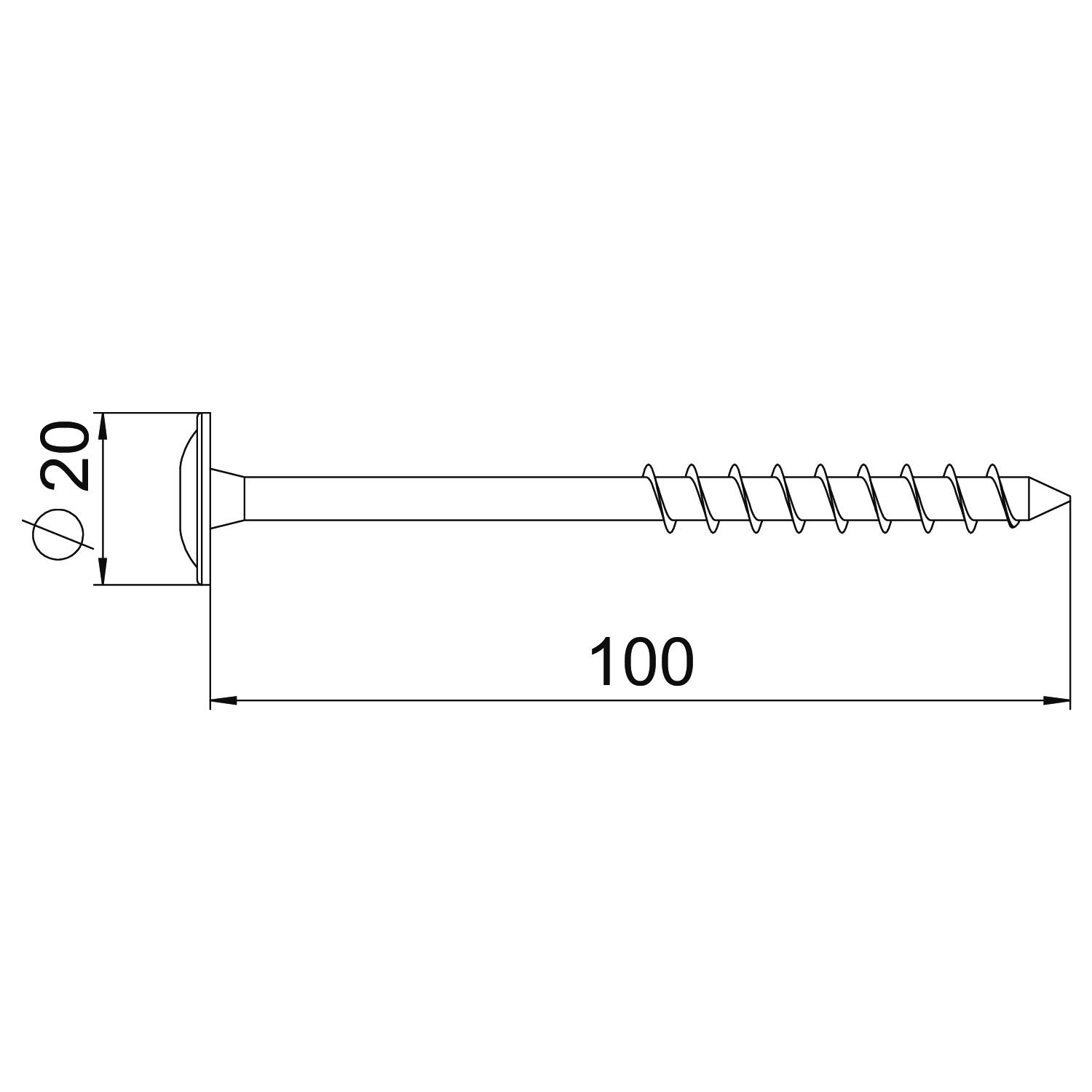

Colour stainless steel
Diameter 20 mm
Dimension 8x100
Dimension D 8 mm
Dimension L 103,4 mm
Head diameter 20 mm
Head shape Plate head
Length 100 mm
Material Stainless steel 1.4301
Screw system Torx
Shank diameter 5,2 mm
All types

All types

Types Length Dimension D Item no. Quantity SSU
TKS 8x100 A2 100 mm 8 mm 5901800
1 piece
TKS 8x120 A2 120 mm 8 mm 5901802
1 piece
TKS 8x200 A2 200 mm 8 mm 5901804
1 piece
Downloads

Download

Download

Download

No invitation to tender text is available for this product.
