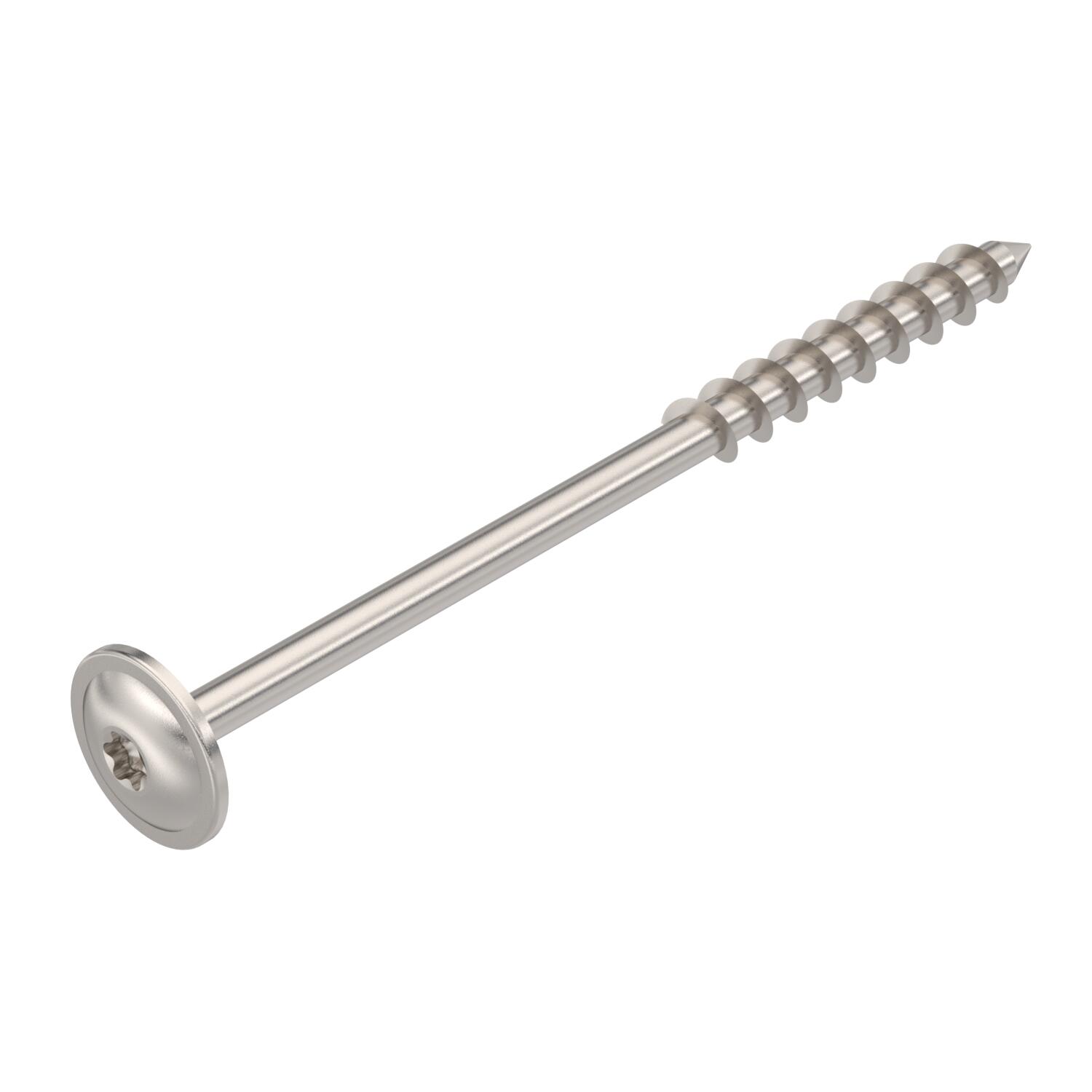

Wafer-head screw for roof hooks
Item no. 5901802 | EAN 4012197371968
- Product description
-
Product descriptionWafer-head screw for fastening roof hooks to rafters when mounting photovoltaic modules on pitched roofs. Matching Torx 40 key.
-
- Technical data
-
Technical data

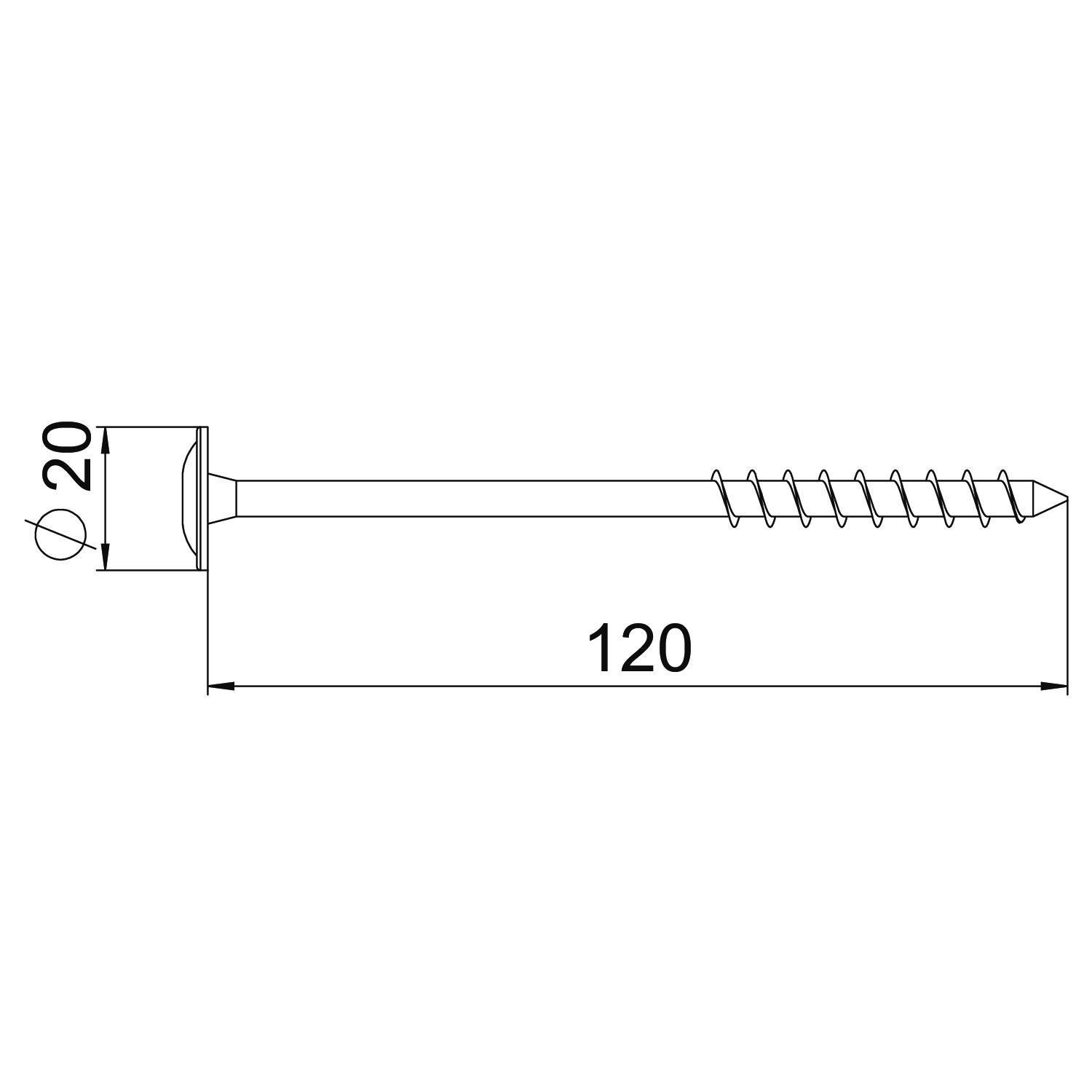

Colour stainless steel Diameter 20 mm Dimension 8x120 Dimension D 8 mm Dimension L 123,4 mm Head diameter 20 mm Head shape Plate head Length 120 mm Material Stainless steel 1.4301 Screw system Torx Shank diameter 5,2 mm Two-compartment no - All types
- Downloads
-
Data sheet TKS 8x120 A2 / 5901802 , 0.15MB , pdfMounting instructions PV mounting systems for pitched roofs , 4.03MB , pdfNo invitation to tender text is available for this product.
