Cross-connector for TP support profiles, free-standing system

Item no. 5901255 | EAN 4012197394523

Product description
Product description

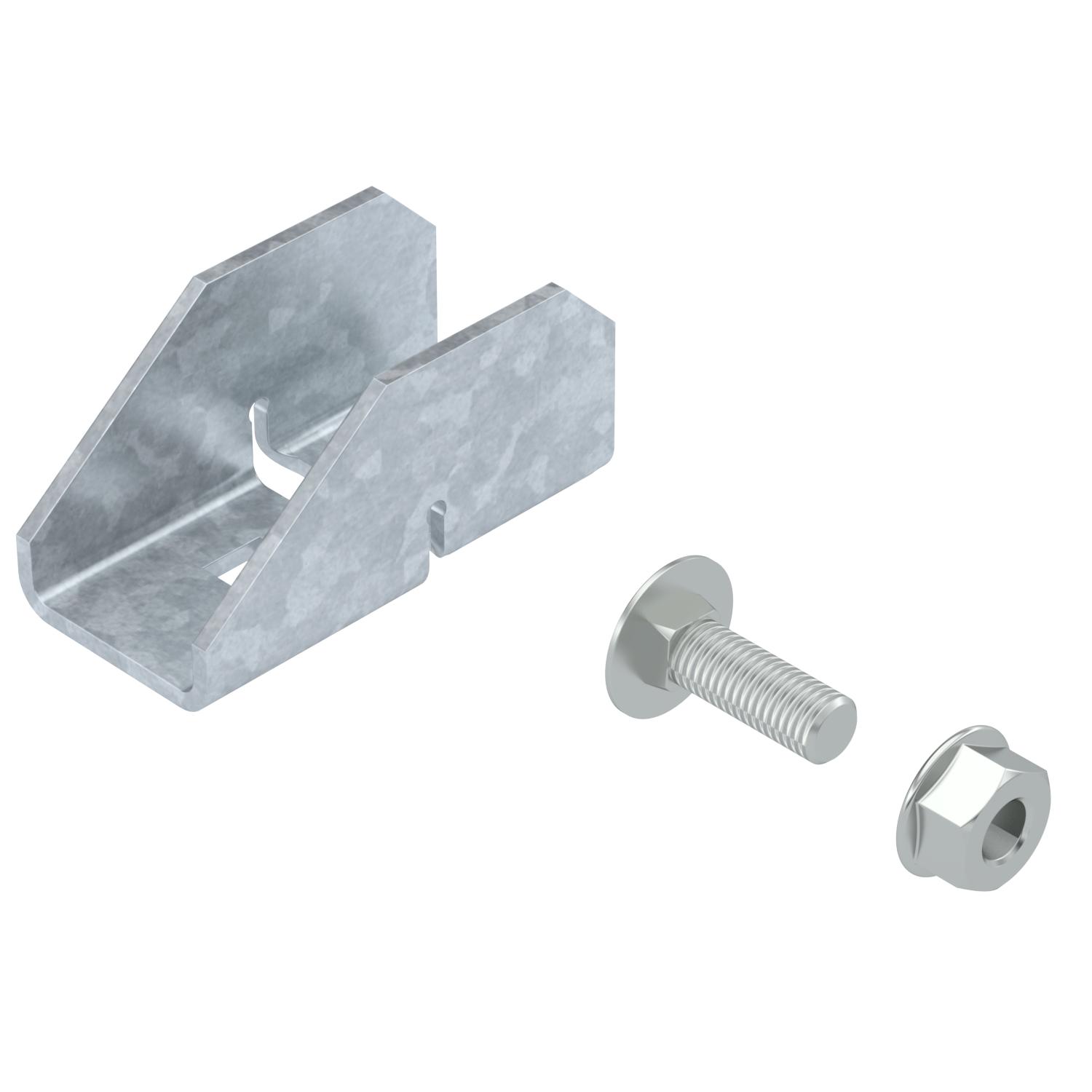

Cross-connector to connect support profiles for free-standing photovoltaic systems. Fastening with pre-installed M12 screw, screw-on with Torx 40 wrench.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Adjustable no
CO2 Footprint (GWP) Cradle-to-Gate 0,9953 kg CO2e / 1 Piece
Colour zinc
Depth 80 mm

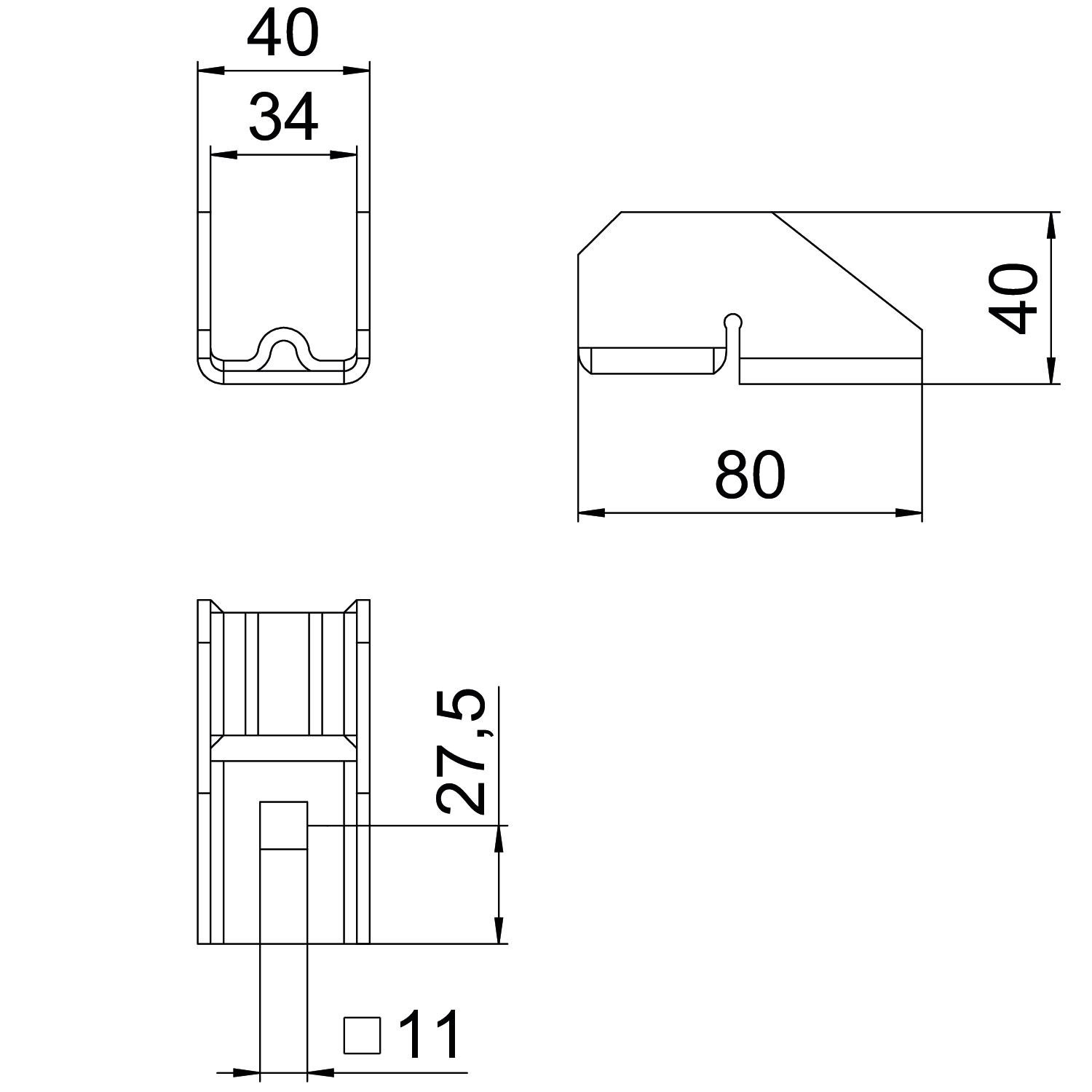

Dimension 40x40x80
Height 40 mm
Material Steel
Photovoltaic connection and fastening element version Cross-connectors
Surface Hot-dip galvanised
Width 40 mm
With module earthing no
All types

All types

Types Item no. Quantity SSU
KV FT 5901255
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1000 FT 5900500
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1010 FT 5900502
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1020 FT 5900504
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1030 FT 5900506
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1040 FT 5900508
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1050 FT 5900510
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1060 FT 5900512
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1100 FT 5900520
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1140 FT 5900522
1 piece
Support profile for PV module mounting, free-standing system Support profile for PV module mounting, free-standing system TP 1310 FT 5900530
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 10S FT 5901550
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 10M FT 5901552
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 10L FT 5901554
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 25S FT 5901556
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 25M FT 5901558
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 25L FT 5901560
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 30S FT 5901562
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 30M FT 5901564
1 piece
Pre-mounted supports for PV module mounting, free-standing system Pre-mounted supports for PV module mounting, free-standing system VT 30L FT 5901566
1 piece
