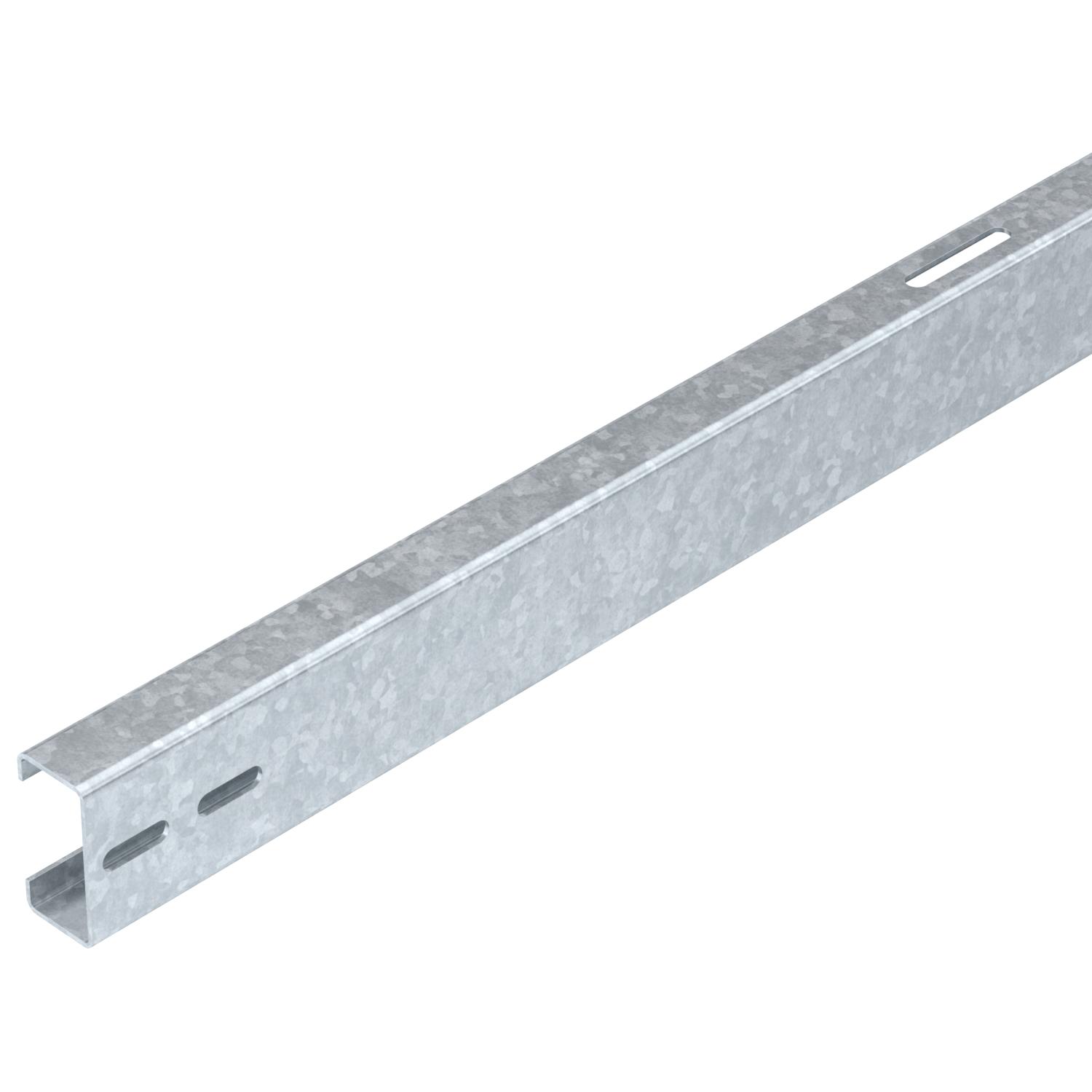

Support profile for PV module mounting, free-standing system

Item no. 5900530 | EAN 4012197397029

Item no. / Types

Length

Product description

Product description

Support profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.

Technical data

Technical data

Cable duct optional	no
Cable duct, integrated	no
CO2 Footprint (GWP) Cradle-to-Gate	41,5322 kg CO2e / 1 Piece
Colour	zinc

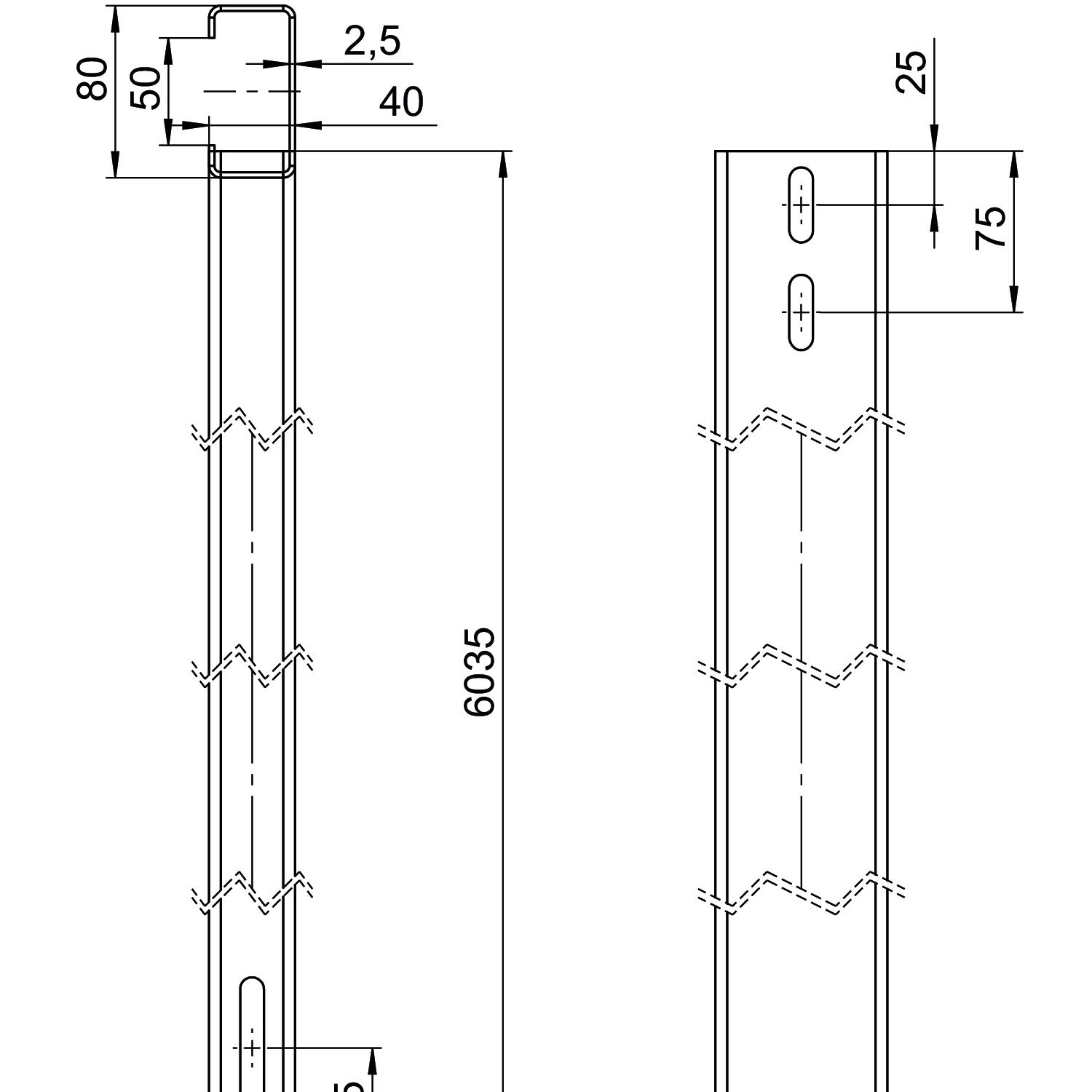

Dimension	40x80x6035
Height	80 mm
Length	6035 mm

Material	Steel
Module width max.	1310 mm
Module width min.	1300 mm
Section modulus Sx	10600 mm³
Section modulus Sy	5200 mm³
Surface	Hot-dip galvanised
Width	40 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
TP 1000 FT	5650 mm	5900500	piece	1 piece
TP 1010 FT	5705 mm	5900502	piece	1 piece
TP 1020 FT	5760 mm	5900504	piece	1 piece
TP 1030 FT	5815 mm	5900506	piece	1 piece
TP 1040 FT	5780 mm	5900508	piece	1 piece
TP 1060 FT	5980 mm	5900512	piece	1 piece
TP 1100 FT	5090 mm	5900520	piece	1 piece
TP 1140 FT	5270 mm	5900522	piece	1 piece
TP 1310 FT	6035 mm	5900530	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Pre-mounted supports for PV module mounting, free-standing system	VT 10S FT	5901550	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 10M FT	5901552	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 10L FT	5901554	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 25S FT	5901556	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 25M FT	5901558	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 25L FT	5901560	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 30S FT	5901562	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 30M FT	5901564	piece	1 piece
Pre-mounted supports for PV module mounting, free-standing system	VT 30L FT	5901566	piece	1 piece
Straight connector for support profiles, free-standing system	LV FT	5901215	piece	1 piece
Cross-connector for TP support profiles, free-standing system	KV FT	5901255	piece	1 piece
Intermediate clamp for PV module mounting, free-standing system	KLZ 2030 A2	5901050	piece	1 piece
Intermediate clamp for PV module mounting, free-standing system	KLZ 3040 A2	5901054	piece	1 piece
Intermediate clamp for PV module mounting, free-standing system	KLZ 4050 A2	5901058	piece	1 piece
End clamp for PV module mounting, free-standing system	KLE 20 A2	5901070	piece	1 piece
End clamp for PV module mounting, free-standing system	KLE 25 A2	5901072	piece	1 piece
End clamp for PV module mounting, free-standing system	KLE 30 A2	5901074	piece	1 piece
End clamp for PV module mounting, free-standing system	KLE 35 A2	5901076	piece	1 piece
End clamp for PV module mounting, free-standing system	KLE 40 A2	5901078	piece	1 piece
End clamp for PV module mounting, free-standing system	KLE 45 A2	5901080	piece	1 piece
End clamp for PV module mounting, free-standing system	KLE 50 A2	5901082	piece	1 piece
Intermediate clamp with spring for PV module mounting	KLZ F 25 A2	5901062	piece	1 piece
Intermediate clamp with spring for PV module mounting	KLZ F 30 A2	5901063	piece	1 piece
Intermediate clamp with spring for PV module mounting	KLZ F 35 A2	5901064	piece	1 piece
Intermediate clamp with spring for PV module mounting	KLZ F 40 A2	5901065	piece	1 piece
End clamp with spring for PV module mounting	KLE F 25 A2	5901092	piece	1 piece
End clamp with spring for PV module mounting	KLE F 30 A2	5901093	piece	1 piece
End clamp with spring for PV module mounting	KLE F 35 A2	5901094	piece	1 piece
End clamp with spring for PV module mounting	KLE F 40 A2	5901095	piece	1 piece
