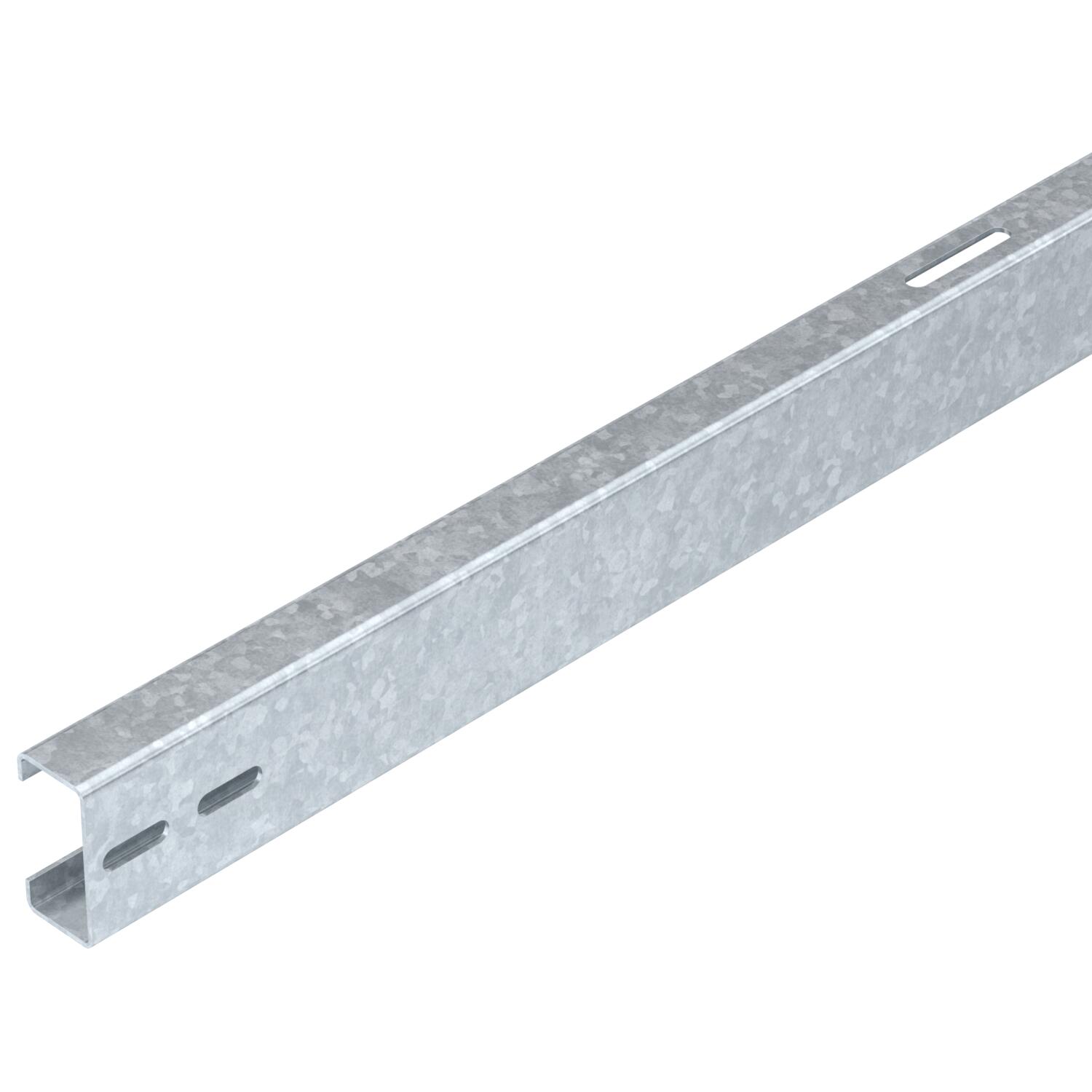

Support profile for PV module mounting, free-standing system

Item no. 5900510 | EAN 4012197396947

Item no. / Types	5900510 / TP 1050 FT

Product description

Product description

Support profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.

Technical data

Technical data

Cable duct optional	no
Cable duct, integrated	no
CO2 Footprint (GWP) Cradle-to-Gate	40,7752 kg CO2e / 1 Piece
Colour	zinc

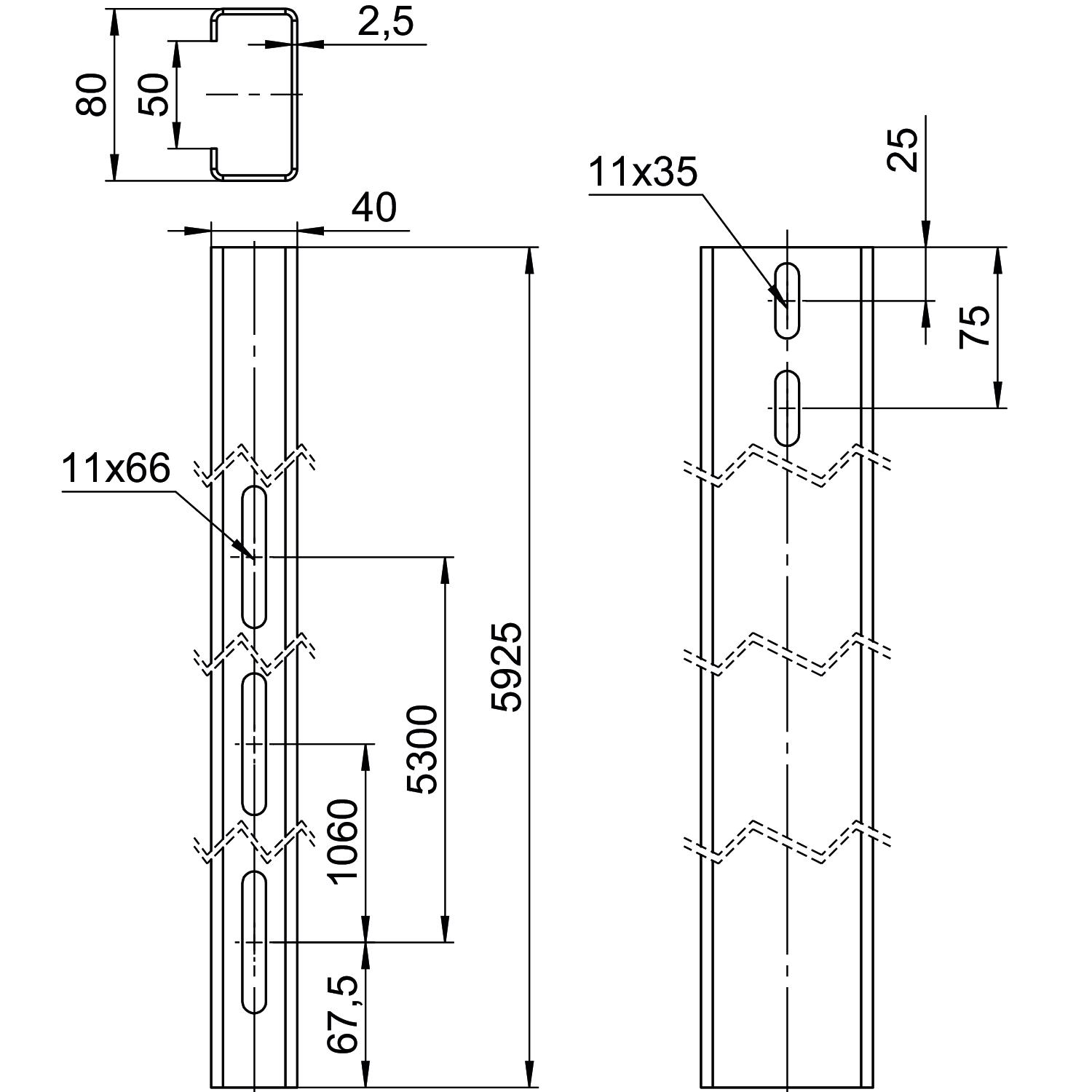

Dimension	40x80x5925
Height	80 mm
Length	5925 mm

Material	Steel
Module width max.	1050 mm
Module width min.	1040 mm
Section modulus Sx	10600 mm³
Section modulus Sy	5200 mm³
Surface	Hot-dip galvanised
Width	40 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
TP 1000 FT	5650	5900500	piece	1 piece
TP 1010 FT	5705	5900502	piece	1 piece
TP 1020 FT	5760	5900504	piece	1 piece
TP 1030 FT	5815	5900506	piece	1 piece
TP 1040 FT	5780	5900508	piece	1 piece
TP 1050 FT	5925	5900510	piece	1 piece
TP 1060 FT	5980	5900512	piece	1 piece
TP 1100 FT	5090	5900520	piece	1 piece
TP 1140 FT	5270	5900522	piece	1 piece
TP 1310 FT	6035	5900530	piece	1 piece
