End clamp for PV module mounting, free-standing system 90 | 50

Delivery lead time upon request

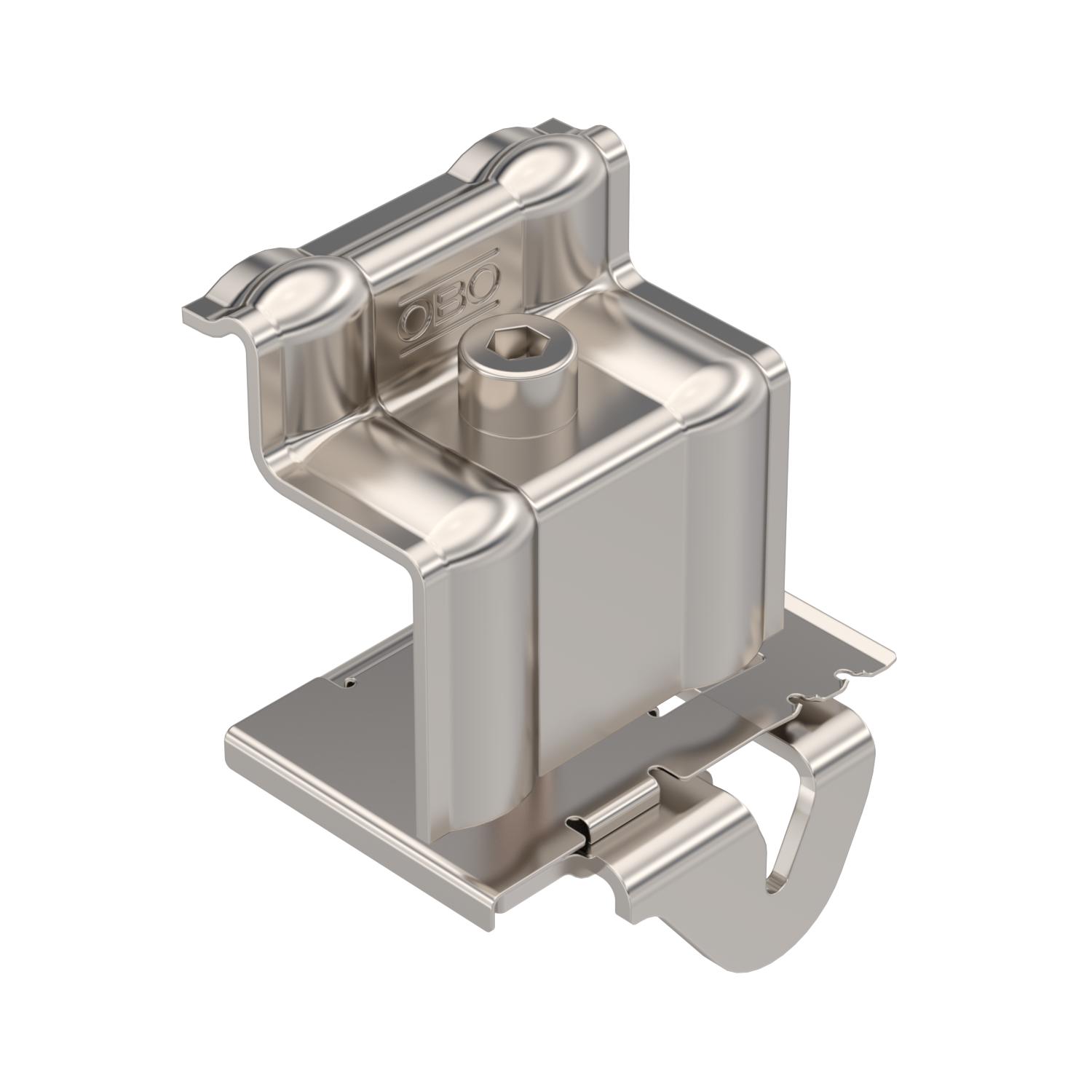

End clamp for PV module mounting, free-standing system

Item no. 5901082 | EAN 4012197390822

Item no. / Types

Height

For frame height min.

Product description

Product description

End clamp for fastening photovoltaic modules on support profiles of free-standing systems. Lockable pre-fastening of the module frames on the support profile. Suitable for slot width 10 mm. Lockable fastening of the PV module with Torx 30 wrench.

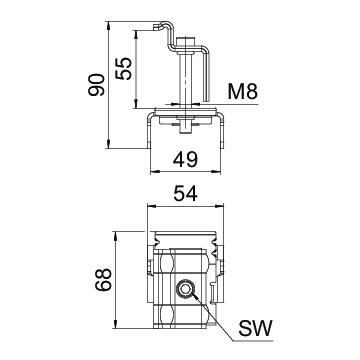

Technical data

Technical data

Adjustable	no
CO2 Footprint (GWP) Cradle-to-Gate	1,0117 kg CO2e / 1 Piece
Colour	stainless steel
Depth	68,5 mm
Dimension	-
Dimension	85x70x54

For frame height min.	50 mm
Height	90 mm
Material	Stainless steel 1.4301
Photovoltaic connection and fastening element version	End terminal
Width	54 mm
With module earthing	no

All types

All types

Types	Height	For frame height min.	Item no.	Quantity	SSU
KLE 20 A2	60 mm	20 mm	5901070	piece	1 piece
KLE 25 A2	65 mm	25 mm	5901072	piece	1 piece
KLE 30 A2	70 mm	30 mm	5901074	piece	1 piece
KLE 35 A2	75 mm	35 mm	5901076	piece	1 piece
KLE 40 A2	80 mm	40 mm	5901078	piece	1 piece
KLE 45 A2	85 mm	45 mm	5901080	piece	1 piece
KLE 50 A2	90 mm	50 mm	5901082	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Support profile for PV module mounting, free-standing system	TP 1000 FT	5900500	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1010 FT	5900502	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1020 FT	5900504	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1030 FT	5900506	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1040 FT	5900508	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1050 FT	5900510	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1060 FT	5900512	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1100 FT	5900520	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1140 FT	5900522	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1310 FT	5900530	piece	1 piece
