Fastening clip 605, medium duty, aluminium
Item no. 1017799 | EAN 4012195449539
- Product description
-
Product descriptionFastening clip, double-lobe, 16 mm
-
- Technical data
-
Technical data

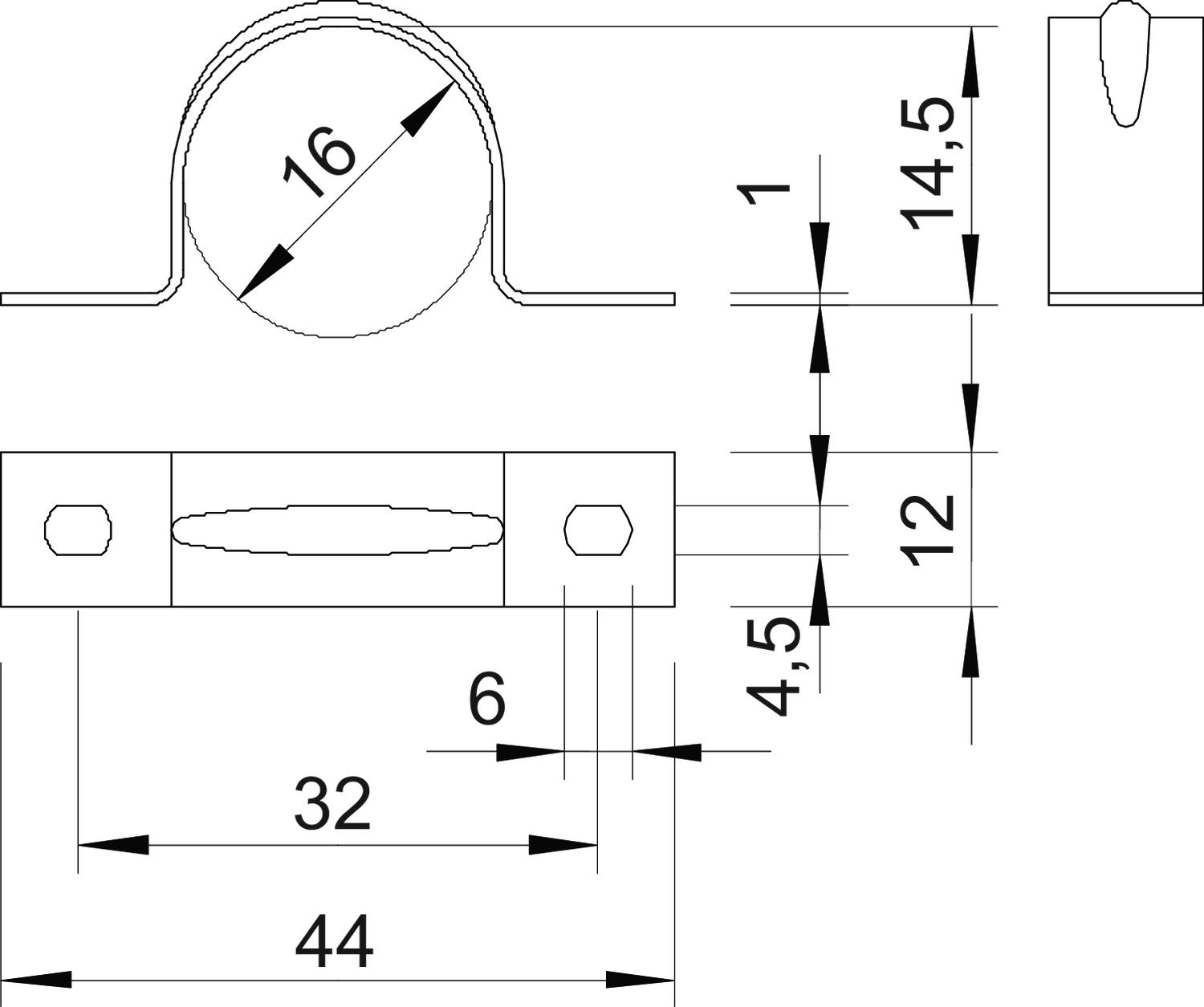

Clamping range D, max. 16 mm Clamping range D, min. 16 mm CO2 Footprint (GWP) Cradle-to-Gate 0,0371 kg CO2e / 1 Piece Dimension 16mm Dimension A 44 mm Dimension b 12 mm Dimension B 32 mm Dimension D 16 mm Dimension d 4,5 mm Dimension e 6 mm Dimension H 14,5 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 16 Halogen-free yes Height 14,5 mm Hole size 4,5 x 6 mm Length 44 mm Material Aluminium Material thickness 1 mm Nominal diameter 16 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant yes Version for Two-lobe Width 12 mm - All types
- Downloads
-
Data sheet 605 16 ALU / 1017799 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 605 16 ALU / 1017799 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 605 16 ALU / 1017799 , 0.09MB , pdfREACH Declaration of conformity 605 16 ALU / 1017799 , 0.12MB , pdfRoHS Declaration of conformity 605 16 ALU / 1017799 , 0.13MB , pdf
