Fastening clip 605, medium duty, aluminium
Item no. 1017837 | EAN 4012195449652
- Product description
-
Product descriptionFastening clip, double-lobe, 20 mm
-
- Technical data
-
Technical data

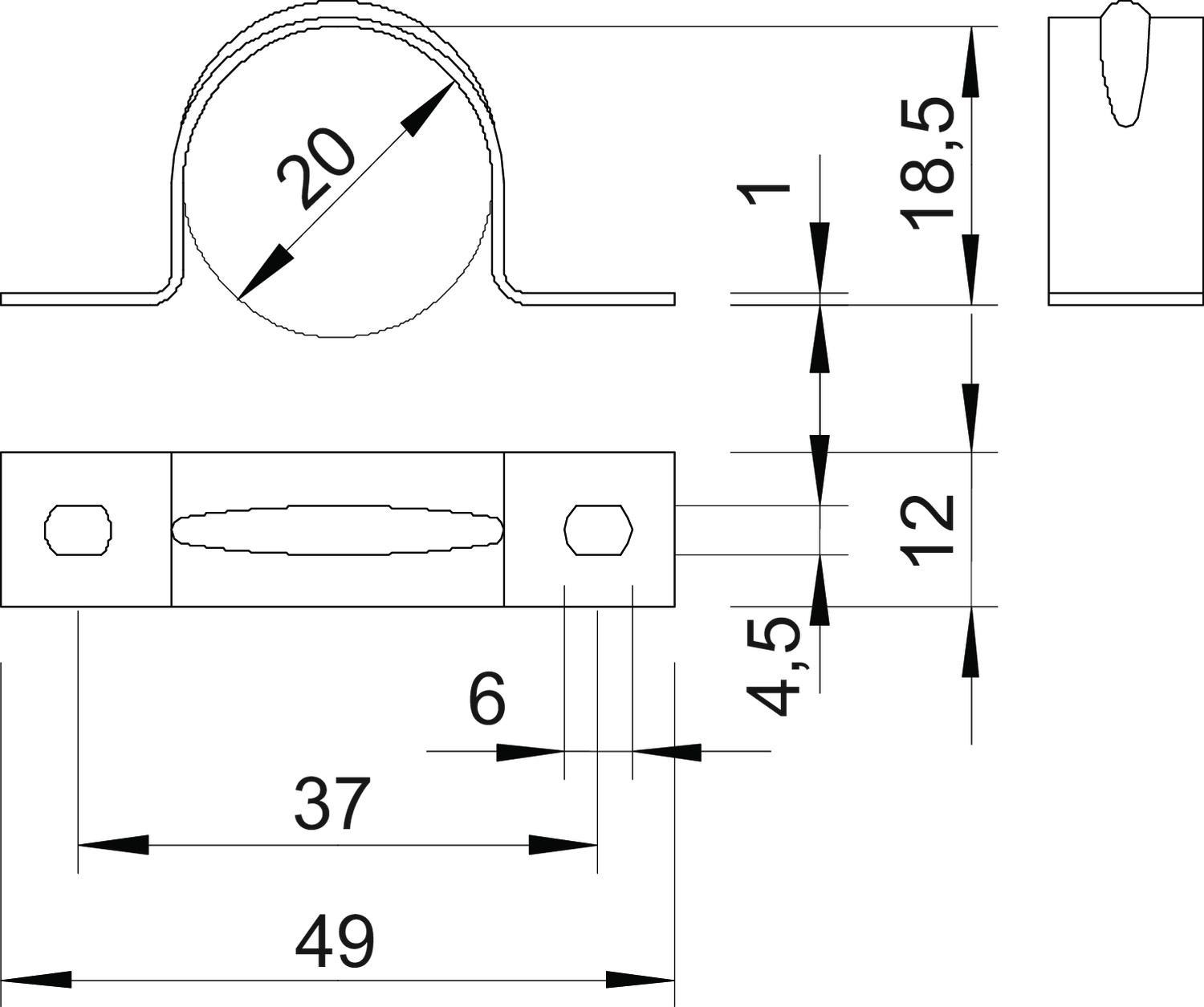

Clamping range D, max. 20 mm Clamping range D, min. 20 mm CO2 Footprint (GWP) Cradle-to-Gate 0,043 kg CO2e / 1 Piece Dimension 20mm Dimension A 49 mm Dimension b 12 mm Dimension B 37 mm Dimension d 4,5 mm Dimension D 20 mm Dimension e 6 mm Dimension H 18,5 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 20 Halogen-free yes Height 18,5 mm Hole size 4,5 x 6 mm Length 49 mm Material Aluminium Material thickness 1 mm Nominal diameter 20 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant yes Version for Two-lobe Width 12 mm - All types
