Fastening clip 605, medium duty, aluminium
Item no. 1017997 | EAN 4012195590057
- Product description
-
Product descriptionFastening clip, double-lobe, 63 mm
-
- Technical data
-
Technical data

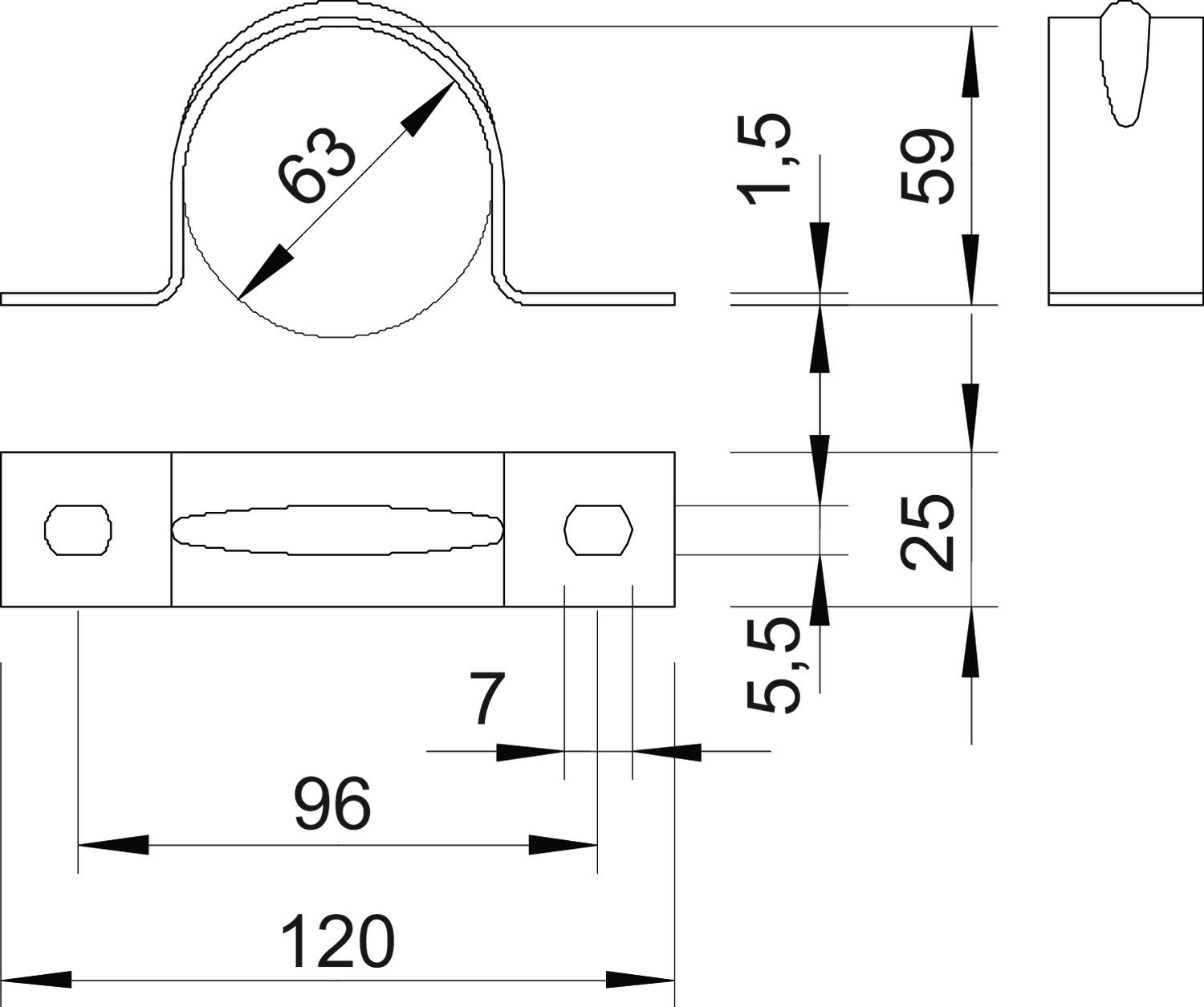

Clamping range D, max. 63 mm Clamping range D, min. 63 mm CO2 Footprint (GWP) Cradle-to-Gate 0,1816 kg CO2e / 1 Piece Dimension 63mm Dimension A 120 mm Dimension B 96 mm Dimension b 25 mm Dimension d 5,5 mm Dimension D 63 mm Dimension e 7 mm Dimension H 59 mm Dimension t 1,5 mm Distance to the wall no Fastening type Screw hole For diameter 63 Halogen-free yes Height 59 mm Hole size 5,5 x 7 mm Length 120 mm Material Aluminium Material thickness 1,5 mm Nominal diameter 63 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant yes Version for Two-lobe Width 25 mm - All types
- Downloads
-
Data sheet 605 63 ALU / 1017997 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 605 63 ALU / 1017997 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 605 63 ALU / 1017997 , 0.09MB , pdfREACH Declaration of conformity 605 63 ALU / 1017997 , 0.12MB , pdfRoHS Declaration of conformity 605 63 ALU / 1017997 , 0.13MB , pdf
