Fastening clip, plant standard 7855, double-lobe
Item no. 1044230 | EAN 4012195030256
- Product description
-
Product descriptionDimensions to Siemens standard SN 78550, shape B, with strongly rounded edges, thus particularly suitable for sensitive cables.
* Sizes 3 to 10 not suitable for nail device.
-
- Technical data
-
Technical data

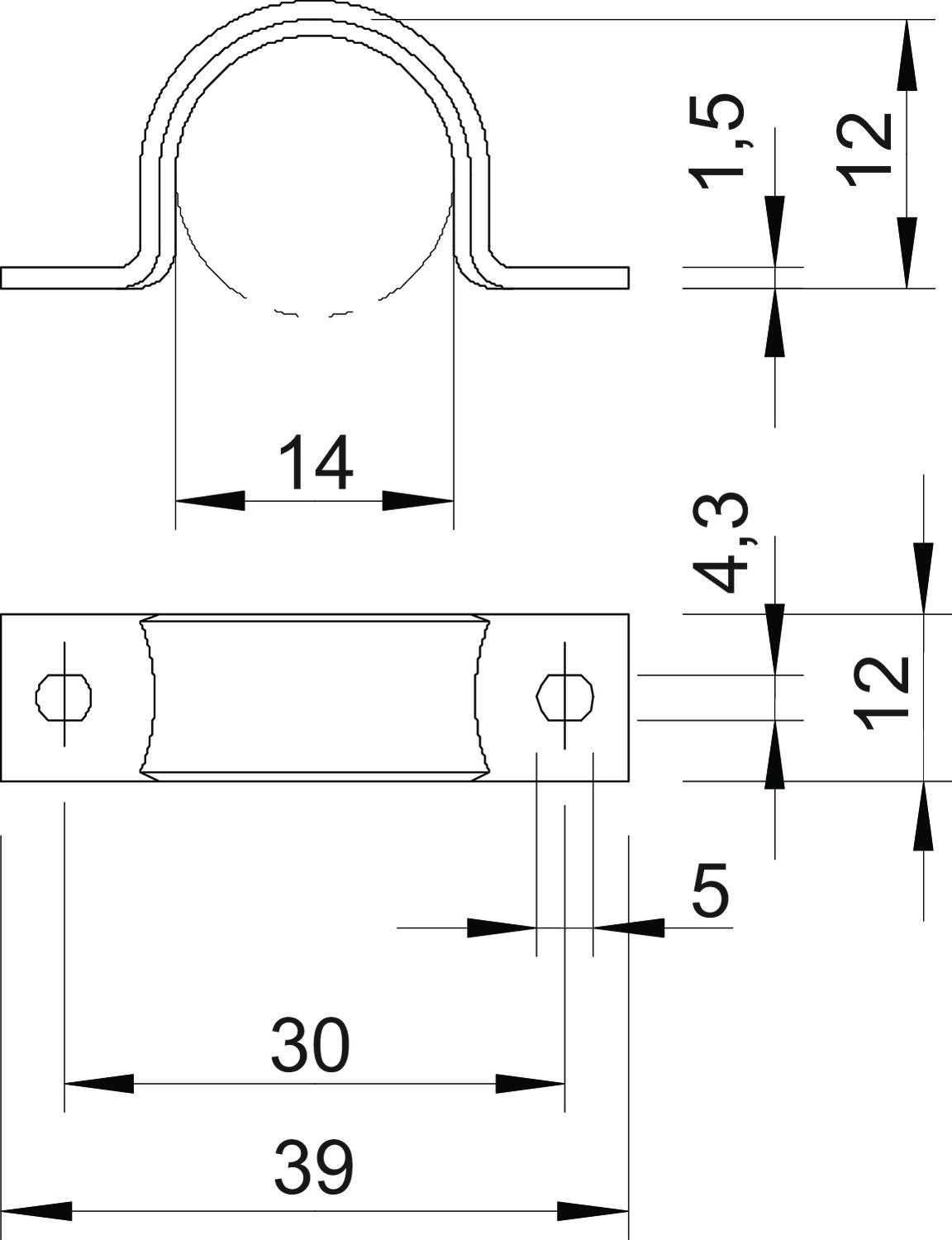

CO2 Footprint (GWP) Cradle-to-Gate 0,0159 kg CO2e / 1 Piece Dimension 14mm Dimension A 39 mm Dimension B 30 mm Dimension b 12 mm Dimension D 14 mm Dimension d 4,3 mm Dimension e 5 mm Dimension H 12 mm Dimension L 39 mm Dimension t 1,5 mm Distance to the wall no Fastening type Screw hole For diameter 14 Halogen-free yes Height 12 mm Hole size 4,3 x 5 mm Length 39 mm Material Steel Material thickness 1,5 mm Nominal diameter 14 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized, transparently passivated UV-resistant yes Version for Two-lobe Width 12 mm - All types
- Downloads
-
Data sheet WN 7855 B 14 / 1044230 , 0.24MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity WN 7855 B 14 / 1044230 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity WN 7855 B 14 / 1044230 , 0.09MB , pdfREACH Declaration of conformity WN 7855 B 14 / 1044230 , 0.12MB , pdfRoHS Declaration of conformity WN 7855 B 14 / 1044230 , 0.13MB , pdf
