Fastening clip, plant standard 7855, double-lobe
Item no. 1044176 | EAN 4012195030072
- Product description
-
Product descriptionDimensions to Siemens standard SN 78550, shape B, with strongly rounded edges, thus particularly suitable for sensitive cables.
* Sizes 3 to 10 not suitable for nail device.
-
- Technical data
-
Technical data

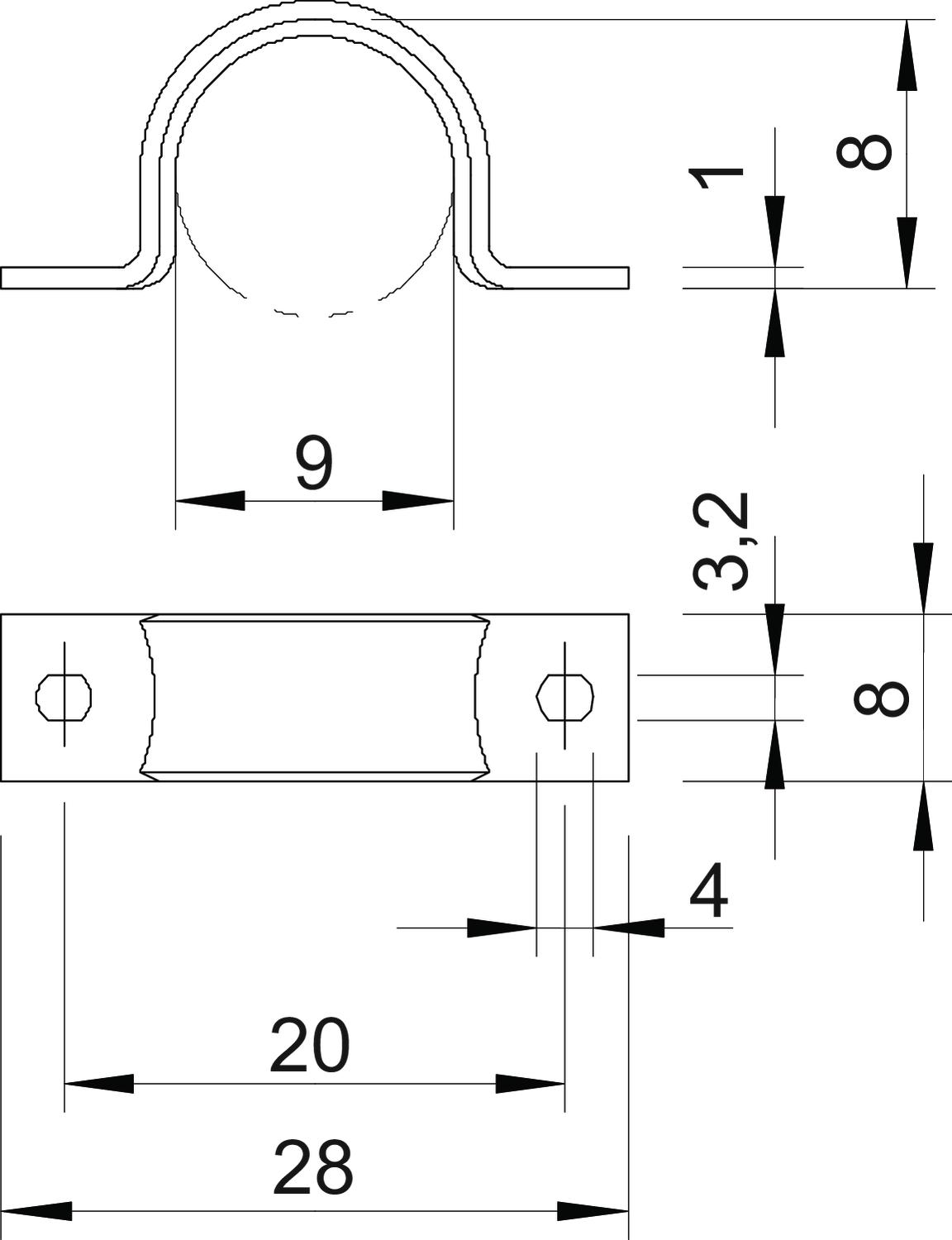

CO2 Footprint (GWP) Cradle-to-Gate 0,0052 kg CO2e / 1 Piece Dimension 9mm Dimension A 28 mm Dimension b 8 mm Dimension B 20 mm Dimension D 9 mm Dimension d 3,2 mm Dimension e 4 mm Dimension H 8 mm Dimension L 28 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 9 Halogen-free yes Height 8 mm Hole size 3,2 x 4 mm Length 28 mm Material Steel Material thickness 1,5 mm Nominal diameter 9 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized, transparently passivated UV-resistant yes Version for Two-lobe Width 8 mm - All types
