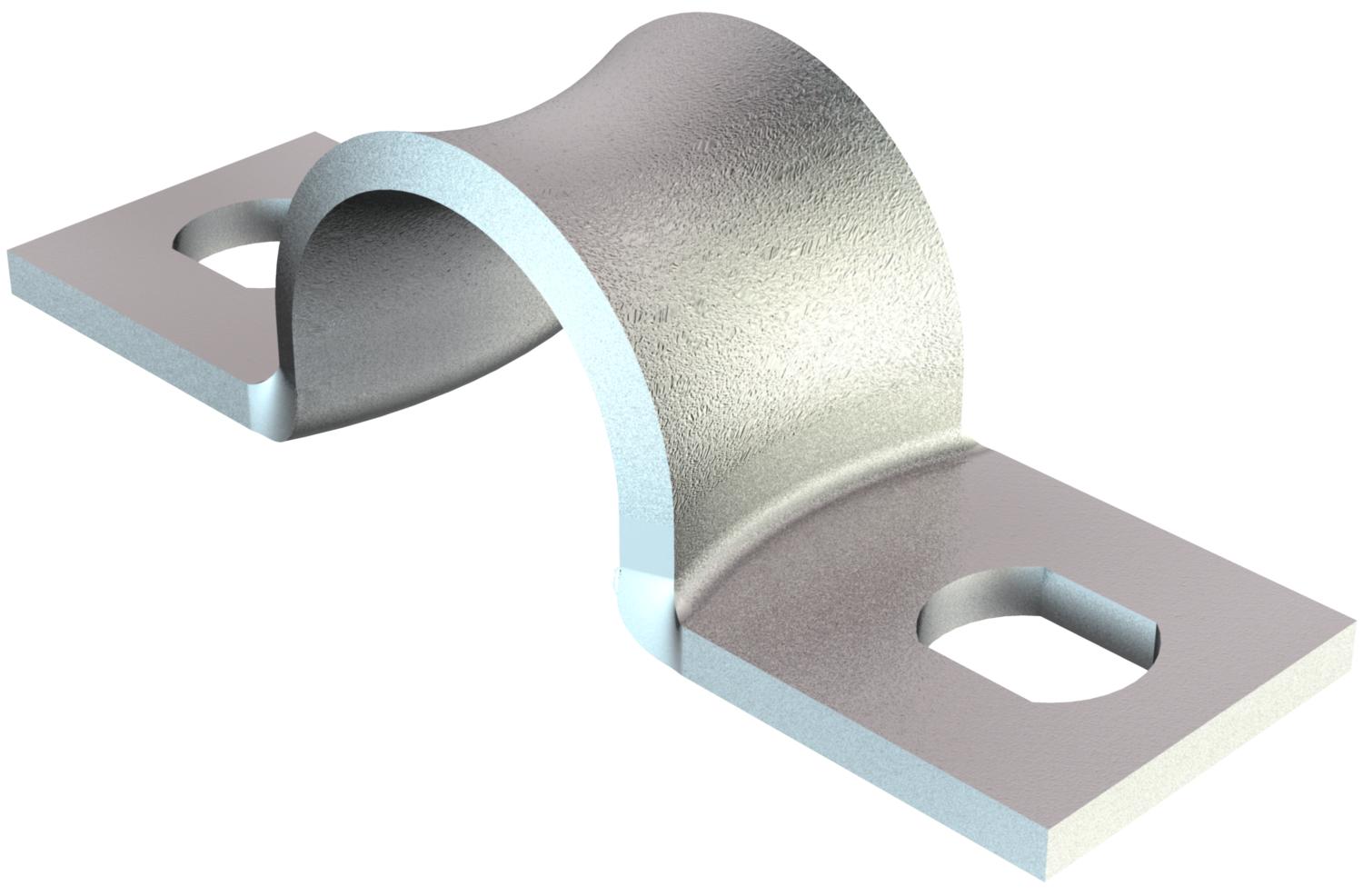

Fastening clip, plant standard 7855, double-lobe
Item no. 1044044 | EAN 4012195029595
- Product description
-
Product descriptionDimensions to Siemens standard SN 78550, shape B, with strongly rounded edges, thus particularly suitable for sensitive cables.
* Sizes 3 to 10 not suitable for nail device.
-
- Technical data
-
Technical data

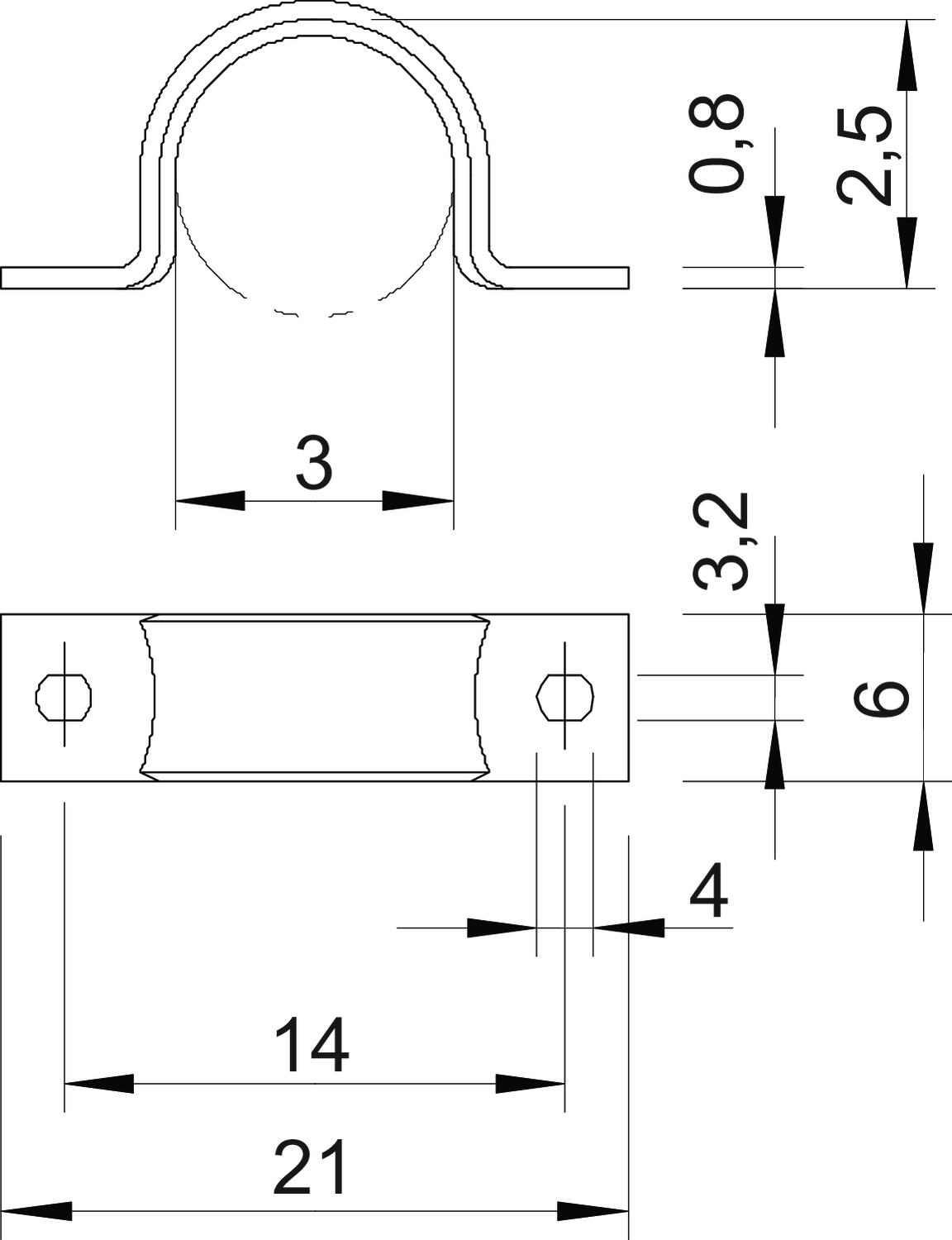

CO2 Footprint (GWP) Cradle-to-Gate 0,0021 kg CO2e / 1 Piece Dimension 3mm Dimension A 21 mm Dimension B 14 mm Dimension b 6 mm Dimension D 3 mm Dimension d 3,2 mm Dimension e 4 mm Dimension H 2,5 mm Dimension L 21 mm Dimension t 0,8 mm Distance to the wall no Fastening type Screw hole For diameter 3 Halogen-free yes Height 2,5 mm Hole size 3,2 x 4 mm Length 21 mm Material Steel Material thickness 0,8 mm Nominal diameter 3 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized, transparently passivated UV-resistant yes Version for Two-lobe Width 6 mm - All types
- Downloads
-
Data sheet WN 7855 B 3 / 1044044 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity WN 7855 B 3 / 1044044 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity WN 7855 B 3 / 1044044 , 0.09MB , pdfREACH Declaration of conformity WN 7855 B 3 / 1044044 , 0.12MB , pdfRoHS Declaration of conformity WN 7855 B 3 / 1044044 , 0.13MB , pdf
