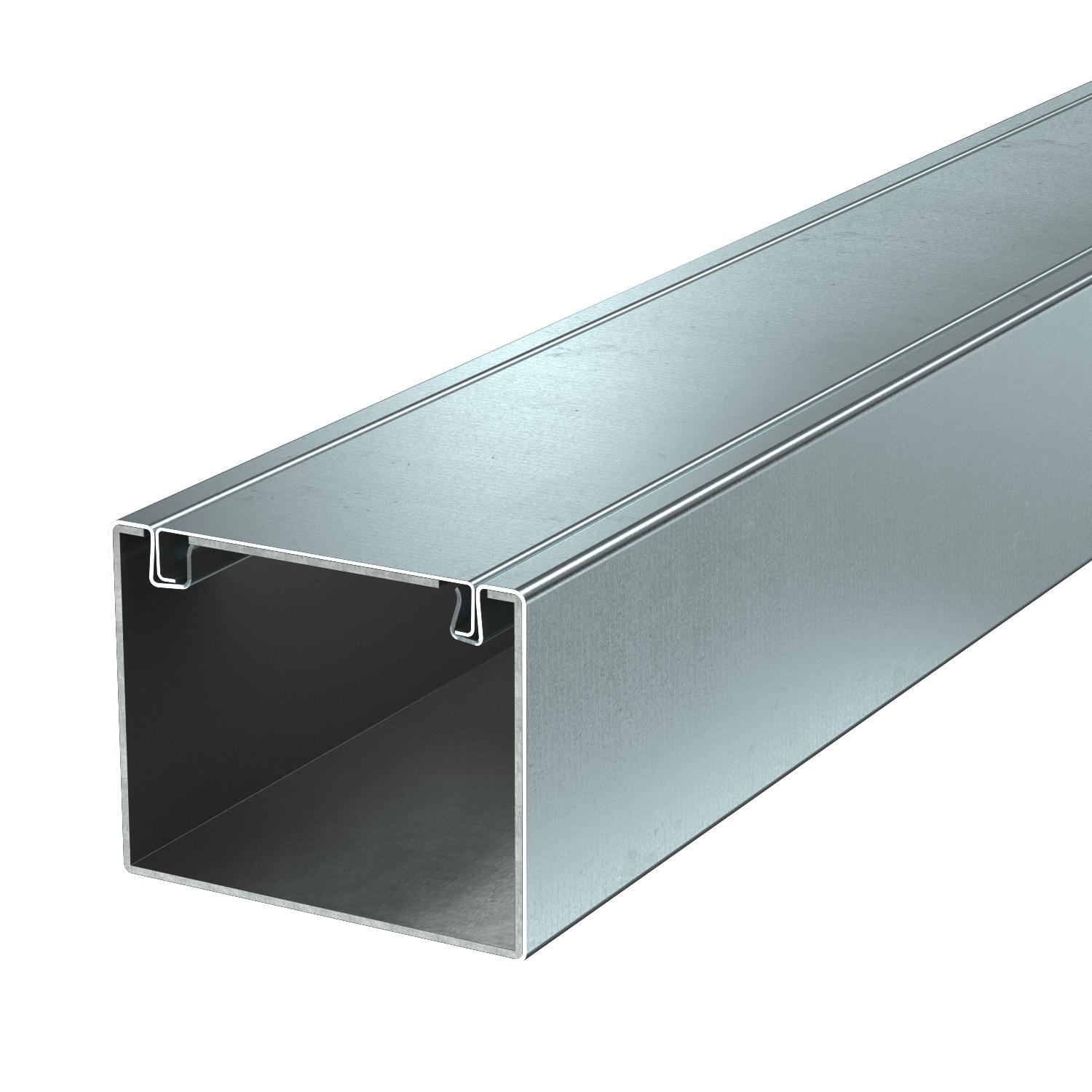

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, FS 2000 | 100 | 80 | zinc
morepic-1 morepic-2

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, FS

Item no. 7218008 | EAN 4012197351229

7218008 / PLM D 0810 FS
2000 mm
100 mm
80 mm
zinc
Product description
Product description
Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.


  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Classification EI − installation duct 90
CO2 Footprint (GWP) Cradle-to-Gate 1,6136 kg CO2e / 1 Meter
Colour zinc
Cover fastening Miscellaneous
Dimension 80x100x2000

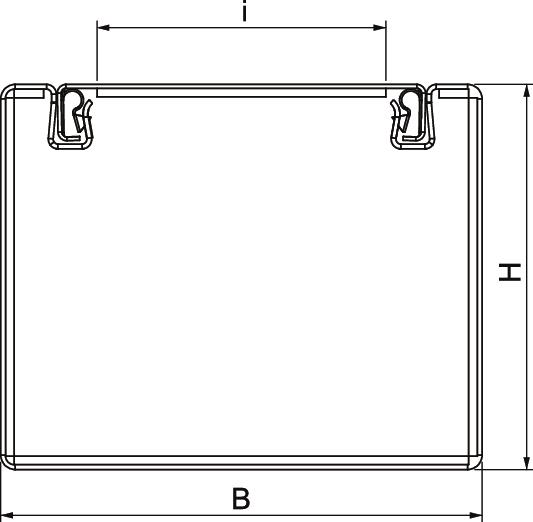

Dimension B 100 mm
Dimension H 80 mm
Dimension i 62 mm
Height 80 mm
Internal height 74 mm
Internal width 94 mm
Jacketing Steel
Length 2000 mm
Material Steel
Number of flammable sides 4
Partitions possible yes
Protection rating IK code IK10
Surface Strip galvanized
Usable cross-section 5180 mm²
Width 100 mm
With perforation yes
All types

All types

Types Length Dimension B Dimension H Colour Item no. Quantity SSU
PLM D 0810 FS 2000 mm 100 mm 80 mm zinc 7218008
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU

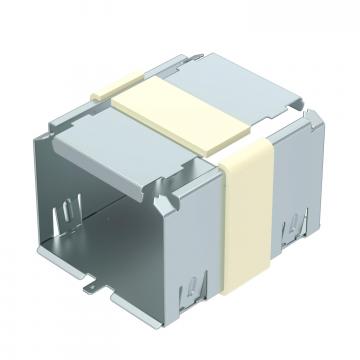

Joint conncetor set, cable height 80 mm Joint conncetor set, cable height 80 mm PLM SIC 0810 FS 7218031
1 piece

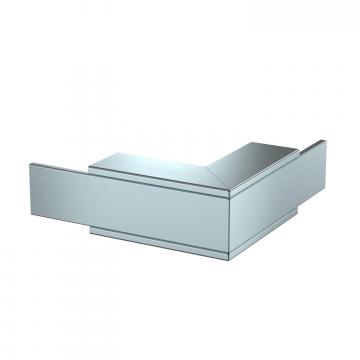

External corner, duct height 80 mm, FS External corner, duct height 80 mm, FS PLM EC 0810 FS 7218042
1 piece

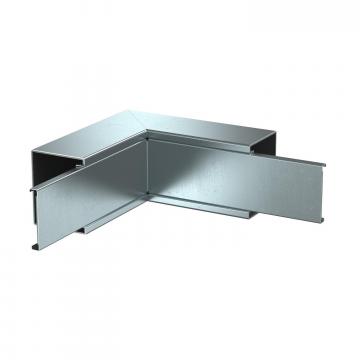

Internal corner, duct height 80 mm, FS Internal corner, duct height 80 mm, FS PLM IC 0810 FS 7218054
1 piece

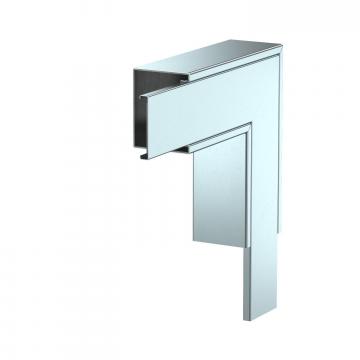

Flat angle, duct height 80 mm, FS Flat angle, duct height 80 mm, FS PLM FA 0810 FS 7218066
1 piece

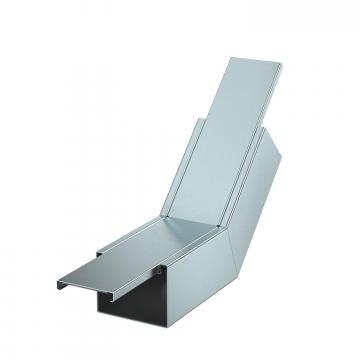

Vertical bend, rising, duct height 80 mm, FS Vertical bend, rising, duct height 80 mm, FS PLM BR 0810 FS 7218114
1 piece

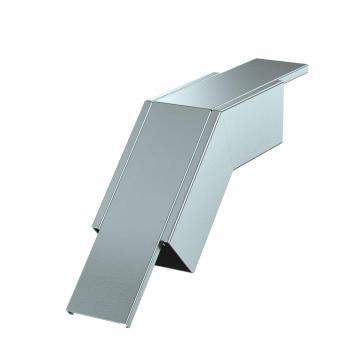

Vertical bend, falling, duct height 80 mm, FS Vertical bend, falling, duct height 80 mm, FS PLM BF 0810 FS 7218106
1 piece

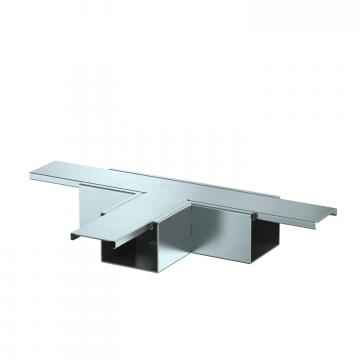

T branch piece, duct height 80 mm, FS T branch piece, duct height 80 mm, FS PLM TB 0810 FS 7218078
1 piece

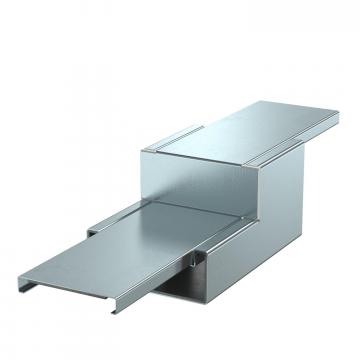

Reducer, straight, from 80 mm to 40 mm duct height, FS Reducer, straight, from 80 mm to 40 mm duct height, FS PLM RP 0810 FS 7218098
1 piece

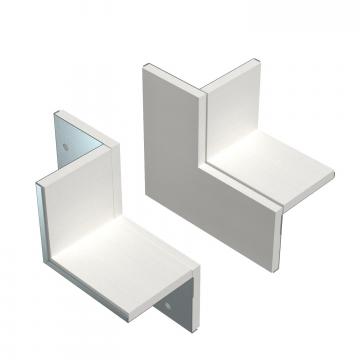

Wall connection set, double-sided, for corner mounting, duct height 80 mm, FS Wall connection set, double-sided, for corner mounting, duct height 80 mm, FS PLM CC 0810 FS 7218138
1 piece

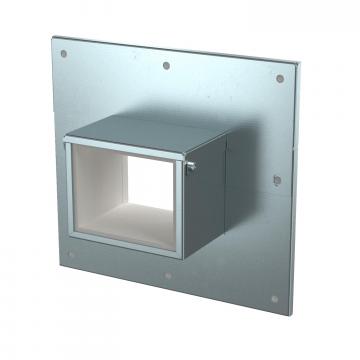

Wall connection collar, 3- and 4-sided, duct height 80 mm, FS Wall connection collar, 3- and 4-sided, duct height 80 mm, FS PLM WC 0810 FS 7218126
1 piece

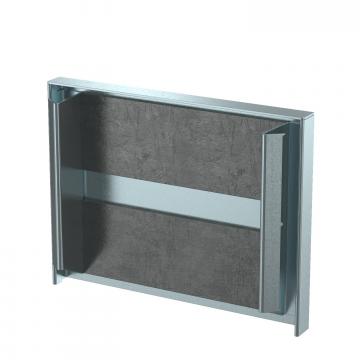

End piece, duct height 80 mm, FS End piece, duct height 80 mm, FS PLM EP 0810 FS 7218090
1 piece

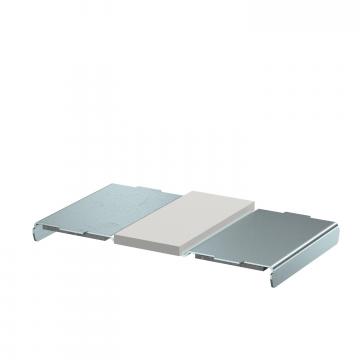

Cover support, duct width 100 mm Cover support, duct width 100 mm PLM LS 100 7218034
1 piece

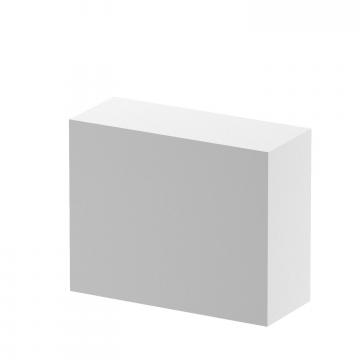

Foam seal, duct height 80 mm Foam seal, duct height 80 mm PLM CO 0810 7218160
1 piece

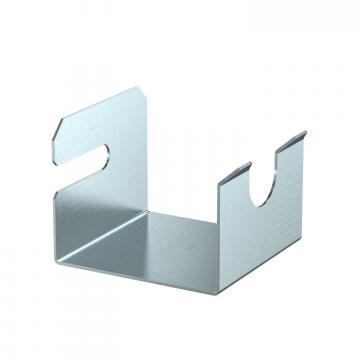

Pressure clip for wall mounting, duct height 80 mm Pressure clip for wall mounting, duct height 80 mm PLM WB 0810 FS 7218154
10 piece

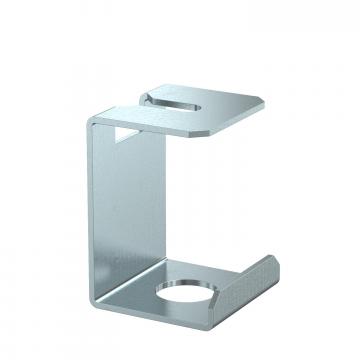

Pressure clip for ceiling mounting, duct height 80 mm Pressure clip for ceiling mounting, duct height 80 mm PLM CB 0810 FS 7218148
10 piece

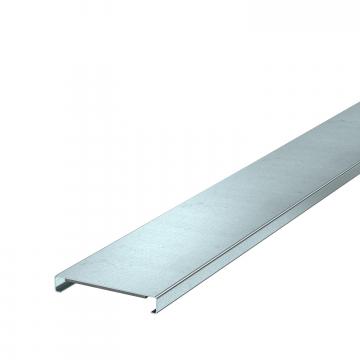

Installation duct cover, duct width 100 mm, FS Installation duct cover, duct width 100 mm, FS PLM LI 100 FS 7218020
2 m

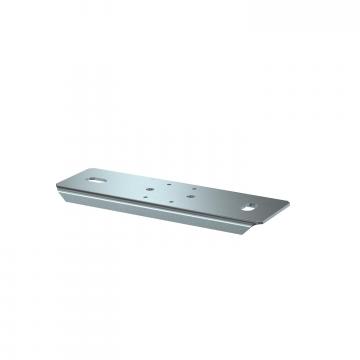

Support, duct width 100 mm, FS Support, duct width 100 mm, FS PLM SU 100 FS 7218164
1 piece

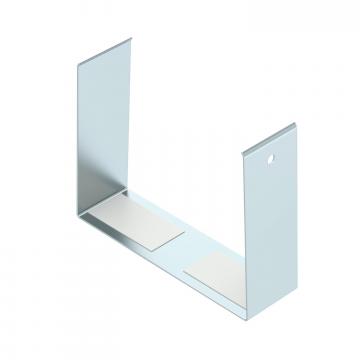

Joint cover, duct height 80 mm Joint cover, duct height 80 mm PLM SV 0810 FS 7218180
1 piece
Separating retainer 60 FS Separating retainer 60 FS TSG 60 FS 6062068
3 m
Identification plate Identification plate IP PYL DE 7214740
10 piece

Mounting accessories

Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge Ablation coating PYROCOAT® in a cartridge ASX-K 7202310
1 piece

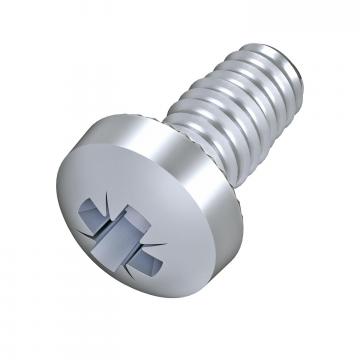

Connector screw Connector screw PLM SF 4x8 3498092
100 piece
Locking bracket RKV3V Locking bracket RKV3V RKV3V 6288700
20 piece
