Intermediate clamp for PV module mounting, free-standing system 74.5 | 30

Delivery lead time upon request

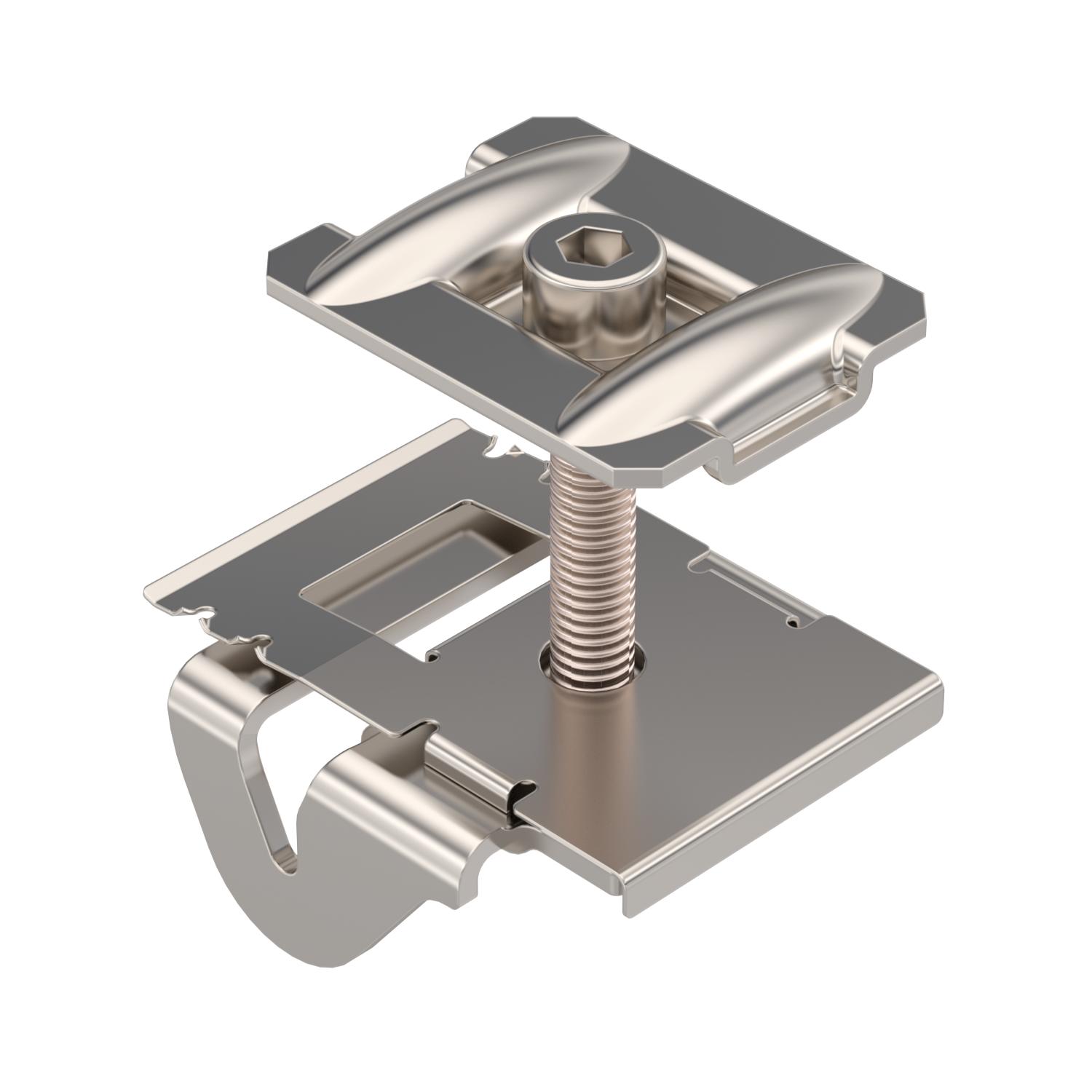

Intermediate clamp for PV module mounting, free-standing system

Item no. 5901054 | EAN 4012197394417

Item no. / Types

Height

For frame height min.

Product description

Product description

Connection clamp for fastening photovoltaic modules on support profiles of free-standing systems. Lockable pre-fastening of the module frames on the support profile. Suitable for slot width 10 mm. Lockable fastening of the PV module with Torx 30 wrench.

Technical data

Technical data

Adjustable	yes
CO2 Footprint (GWP) Cradle-to-Gate	0,7298 kg CO2e / 1 Piece
Colour	stainless steel

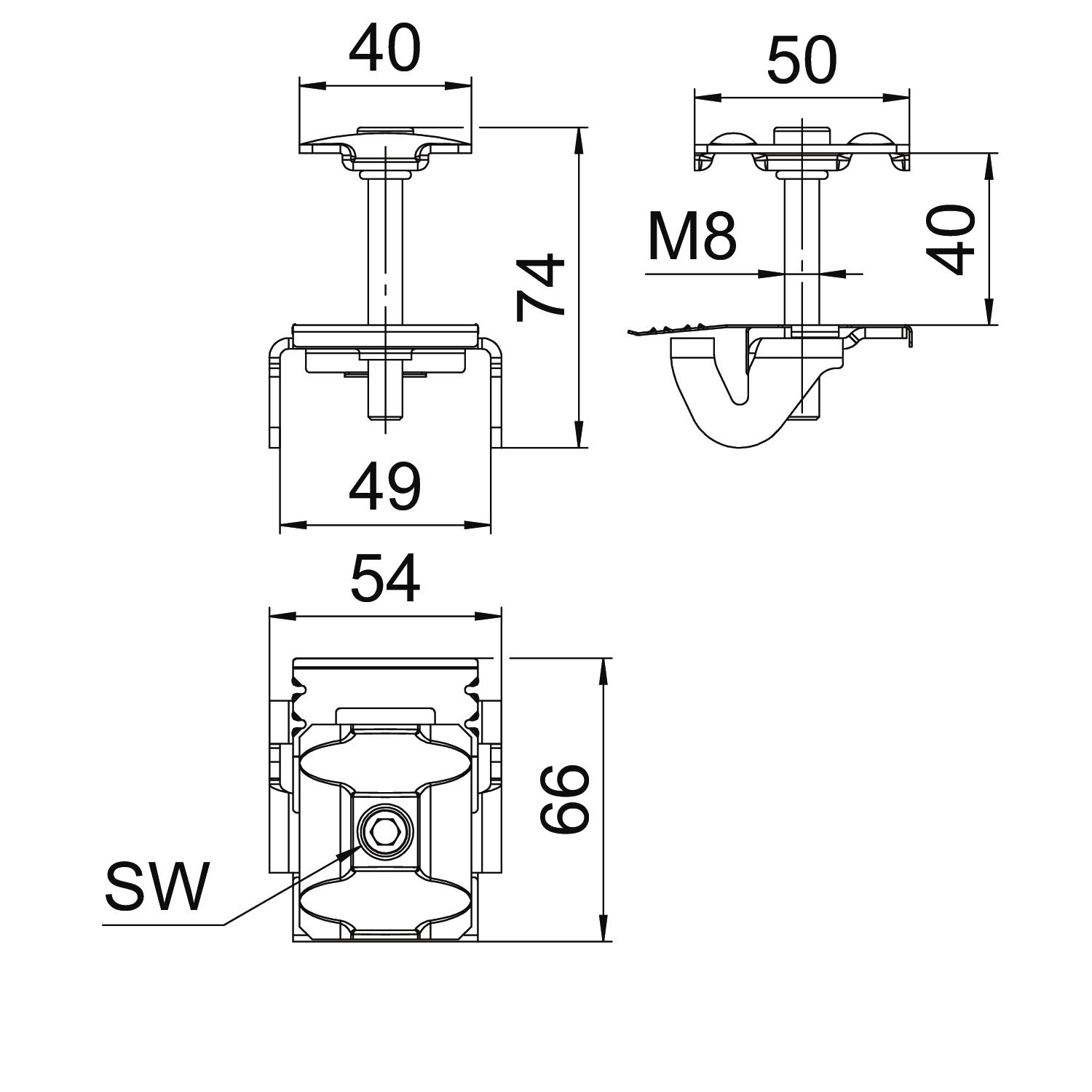

Depth	66 mm
Dimension	73x54x66
For frame height max.	40 mm

For frame height min.	30 mm
Height	74,5 mm
Material	Stainless steel 1.4301
Photovoltaic connection and fastening element version	Centre clamp
Width	54 mm
With module earthing	no

All types

All types

Types	Height	For frame height min.	Item no.	Quantity	SSU
KLZ 2030 A2	65.5 mm	20 mm	5901050	piece	1 piece
KLZ 3040 A2	74.5 mm	30 mm	5901054	piece	1 piece
KLZ 4050 A2	84.5 mm	40 mm	5901058	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Support profile for PV module mounting, free-standing system	TP 1000 FT	5900500	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1010 FT	5900502	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1020 FT	5900504	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1030 FT	5900506	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1040 FT	5900508	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1050 FT	5900510	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1060 FT	5900512	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1100 FT	5900520	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1140 FT	5900522	piece	1 piece
Support profile for PV module mounting, free-standing system	TP 1310 FT	5900530	piece	1 piece
