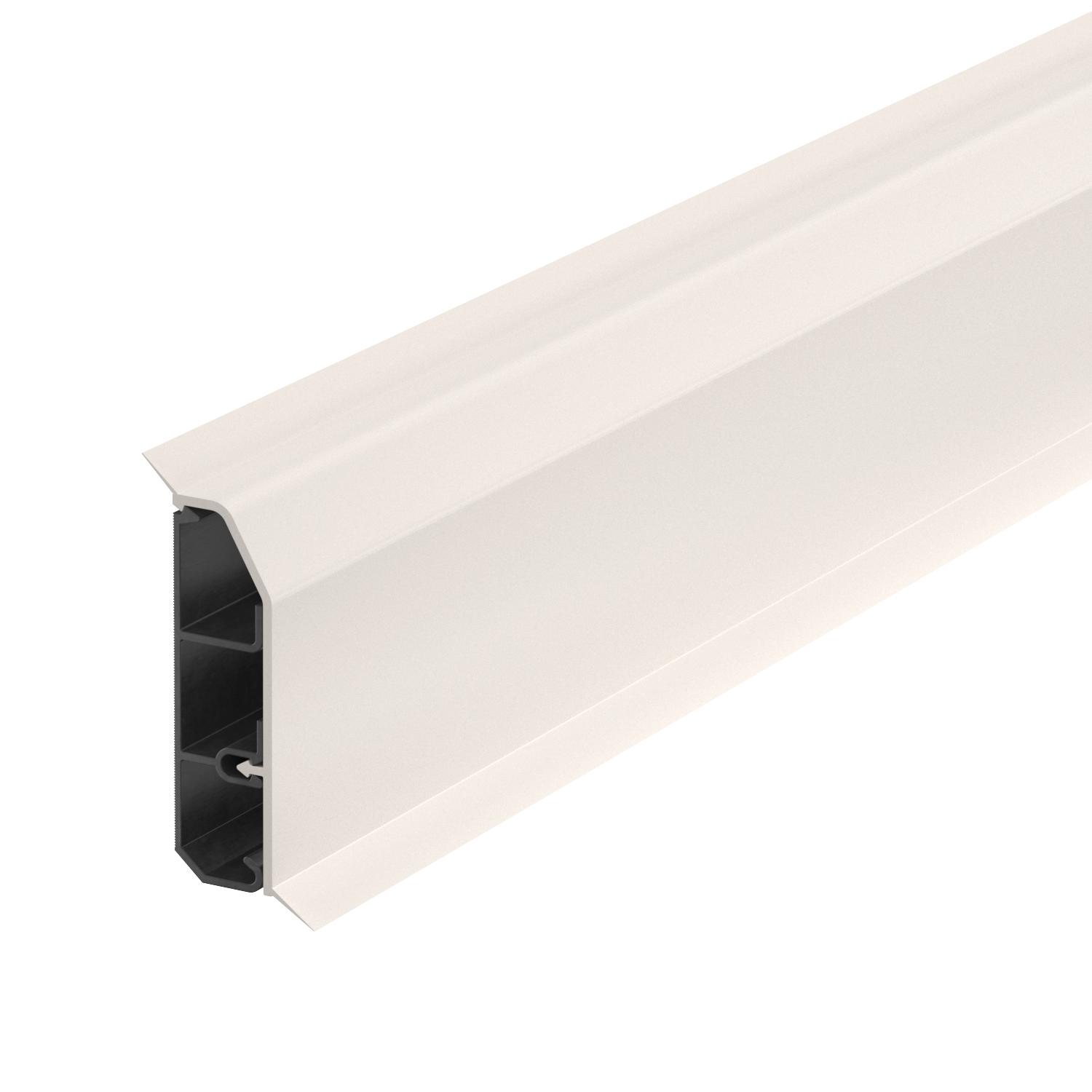

Skirting trunking SLL 2070 2000 | Cream; RAL 9001

Skirting trunking SLL 2070

Item no. 6132214 | EAN 4012196720019

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

SL-L skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.

With snap-on cover and base with base perforation for direct wall mounting. Change the direction with the fittings and close the trunking ends with end pieces. Service outlet for installing power and data technology. With elastic connection lips for concealing uneven wall surfaces.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,1203 kg CO2e / 1 Meter
Colour	Cream; RAL 9001
Cover sealing lip	Wall/floor
Decoration	Without
Halogen-free	no

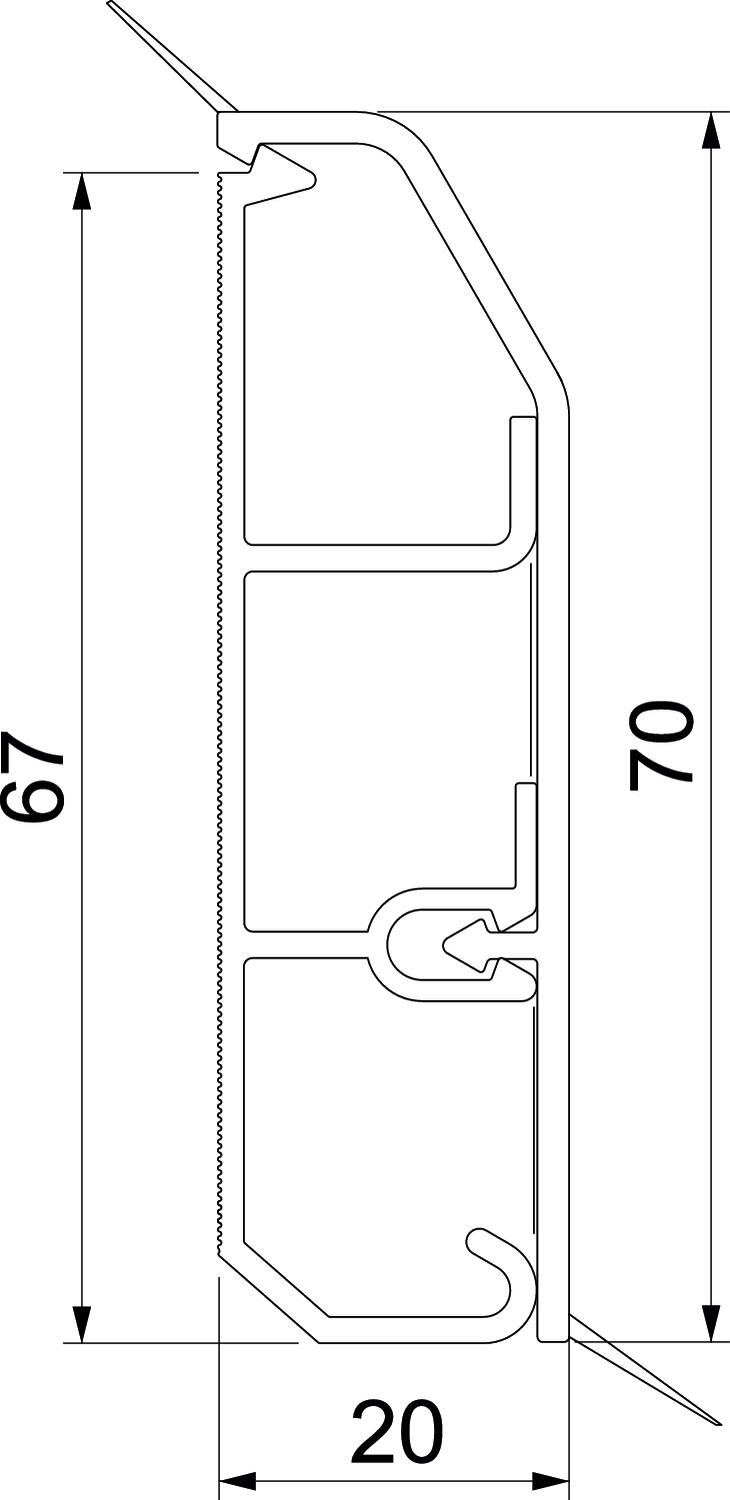

Height	20 mm
Length	2000 mm
Material	Polyvinylchloride
Mounting perforation in base	yes

Number of fixed partitions	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Protective film	no
Usable cross-section	820 mm²
Width	70 mm
With carpet strip	no

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
SLL 2070 cws	2000 mm	Cream; RAL 9001	6132214	m	2 m
SLL 2070 rws	2000 mm	Pure white; RAL 9010	6132215	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

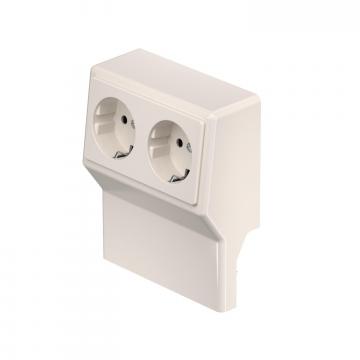

Device support SL2GT5070	SL2GT5070 cws	6132246	piece	1 piece

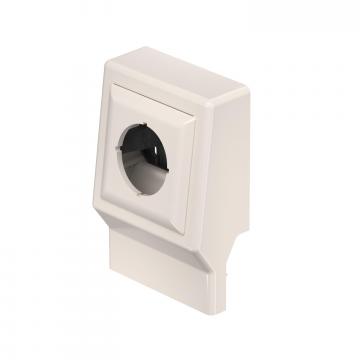

Device support SL ETler5070	SL ETler5070 cws	6132239	piece	1 piece
Device support SL GTO 50-70	SL GTO 50-70 rws	6132229	piece	1 piece

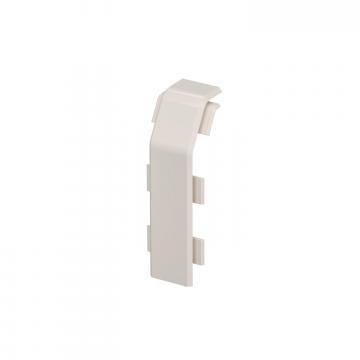

Coupling SL KUP2070	SL KUP2070 cws	6132231	piece	10 piece

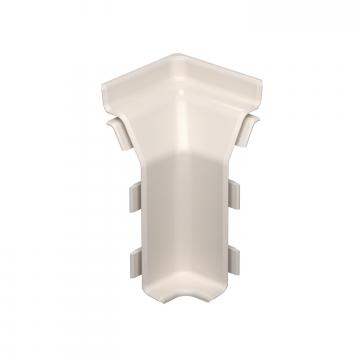

Internal corner SLL IE2070	SLL IE2070 cws	6132244	piece	10 piece

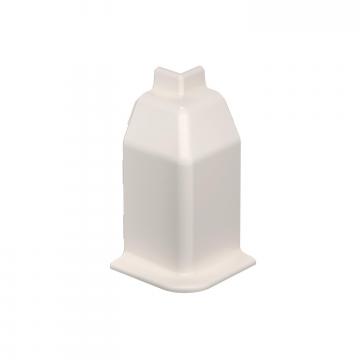

External corner SLL AE2070	SLL AE2070 cws	6132263	piece	10 piece

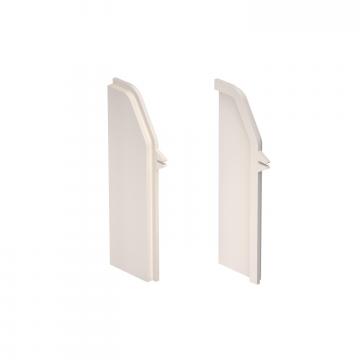

Side closure, SL GTSA5070 device support	SL GTSA5070 cws	6132197	piece	10 piece

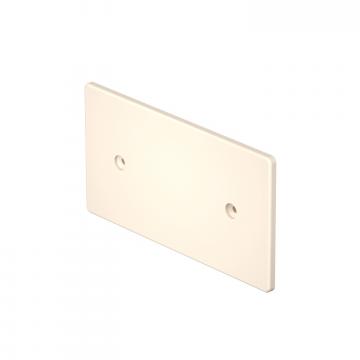

Blind cover SL BL blind	SL BL blind cws	6132252	piece	1 piece
Antenna socket panel SL BL ANT	SL BL ANT cws	6132195	piece	1 piece
