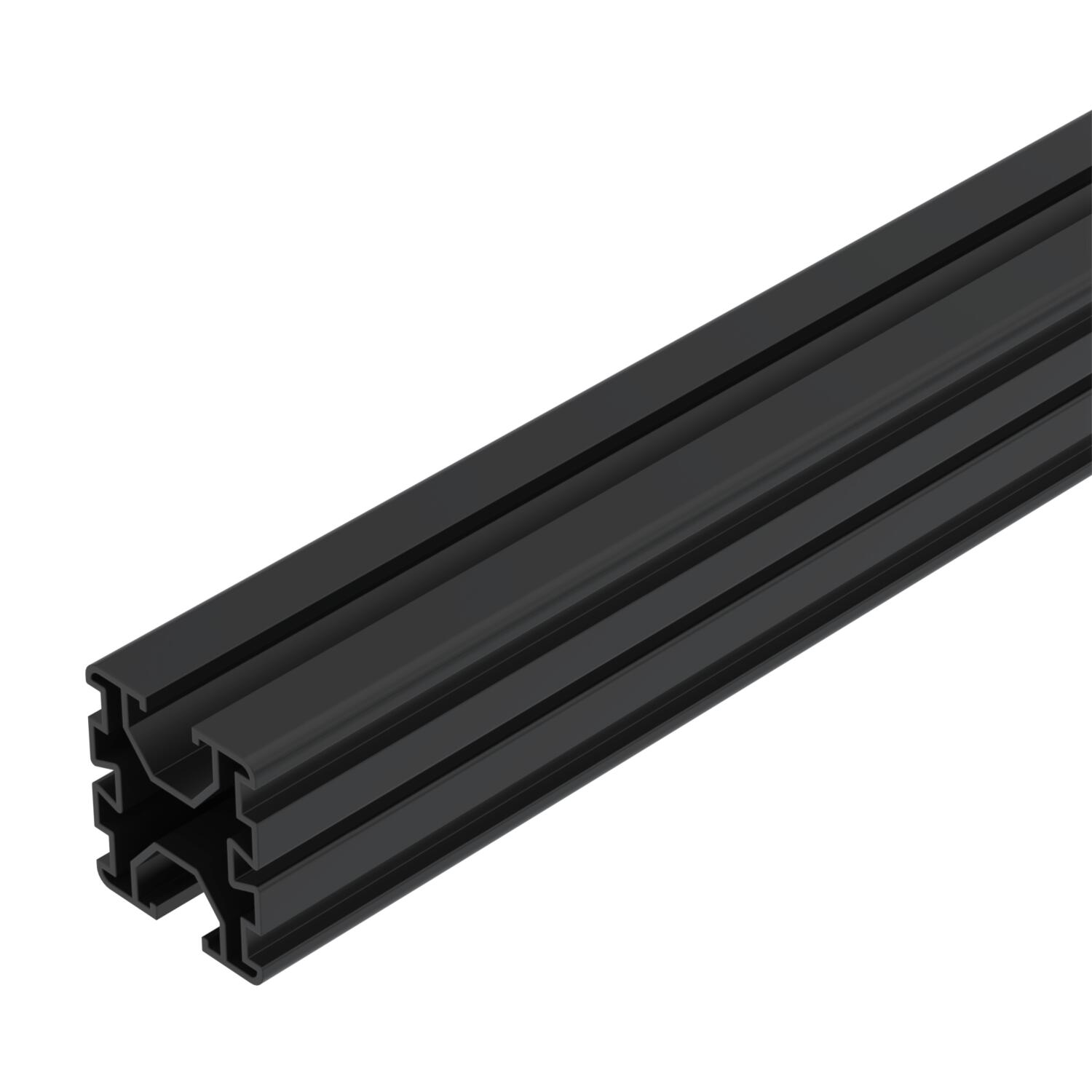

Support profile for PV module mounting

Item no. 5900412 | EAN 4012197381578

Item no. / Types

Length

Product description

Product description

Support profile to mount photovoltaic modules on flat and pitched roofs. Flat roof mounting in combination with UniBase universal stand and STK and STL short and long supports. Lockable fastening of the profile on the stand with UniBase AMP adapter. Pitched roof mounting in combination with universal DHU roof hook. Lockable fastening of the profile on roof hooks. Screwable connection of multiple support profiles with LV 45 straight connectors and KV 45 cross-connectors.

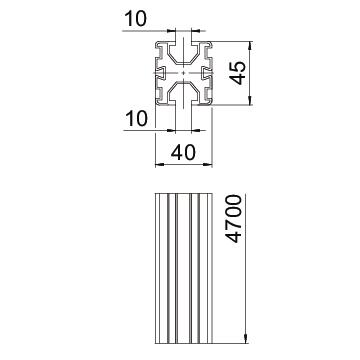

Technical data

Technical data

Cable duct optional	no
Cable duct, integrated	no
Colour	Signal black; RAL 9004
Height	45 mm
Length	4700 mm

Material	Aluminium
Section modulus Sx	3680 mm³
Section modulus Sy	3760 mm³
Surface	Anodised
Width	40 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
TP 45 2350 ALU	2350 mm	5900405	piece	1 piece
TP 45 4700 ALU	4700 mm	5900410	piece	1 piece
TP 45 4700 ALU S	4700 mm	5900412	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

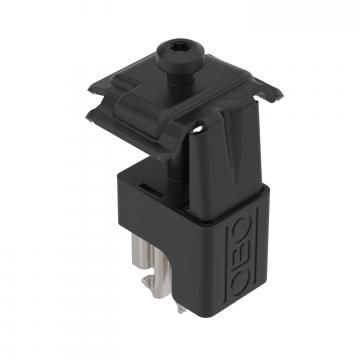

Universal clamp for PV module mounting	KLU A2 S	5901012	piece	1 piece

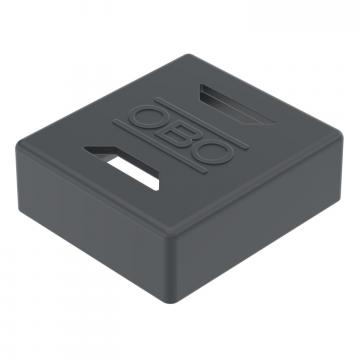

Support profile end cap	EK 45 S	5901720	piece	1 piece

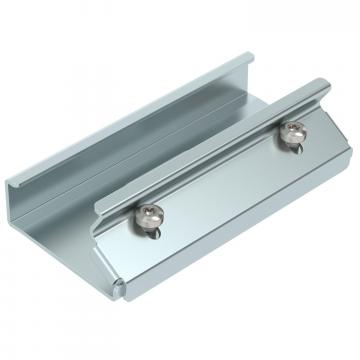

Straight connector for TP support profile	LV 45 DD	5901210	piece	1 piece

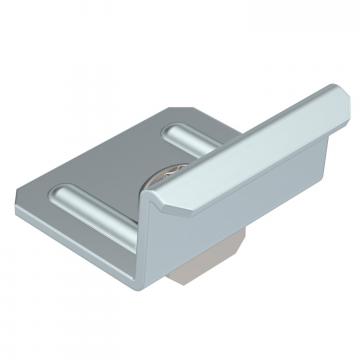

Cross-connector for TP support profiles	KV 45 DD	5901250	piece	1 piece

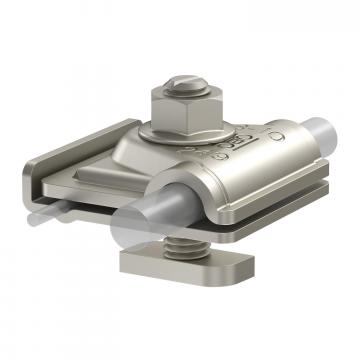

Earthing terminal for PV mounting systems	249 PV10 6-50V2A	5051520	piece	8 piece
