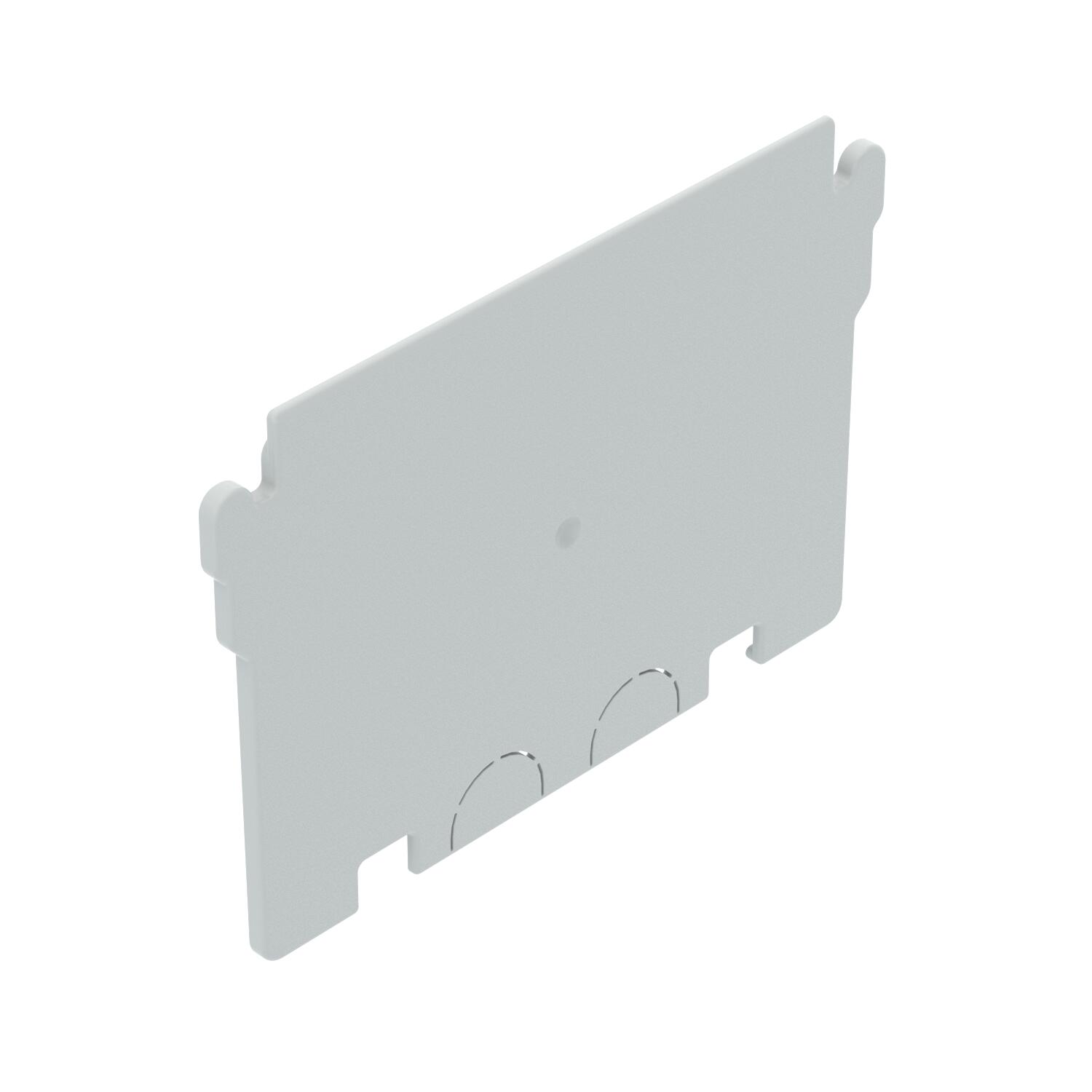

Separating element juncion box 76.5 | 16 | Polypropylene

Separating element juncion box

Item no. 2006156 | EAN 4012197419936

Item no. / Types	2006156 / SB TR

Width	76.5 mm

Height	16 mm

Material	Polypropylene

Product description

Product description

Separating element for the normative separation of circuits/current types as well as for the separation of strong and weak-current technology. Fastening with screws on the housing bottom part UT01/T100.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0452 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035

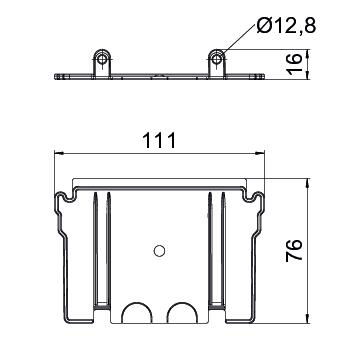

Dimension	111x76,5x16
Halogen-free	yes

Height	16 mm
Length	111 mm
Material	Polypropylene
Width	76,5 mm

All types

All types

Types	Width	Height	Material	Item no.	Quantity	SSU
SB TR	76.5 mm	16 mm	Polypropylene	2006156	piece	5 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Lower part junction box, with fastening element	UT01+SB BE	2006010	piece	1 piece
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805	piece	1 piece
Fastening element for junction boxes	SB BE	2006150	piece	10 piece
Pluggable cover, unequipped	D01 L	2006040	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060	piece	1 piece
Pluggable cover, unequipped	D02 L	2006080	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094	piece	1 piece
Pluggable cover, equipped, OBO WINSTA MIDI	D02 2x5p DALI WG	2006096	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098	piece	1 piece
Pluggable cover, equipped, Modul 45	D03 2MSD WS	2006116	piece	1 piece
Junction box T100, 2 Modul 45 sockets in cover, 1-pin	T 100 2MSD WS	2007821	piece	1 piece
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825	piece	1 piece
Pluggable cover, unequipped	D04 L	2006130	piece	1 piece
DATA module, pluggable cover	SB DT1	2006180	piece	1 piece
DATA module, pluggable cover	SB DT2	2006182	piece	1 piece
DATA module, pluggable cover	SB DT3	2006184	piece	1 piece
DATA module, pluggable cover	SB DT4	2006186	piece	1 piece
DATA module, pluggable cover	SB DT5	2006188	piece	1 piece
